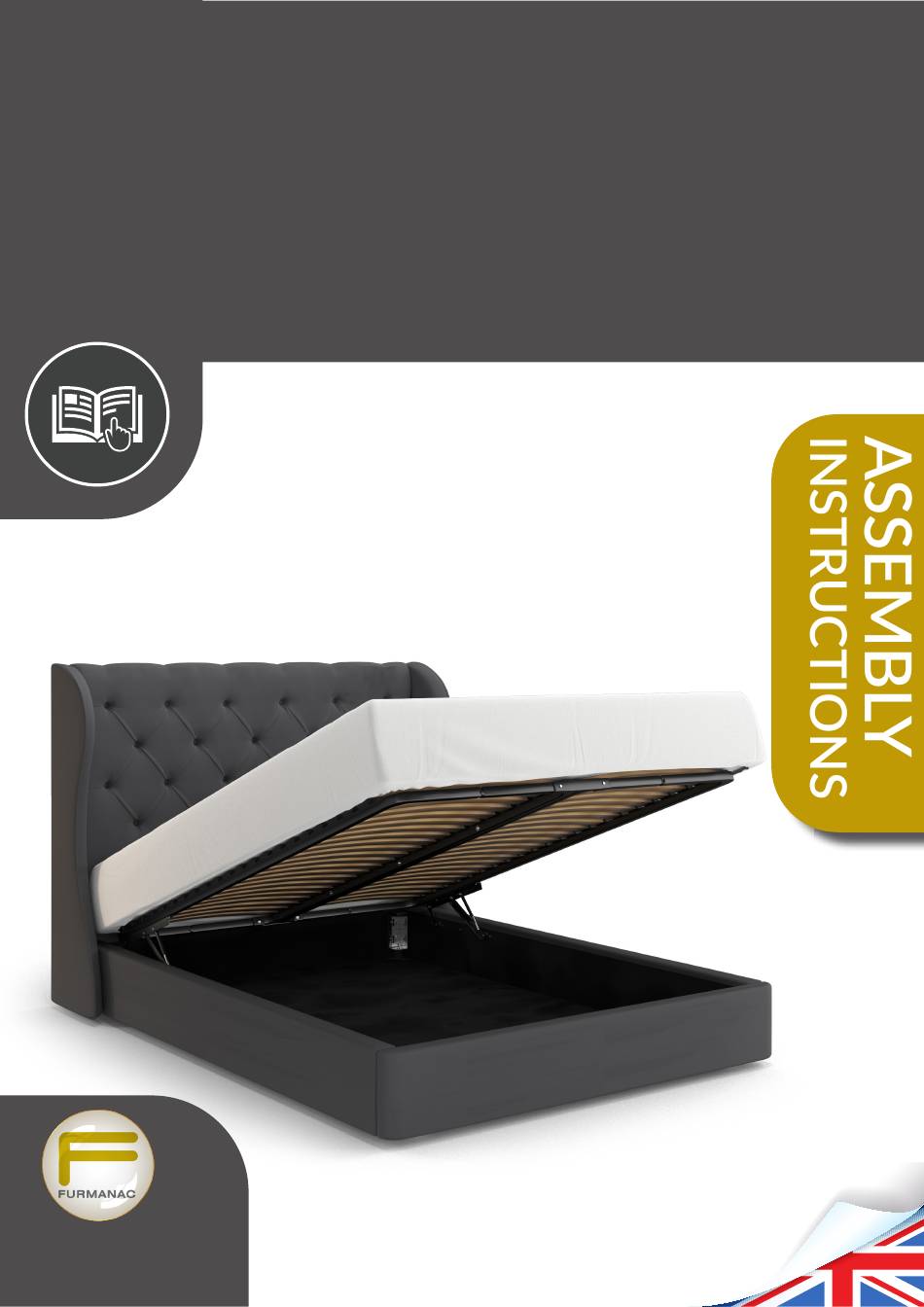

- Page 1 MANUAL OTTOMAN Easy set up instructions for your new ottoman bed THIS INSTRUCTION PACK IS UNIVERSAL ACROSS THE RANGE THE IMAGE USED MAYBE DIFFERENT FROM THE ONE IN PACK VERSION 11 Correct at time of publication 11/08/22 BOM CODE - LEAFLET - OT-T2-V2...
-
Page 2: Safety Features
Introduction and components Unpack in the room the bed is intended to be used, remove all packaging and dispose of carefully, keeping polythene out of the reach of children. CONTENTS: • • • 3 x Hex Bolts, Washers & Nu •... - Page 3 CONTENTS CHECK LIST - BED ASSEMBLY Please check the pack contents before attempting to assemble this product. If any components are missing, please contact the retailer from whom you bought this product. NEW CONSTRUCT POWER OTTOM OTTOMAN NSTRUCTION FIXING-BOLT-M8X50-HEX-FULL = x4 Ottoman BATTERY-9V = X2 (FOR STATIC TO HINGE)
- Page 5 The hinge brackets will already be fixed into place. Please Note: You are required to follow the steps as detailed to make sure that the bed is correctly set up. Left Hand Bracket 1 . Remove the M8 Nut on position A 2 .
- Page 6 Please Note: this step will require two people Connect the side rails to the head board and requires lifting. sliding the bolts into the brackets and tightening with spanner or appropriate socket set. HEAD BOARD PULL LATCH TIGHTEN TOGETHER ONTO BRACKET WITH SPANNER ** Do not tighten bolts to one side until step 7 below.
- Page 7 Please Note: this step will require two people and requires lifting. . Lower the first base board into place with the angled cut corners against the head board (as shown above). . Lower the second base board into place with the angled cut corners against the head board (as shown below).
- Page 8 Please Note: this step will require two people and requires lifting. With help, lower the slatted base onto the two rails (attached to the hinge). Make sure that the welded retaining brackets are at the headboard end. Please Note: The hinge bracket has been pre-threaded.
- Page 9 YOUR BED WILL ONLY LOWER ONCE THE MATTRESS IS IN PLACE Please Note: this step will require two people and requires lifting. Lower your mattress onto the slatted frame. ** Recommended mattress weight to be at least 45kg to allow for pistons to work properly.
-
Page 10: Making A Claim
For other manufacturing faults within 7 years, we will discuss with the retailer whether a repair by a Furmanac technician or replacement will be offered. Whether your Furmanac bed is repaired or replaced will be at our sole discretion. -
Page 11: Additional Warning
Major cleaning of fabric must be conducted by an upholstery specialist A multitude of fabrics consisting of different materials, fibres and constructions make up the Furmanac swatches. As a result of this it is difficult to provide generalised cleaning instructions, therefore it is recommended that any major cleaning is conducted by an upholstery specialist.
