LumaPro 39UU86 Operating Instructions

Operating Instructions
Please read and save these instructions. Read through this owner's manual carefully before
using product. Protect yourself and others by observing all safety information, warnings, and
cautions. Failure to comply with instructions could result in personal injury and/or damage to
product or property. Please retain instructions for future reference.
Description
LED Bullet Flood Lights provide energy-efficient, directional lighting for landscape, facade
and outdoor signage. Sealed to keep out dirt, bugs and moisture, the Bullet is constructed
with a precision die-cast aluminum housing and tempered, shatter-resistant glass for
durability.

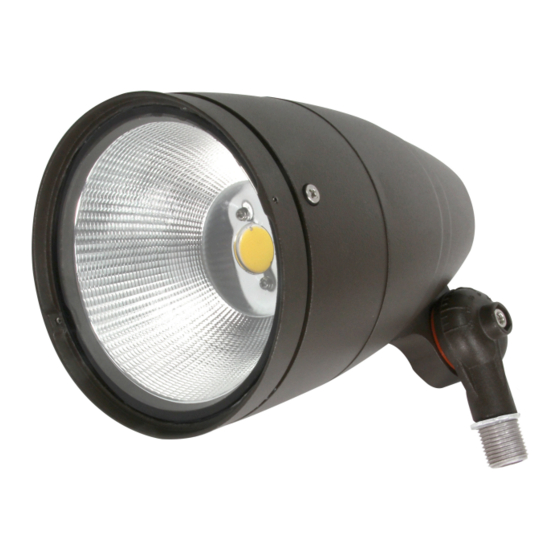

Picture is for illustration purposes only. Your model may vary.
CONSTRUCTION
• Die cast aluminum body
• Bronze polyester powder coat finish
• Sealed to keep out dirt and bugs
• Tempered shatter resistant glass lens
• Weep hole located on lower lip of fixture to prevent buildup
• ½" NPT threaded arm with locking swivel
Specifications and Dimensions
Model Volts
39UU86 120-277V
39UU89 120-277V
39UU96 120-277V
39UU97 120-277V
LED Bullet
Floods
Watts CCT Lumens
30W 5000K
30W 3000K
12W 3000K
12W 5000K
39UU86, 39UU89, 39UU96, 39UU97
CRI
2,500 75
2,115 75
790 75
810 75
Dimensions (in)
H" x L" x D"
6.9" x 8.3" x 6.2"
6.9" x 8.3" x 6.2"
7.8" x 10" x 8.1"
7.8" x 10" x 8.1"
