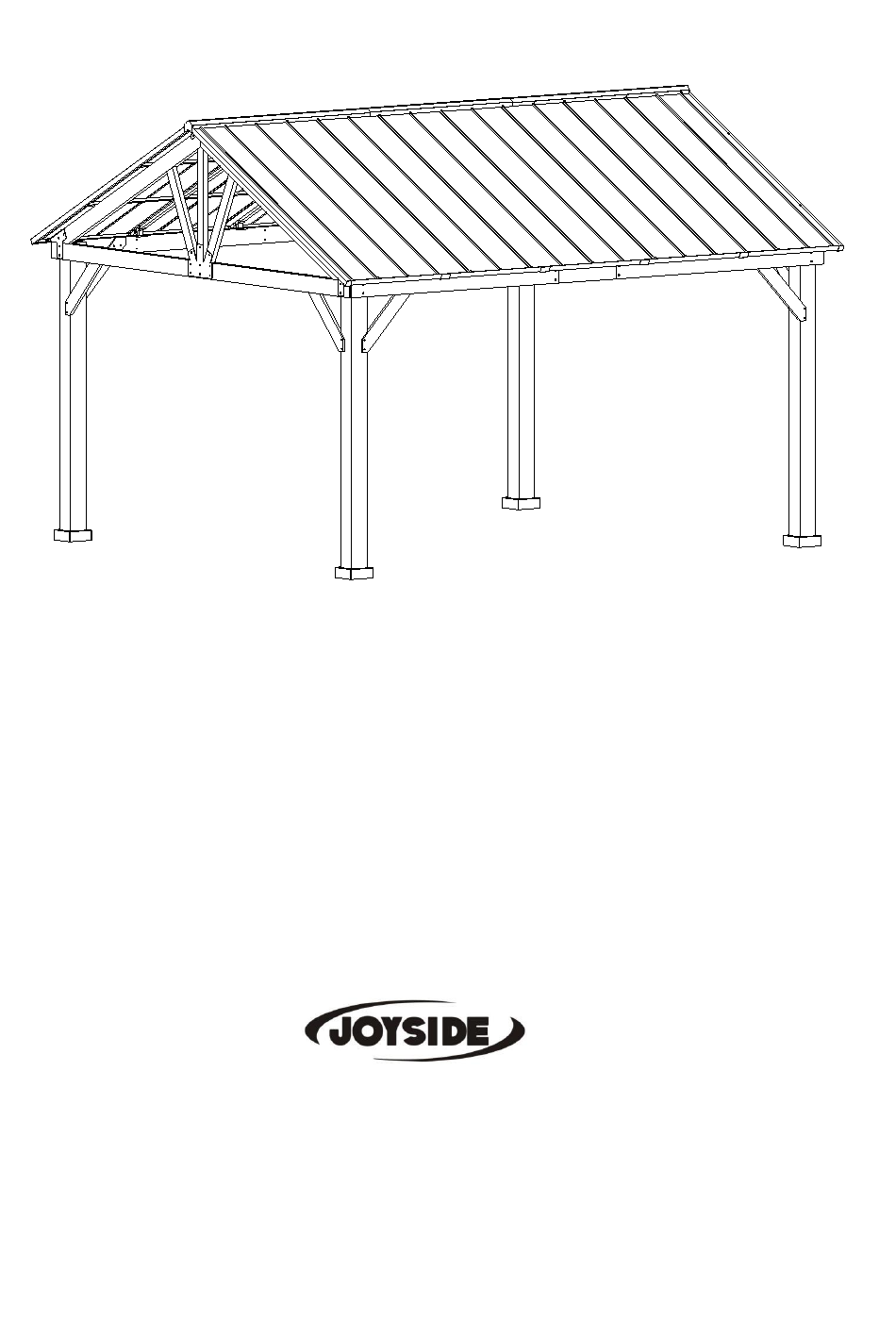

- Page 1 INSTRUCTION MANUAL JOYSIDE Hardtop Gazebo Series A05 IF YOU PURCHASED THE GAZEBO ONLINE AND HAVE ANY QUESTIONS OR CONCERNS PLEASE CONTACT US WITH EMAIL OR MESSAGE service@joysidefurniture.com +1 628-263-4608 (Message)
- Page 2 2 / 30 Part List Description Label Part Image Outer short side left long beam Outer short side right long beam Outer long side middle long beam Inner Middle Beam Inner Short Beam Inner beam with long sides Post Arc Support 1 Arc Support 2 Triangular Support Beam...
- Page 3 3 / 30 Triangular Connector Roof Beam Connector Top beam support Reinforcer Top beam lower connector Big Roof Beam Big Roof Middle Beam Center sill Middle Beam Lower Connector Hook Roof Lower Tube 1 Roof Lower Tube 2 Roof Lower Tube 3 Roof Lower Tube 4 Roof Lower Tube 5 Big Roof Side Tube 1...
- Page 4 4 / 30 Middle Roof cover The side Roof cover Press Panel 1 Press Panel 2 Press Panel 3 Side cover sheet press plate Middle Cover press plate Steel Pin Catch Roof Side Cover...
- Page 5 5 / 30 Hardware Pack Label Description Part Image Bolt M10*205 Flat Washer Screw M5*40 Nut M6 Screw M5*30 Bolt M6*15 Bolt M6*75 Bolt M8*35 Screw M8*35 Bolt M6*55 Bolt M8*25 Non-slip Nuts M10...
- Page 6 6 / 30 Flat Washer Flat Washer Screw M10*80 Stake Φ8*180 Bolt M6*35 M3 Drill Non-slip Nuts M8 Bolt M8*50 Wrench M6 Allen Key Wrench M8 Wrench...
- Page 7 7 / 30 <1> 08 4x B 4x C 4x M5x30 EE 16x...
- Page 8 8 / 30 <2> 05 4x 07 4x 18 4x M8x25 KK 16x...
- Page 9 9 / 30 <3> 01 2x 02 2x T 2x M5x40 M8x25 CC 8x KK 4x...
- Page 10 10 / 30 <4> 01 4x 16 2x M8x25 KK 8x...
- Page 11 11 / 30 <5> M5x40 CC 72x...
- Page 12 12 / 30 <6> LL 4x M10x80 M10x205 AA 4x NN 8x OO 4x...
- Page 13 13 / 30 <7> C1 2x C2 2x LL 4x M10x80 M10x205 AA 4x NN 8x OO 4x...
- Page 14 14 / 30 <8> d1=d2 10 4x Rt 90 The post is 90 degrees vertical, and then the Arc Support is assembled. 11 4x M8x35 M8x35 MM 16x II 16x HH 16x...
- Page 15 15 / 30 <9> 21 4x 22 2x 23 4x S 12x C4 2x UU 6x M5x30 M8x50 EE 16x...
- Page 16 16 / 30 <10> M8x50 UU 8x...
- Page 17 17 / 30 <11> F3 2x F5 1x C5 2x C8 2x M6x75 BB 8x GG 8x DD 8x...
- Page 18 18 / 30 <12> M6x15 FF 2x...
- Page 19 19 / 30 <13> H1 8x Please do not lock the screws for part I in this assembly step. There is a prompt to assemble the screws in Step 18. DD 16x M6x15 M6x55 JJ 16x BB 16x FF 16x...
- Page 20 20 / 30 <14> C6 4x P 1x M6x35 QQ 16x...
- Page 21 21 / 30 <15> N1 12x M6x15 FF 24x...
- Page 22 22 / 30 <16> M3 2x M4 2x N2 8x M5x30 M6x15 EE 8x FF 20x...
- Page 23 23 / 30 <17> L5 2x L6 2x L7 2x M6x15 L9 2x L8 2x FF 20x...
- Page 24 24 / 30 <18> C7 4x M5x30 M6x15 EE 40x FF 4x...
- Page 25 25 / 30 <19> P4 4x P3 2x R4 1x M6x35 QQ 3x...
- Page 26 26 / 30 <20> P4 4x R5 1x M6x35 QQ 2x...
- Page 27 27 / 30 <21> P4 4x P3 2x R4 1x M6x35 QQ 3x...
- Page 28 28 / 30 <22> Q1 4x Q2 4x Q3 2x M6x15 FF 32x...
- Page 29 29 / 30 <23> U1 4x M6x15 FF 8x...
- Page 30 30 / 30 <24> Noting: Please purchase the anchors from local hardware store if anchor the gazebo to concrete or wood. （ Pls use expansion bolts to fix on the concrete） D8x180 PP 8x...
