Joyside A04 Series Instruction Manual

Double roof hardtopgazebo
Hide thumbs

Advertisement

Table of Contents

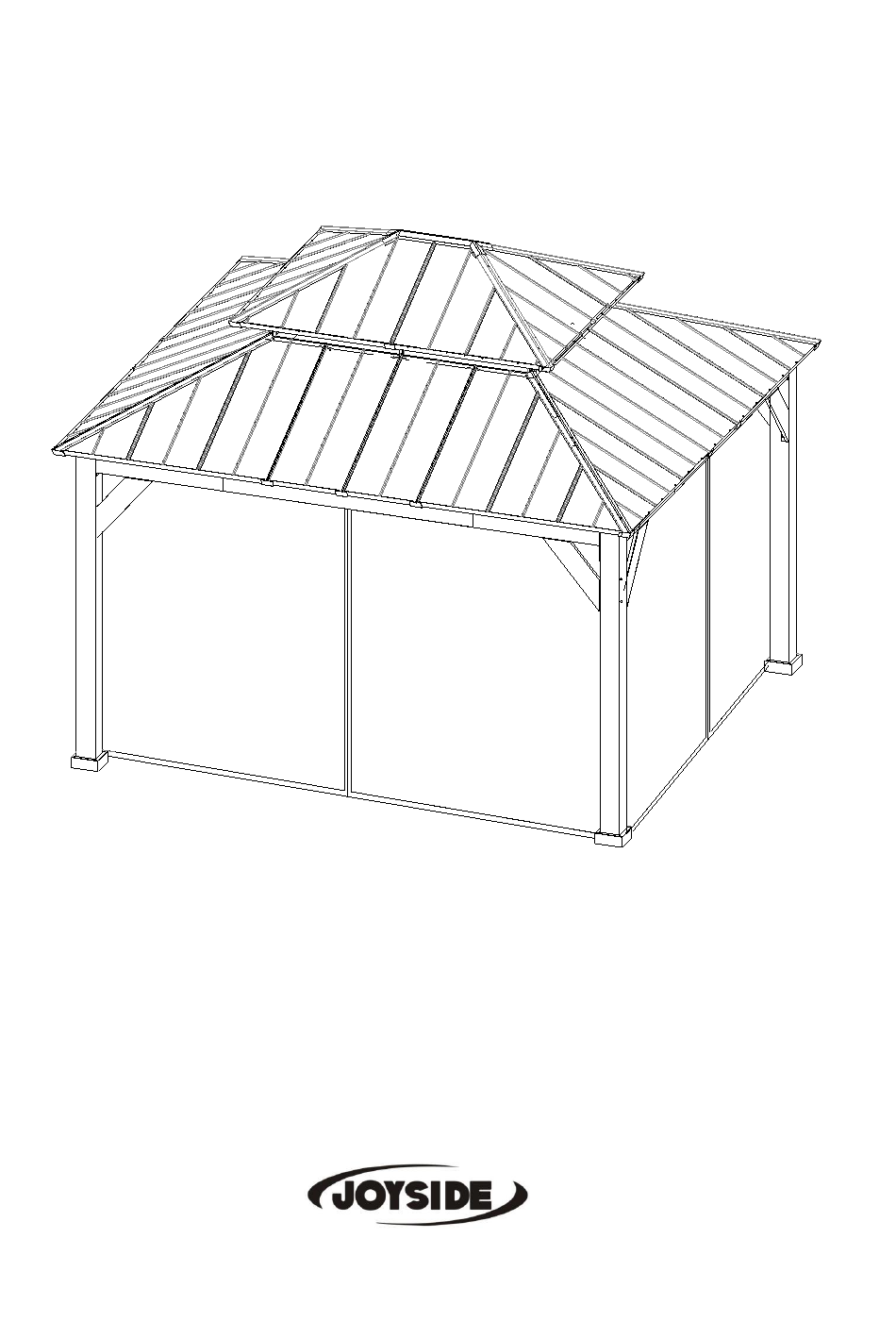

INSTRUCTION MANUAL
JOYSIDE Double Roof Hardtop Gazebo
Series A04
IF YOU PURCHASED THE GAZEBO ONLINE AND HAVE ANY
QUESTIONS OR CONCERNS
PLEASE CONTACT US WITH EMAIL OR MESSAGE
service@joysidefurniture.com
+1 628-263-4608 (Message)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A04 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Joyside A04 Series

Summary of Contents for Joyside A04 Series

  • Page 1 INSTRUCTION MANUAL JOYSIDE Double Roof Hardtop Gazebo Series A04 IF YOU PURCHASED THE GAZEBO ONLINE AND HAVE ANY QUESTIONS OR CONCERNS PLEASE CONTACT US WITH EMAIL OR MESSAGE service@joysidefurniture.com +1 628-263-4608 (Message)
  • Page 2 2 / 30 Part List Description Label Part Image Post Right side beam Left side beam Short side middle beam Long side middle beam Base Base Cover Small Roof Connector Big Roof Long Connector Tube Big Roof Short Connector Tube Large top frame corner connector Small Roof Oblique Beam...
  • Page 3 3 / 30 Slanting Beam Connector Middle Beam Connector Beam connector Hook Small Roof long side Beam Small roof long side left lower L9-1 blocking beam Small roof long side right L9-2 lower blocking beam Small Roof Short side Beam Small roof Short side under L10-1 blocking beam...
  • Page 4 4 / 30 Small Roof Left Panel Small Roof Right Panel Small top short side middle panel Small top long side middle panel Small top long side right middle cover panel Left Big Roof Small Panel Left Big Roof middle Panel Left Big Roof big Panel...
  • Page 5 5 / 30 Big Roof Middle Panel Right Big Roof big Panel Right Big Roof middle Panel Right Big Roof Small Panel Small Roof Middle Beam Cap Small Roof Inclined Beam Inclined Beam Cap mound layer 1 mound layer 2 mound layer 3 Mosquito netting Abat vent...
  • Page 6 6 / 30 Hardware Pack Label Description Part Image Flat Washer M6 Non-slip Nuts Bolt M6*20 Bolt M6*15 Bolt M6*55 Stake Φ8*180 Bolt M6*35 Plastic Ring Wrench M6...
  • Page 7 7 / 30 <1> B1 B2 B1 4x STEP1 B2 4x B3 2x B4 2x STEP2 K 16x M6x20...
  • Page 8 8 / 30 <2> STEP1 STEP2 STEP3 M6x20...
  • Page 9 9 / 30 <3> STEP2 STEP1 M6x20...
  • Page 10 10 / 30 <4> STEP2 STEP1 M6x20...
  • Page 11 11 / 30 <5> STEP2 STEP1 M6x20...
  • Page 12 12 / 30 <6> STEP1 STEP2 E3 E1 E1 2x E2 2x STEP3 G 2x M6x15 M6x20 E3 4x...
  • Page 13 13 / 30 <7> M6x55...
  • Page 14 14 / 30 <8> STEP1 STEP2 G 2x M6x55 M6x20...
  • Page 15 15 / 30 <9> STEP2 H1 10x STEP1 M6x55 M6x20...
  • Page 16 16 / 30 <10> STEP3 STEP4 STEP1 D 1x F 4x STEP2 F1 2x M6x15 M6x55 M6x20...
  • Page 17 17 / 30 <11> STEP2 STEP1 STEP3 L9 4x L10-1 L9-1 L9-2 L10-1 L9-1 L9-2 STEP4 L9-1 L9-1 L9-2 L9-2 M6x20 L10-1...
  • Page 18 18 / 30 <12> M6x20...
  • Page 19 19 / 30 <13> STEP2 STEP1 R4 1x STEP3 R5 4x P 1x M6x35 M6x55...
  • Page 20 20 / 30 <14> M6x20...
  • Page 21 21 / 30 <15> STEP1 STEP2 M6x20...
  • Page 22 22 / 30 <16> Q4 6x...
  • Page 23 23 / 30 <17> STEP2 STEP1 Q3 4x Q5 4x M6x20...
  • Page 24 24 / 30 <18> STEP2 Q2 4x STEP1 Q6 4x M6x20...
  • Page 25 25 / 30 <19> STEP2 Q1 4x STEP1 Q7 4x M6x20...
  • Page 26 26 / 30 <20> R6 4x M6x35...
  • Page 27 27 / 30 <21> S1 10x S3 8x M6x20...
  • Page 28 28 / 30 <22> W 1x STEP1 STEP2 STEP4 STEP3...
  • Page 29 29 / 30 <23> X 1x STEP1 STEP3 STEP2...
  • Page 30 30 / 30 <24> Noting: Please purchase the anchors from local hardware store if anchor the gazebo to concrete or wood. （ Pls use expansion bolts to fix on the concrete） D8X180...
