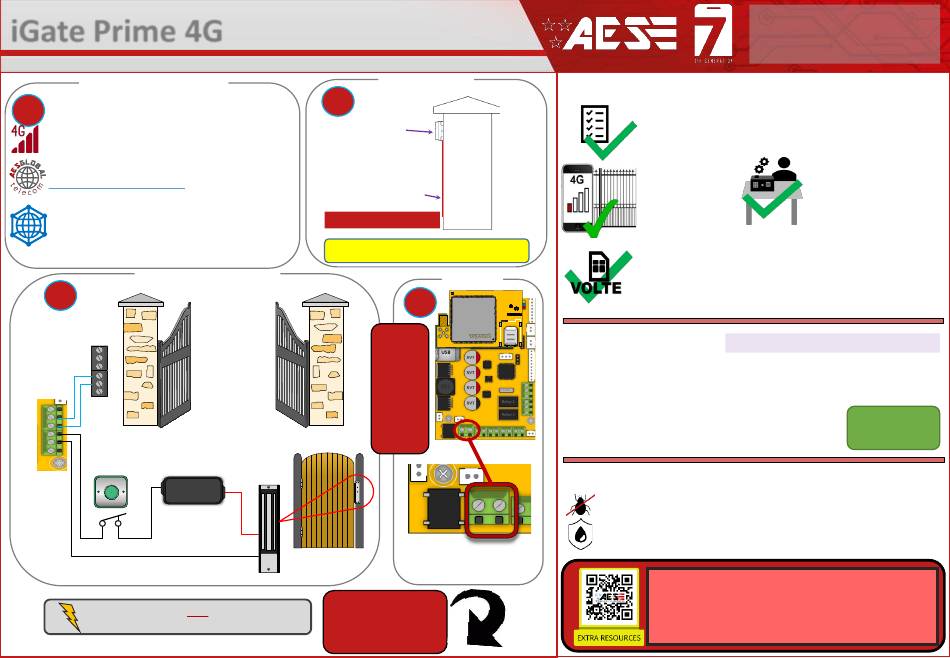

AES iGate PRIME 4G Manual

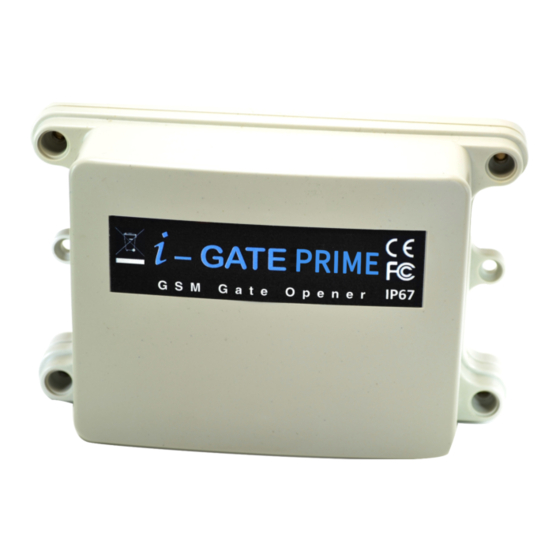

iGate Prime 4G
* ALWAYS TEST THE UNIT ON SITE BEFORE

SIM Preparation

Ensure you read all instructions before continuing.
1
The SIM cards provided need activated before
use. Follow the instructions provided or visit our
telecoms website for more details:
www.aesglobaltelecom.com
Different networks use different APNs,
and these must be set correctly for full
operation. See Details overleaf on
setting a new APN.

Relay Connections

4
Gate
Controller
Relay1
N/C
COM
N/O
N/C
COM
N/O
Optional
Separate
Exit Button lock PSU
Relay 2
PRESS
TO EXIT
N/C
LIGHTNING PRONE AREAS MUST USE SURGE PROTECTION
FOR POWER SUPPLY!
1
- Advanced GSM Switch
INSTALLATION TO AVOID RE-STOCKING FEE *

Site Wiring

2
iGate Enclosure
(Install at height to allow the
internal antenna to find signal.)
DC Power Cable
(1.0mm2 – 8m MAX)
Keep PSU as close to the unit as possible
& Do not share PSU with other devices.
Note:
Can be purchased separately.
Driveway
Power will
Gates
provided
via the
SURGE
protection
PCB also
included
Magnetic Lock
See overleaf for
more PCB details
Turn Over
See full T&C's on our website
SITE SURVEY
PSU not supplied.
24v DC 1.2A peak.
Power
3
POWER CABLE
be
TIP:
to power the unit.
Please use the following cable:
Up to 2 metres ( 6 feet )
Up to 4 metres ( 12 feet ) – Use minimum 0.75mm
Up to 8 metres ( 24 feet ) – Use minimum 1.0mm

INGRESS PROTECTION

DC24v IN
(Polarity Protected)
Find all of our support options such as Web Chat,
Full Manuals, Customer Helpline and more on
Please read this entire manual before installing this
product. A full comprehensive manual is available on
our website for additional information.
Ensure there is good
4G signal on site. 4G
units will fall back to
3G service in some
countries.
This product requires a regular voice & SMS SIM card.
Do not use a data only SIM, as this will not work in the unit.
KEEP POWER SUPPLY AS CLOSE AS POSSIBLE.
Most technical calls received are due to installers using CAT5 or alarm cable
NEITHER are rated to carry enough power! ( 1.2amp peak )
– Use minimum 0.5mm
We recommend sealing all entry holes for prevention of insects that can
cause issues with a risk of shorting out components.
To maintain the IP55 rating please follow the sealing instructions included.
(also available online)
NEED MORE ASSISTANCE?
+1 (321) 900 4599
SCAN THIS QR CODE TO BE BROUGHT TO OUR RESOURCES PAGE.
VIDEOS | HOW-TO GUIDES | MANUALS | QUICK START GUIDES
STILL HAVING TROUBLE?
our website:
WWW.AESGLOBALUS.COM
Set up on a bench in workshop
BEFORE going to site.
Program the unit in the comfort
of your work bench and call
technical support should you
have any questions.
Power
2
( 18 gauge )
Consumption:
2 ( 16 gauge )
Standby = 80mA
2 ( 14 gauge )
Peak = 1.2A
