Summary of Contents for AES IntelliNet 7245

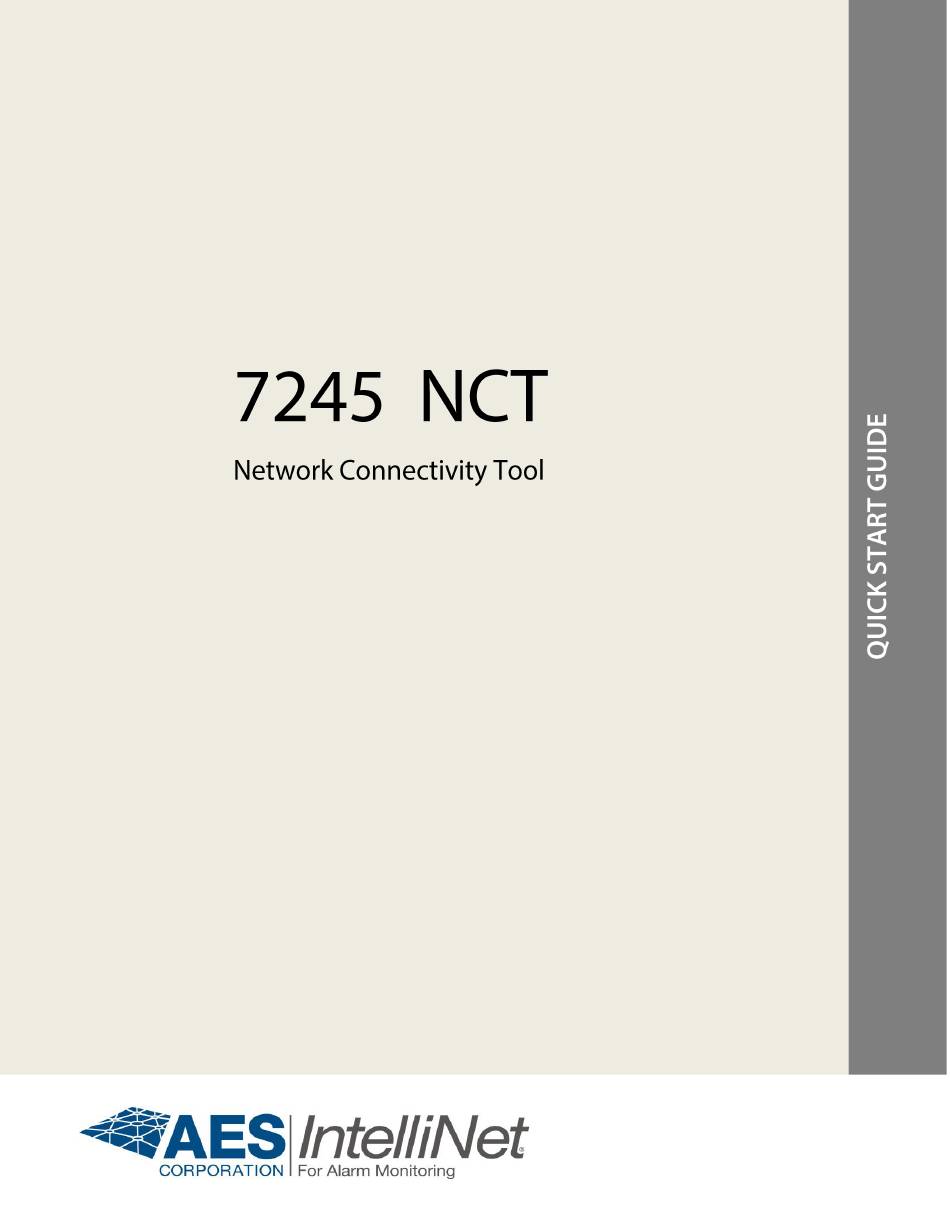

- Page 1 P/N: 40-7245-NCT...
- Page 2 The NCT needs to be correctly configured to operate with your IntelliNet network. The operating frequency is set as part of the ordering process. Similarly to AES subscribers, the ID and Cipher Code must then be configured by the user. The ID must be a unique 4-digit hex value and be a valid ID on your network.
-
Page 3: General Operation
Battery at 20% capacity – recharge soon. Two blinks Radio Offline No communication with radio Three blinks Aux Power Fail Radio power supply failure Four blinks Battery Low Low battery – recharge immediately Continuous fast blink P/N: 40-7245-NCT ©2014 AES Corporation, Peabody, MA USA... -
Page 4: Pictorial Diagram
5 Charging Connect ONLY the AES supplied Li-ion smart charger to the charging port at the base of the NCT. The LED on the external charger will display red during the charging stage, and green when fully charged. 6 Pictorial Diagram P/N: 40-7245-NCT ©2014 AES Corporation, Peabody, MA USA... -
Page 5: Test Diagnostics
Test 14: All segments ON Test 15: Test AUX POWER (OK/FAIL) Test 16: Battery level test (OK, WARNING, LOW) Test 17: Radio status report Test 18: Radio transmit test Test 19: Restart P/N: 40-7245-NCT ©2014 AES Corporation, Peabody, MA USA...
