Module Electronic CHS-06.01 Manual

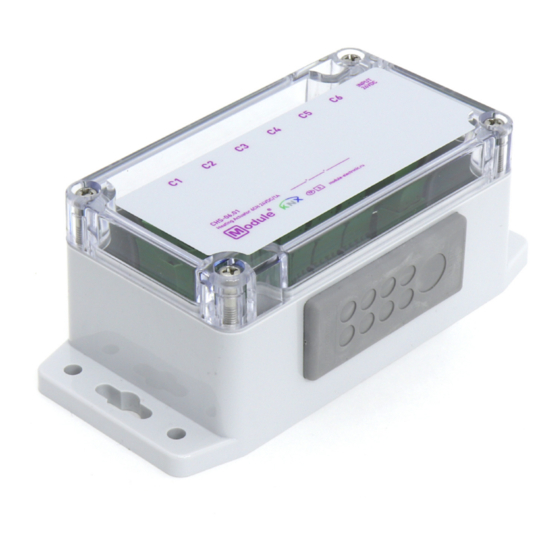

Heating actuator
Hide thumbs
1
2
3
4

Advertisement

Table of Contents

PASSPORT
МГРЛ-27.12.1931-005.02 ПС
page 1
HEATING ACTUATOR
CHS-06.01

BASIC INFORMATION

The heating actuator is designed to control water heating systems with thermoelectric valves with a supply
voltage of 24V DC.
• 6 independent outputs 24V DC
• Ability to connect up to 3 valves per output
• LED indication of output status
• Valve NO / NC operation mode selection
• Function of protection of valves against «sticking»
• Short circuit and overload protection
• Saving settings during a KNX power failure
• Power supply via KNX bus
• Valves powered by external 24V DC power supply
• Waterproof housing IP 64
Module Electronic LLC
module-electronic.ru, info@module-electronic.ru
phone: +7-495-150-27-25

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CHS-06.01 and is the answer not in the manual?

Questions and answers

Related Manuals for Module Electronic CHS-06.01

Summary of Contents for Module Electronic CHS-06.01

  • Page 1 • Short circuit and overload protection • Saving settings during a KNX power failure • Power supply via KNX bus • Valves powered by external 24V DC power supply • Waterproof housing IP 64 Module Electronic LLC module-electronic.ru, info@module-electronic.ru phone: +7-495-150-27-25...
  • Page 2 2 SPECIFICATIONS Device model CHS-06.01 Outputs (control channels) Number of outputs Output type MOSFET Rated current per output 1A/24V DC Number of connected valves to the output up to 3 pcs. Short circuit protection Overload protection Cross-section of the connected wire to the screw 0,5-4mm²...
  • Page 3 PASSPORT CHS-06.01 МГРЛ-27.12.1931-005.02 ПС page 3 GENERAL VIEW - KNX connector - Programming button - Programming LED - Input 24В DC - Outputs 24В DC - Output status indicator LED - External power indicator LED - Cable glands before entering the cable Make a puncture...
  • Page 4 page 4 SAFETY INSTRUCTIONS ATTENTION! Installation and connection of the device to the mains must only be carried out by qualified personnel! Be sure to turn off the power before installing or removing the device! Even when the device is turned off, the output terminals can be live! Do not connect to the outputs a load that exceeds the recommended values! The design of the device meets the requirements of electrical safety according to GOST 12.2.007.0-75.
