hyfire TAURUS TAU-TH-01 Quick Start Manual

TAU-TH-01
Hyfire Taurus
Heat Detector
Available also in black plastic: TAU-TH-01-BL

IMPORTANT TO CONSIDER

When mounting a wireless device a comprehensive radio survey
should have been carried out to establish the location that provides
the best coverage and optimum reach. Taking into consideration the building
structure and materials, the survey identifies the wireless infrastructure
required and product locations for optimum performance, identifying
any factor that could prevent radio integrity.
Avoid fixing or mounting the unit close to the following:
• Equipment that utilises large electrical currents
• Large metal objects or structures
• Fluorescent lighting fittings
• Metal ceiling structures
• IT cabling.
Keep 2 meters minimum spacing between other wireless equipment
in the area to avoid signal interference.
EN54 approved environmental temperature range is -10°C to +55°C

UNBOXING

• When unboxing the detector you will find the unit and its mounting base.
• This comes with pre-formed mounting holes to mount the detector base and a securing screw
on the base to ensure there is no unwanted removal.
For more information, please refer to the complete product manual.
Unit B12a, Holly Farm Business Park, Honiley, Warwickshire, CV8 1NP
T: +44 (0)1926 485282, E: info@hyfirewireless.co.uk, W: www.hyfirewireless.com

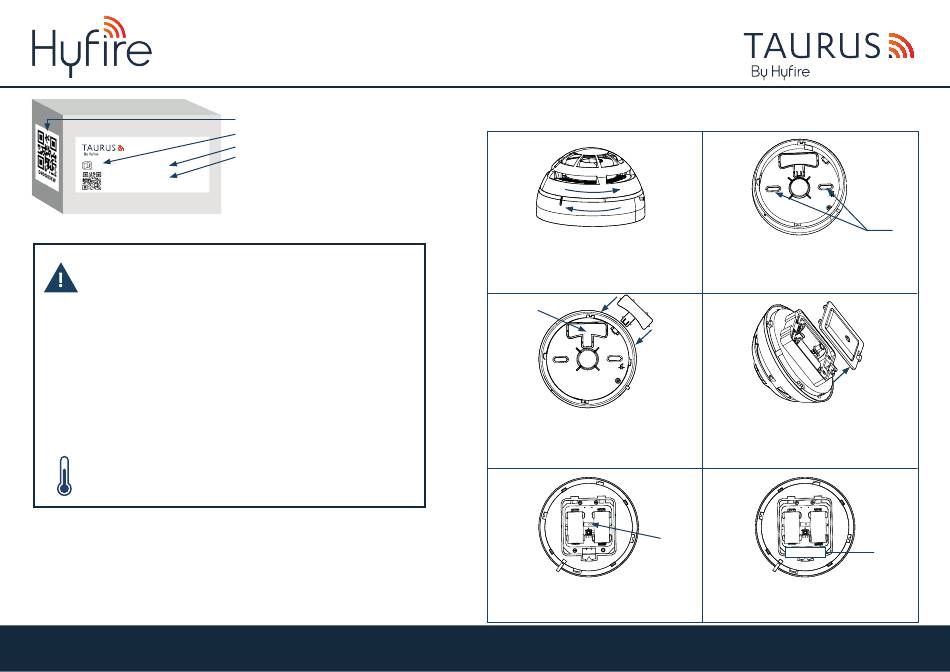

HYFIRE TAURUS HEAT DETECTOR
QUICK START GUIDE

THE BOX

INSIDE THE BOX

Taurus QR code • 1 x Heat Detector
Manual QR code with mounting base
Product code • 2 x CR123A batteries
Product name • 1 x Quick start guide
• 1 x QR code
TAU-TH-01

MOUNTING STEPS

Proceed as follows to complete the device installation.
• Remove the detector's dust cover, intended to protect
the unit during shipping.
• Remove the detector from the base twisting
anticlockwise.
REMOVABLE
TAG
• A plastic pop out tag is removable from the base
to enable you to label the address of the detector,
prior to fixing to the ceiling: pop out the device label tag
from the base and insert it into the side.
• Screw the base to the ceiling using all fixing holes
and appropriate-sized screws.
Ensure the programming switch in the base of the detector
is in position ON.
1
UNLOCK
• Locate the mounting holes and mark them using a pencil
on the desired surface you are drilling.
• Using a suitable-sized drill bit (6 mm) drill the marked
screw points on your chosen surface.
• Ensure you use the correct fixings for the type of surface
you are mounting to.
3
Remove the battery compartment cover on the base
on the detector.
5
SWITCH
ON
Remove the batteries' insulating tab ensuring
the batteries are kept in their lodgement.
2
MOUNTING
HOLES
4
6
REMOVE
INSULATING
TAG
L50-DT-1400 (Rev_P.4)
