hyfire Taurus Series Quick Start Manual

GENERAL DESCRIPTION

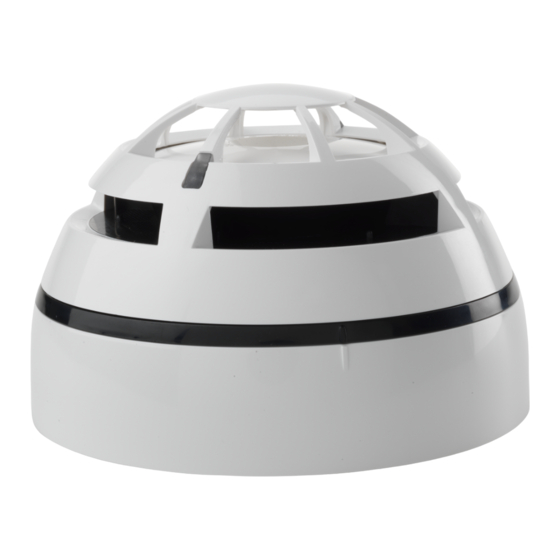

The TAU-TH-01 Taurus series detector samples the environmental temperature in the protected area; when the environmental tem-
perature level or variation rate exceeds a certain degree, a fire alarm message is sent to the control panel.
TAU-TH-01 is battery powered and doesn't need any system cabling installation.
1 1

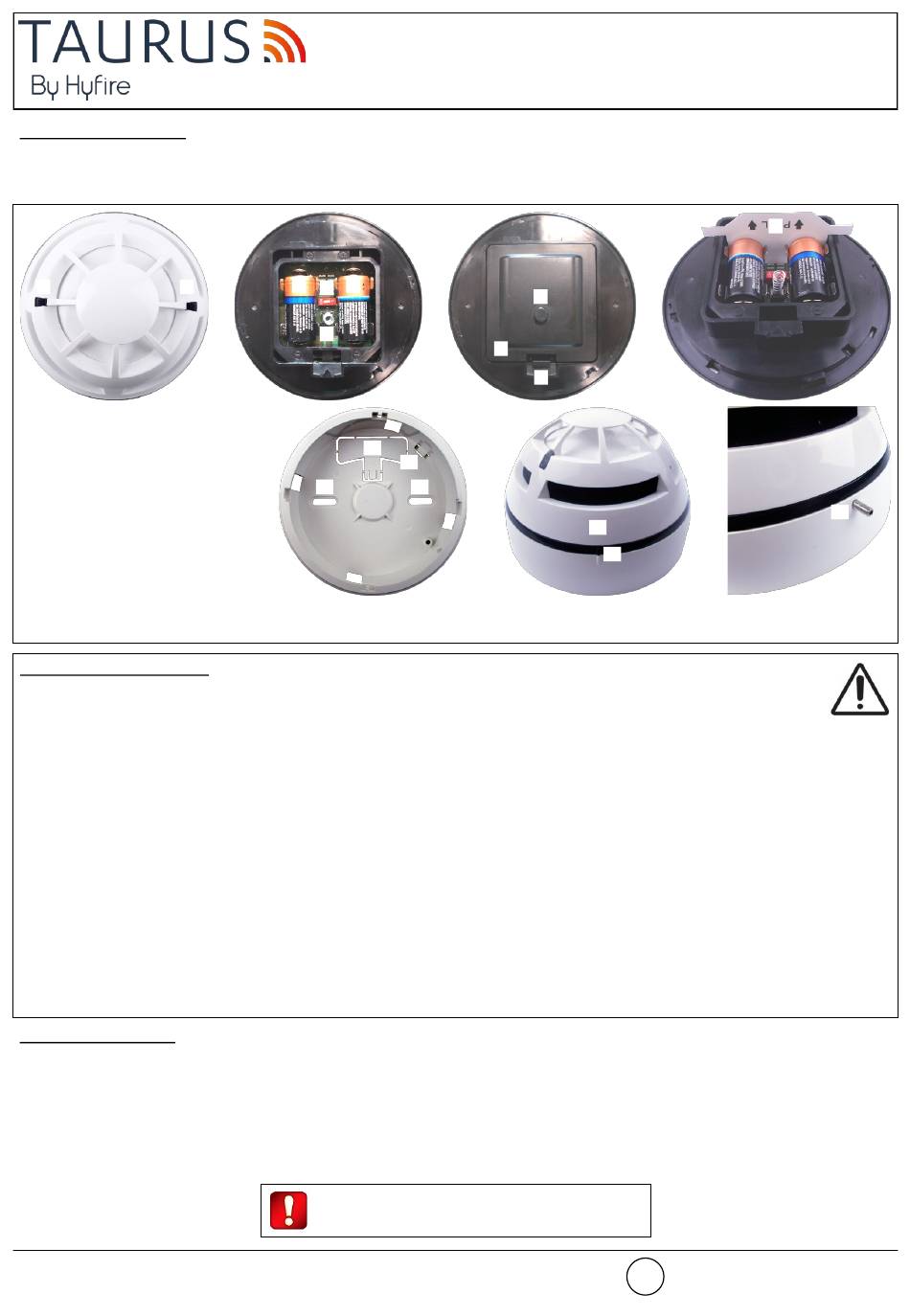

1) LED indicators
2) Battery A
3) Battery B
4) Link program switch
5) Tamper spring (internal)
6) Tamper switch (external)
7) Battery cover
8) Battery cover latch
9) Insulating tab
10) Wall fixing openings
11) Identification tag
12) Identification tag lodgement
13) Magnet test area
14) Base / detector reference marks
15) Safety screw
DEPLOYMENT PROCEDURE
1) Select a location for the detector. See LOCATION SELECTION.
2) Unbox the detector from its packaging.
3) Detach the detector from its base. See INSTALLING / REMOVING THE DETECTOR.
4) Detach the battery cover from the detector. See BATTERY COVER.
5.1) a) Link the detector to the system (insulating tab extraction).
See LINKING - WAKE-UP - WITH INSULATING TAB.
See LINKING - ONE-BY-ONE - WITH INSULATING TAB.
-- or --
5.2) a) Power up the detector.
See POWERING UP - FIRST TIME USE - WITHOUT INSULATING TAB.
See POWERING UP - RECOVERY.
b) Link the detector to the system (moving the link program switch).
See LINKING - WAKE-UP - WITHOUT INSULATING TAB.
See LINKING - ONE-BY-ONE - WITHOUT INSULATING TAB.
6) Reinstall the battery cover on the detector. See BATTERY COVER.
7) Detach the identification tag from the base adapter. See IDENTIFYING THE DETECTOR.
8) Install the base adapter. See FIXING THE ADAPTOR BASE.
9) Install the detector on the base adapter. See INSTALLING / REMOVING THE DETECTOR.
10) Install the identification tag to the base adapter, with all relevant information written / labelled on it. See IDENTIFYING THE DETECTOR.
11) Secure the detector to its base with its safety anti-tamper screw. See INSTALLING THE SAFETY SCREW.
12) Test the detector. See TESTING.
LOCATION SELECTION
Select a location for the detector that conforms to your local applicable safety standards and that is in a good position for sending / receiving
wireless signals to / from the father TAU-TRM-01, TAU-CEM-01 or TAU-EXM-01 network device.
Mount the detector as far as possible from metal objects, metal doors, metal window openings, etc. as well as cable conductors, cables
(especially from computers), otherwise the operating distance may greatly drop.
The TAU-TH-01 must NOT be installed near electronic devices and computer equipment that can interfere with its wireless communi-
cation quality.
Hyfire Wireless Fire Solutions Ltd - Unit B12a, Holly Farm Business Park, Honiley,
Warwickshire, CV8 1NP - United Kingdom
Hyfire Taurus Heat Detector
3 2
4
5
11
12
10 10
It is advisable to use the TAU-STK-01 survey kit
to locate a good wireless installation location.
TAU-TH-01
6
7
8
13
14
1
9
15
