Yamatake-Honeywell 7800 Series Product Data

Relay module
Hide thumbs Also See for 7800 Series:

Advertisement

Quick Links

APPLICATION

The Yamatake Honeywell EC7885/RM7885 is a microprocessor based
integrated burner control for semi-automatically fired gas, oil or
combination fuel single burner industrial applications. The 7885A
requires a Relay Module Subbase and Amplifier to complete the
system. Options include Keyboard Display Module, Personal Computer
Interface, DATA CONTROLBUS MODULE™, Remote Display Module
and COMBUSTION SYSTEM MANAGER™ Software.
The 7885A is programmed to provide a level of safety, functional capability
and features beyond the capacity of conventional controls.
The 7885A is adaptable to continuous firing, high-low or modulating
firing rate for semi-automatic burner sequencing. Functions
provided by the 7885 include flame supervision, system status
indication, system or self-diagnostics and troubleshooting.
The 7885A operates with any of the following types of ignitions:
1. Torch-ignited main burner using the S445A Start-Stop Station,
or any conventional knee- or foot-operated start-stop station.
2. Torch-ignited pilot using the S445A Start-Stop Station, or any
conventional knee- or foot-operated start-stop station.
3. Direct-ignition oil burner or electrically ignited pilot, using the
S445A Start-Stop Station, which maintains electric ignition as
long as the Start Switch is depressed (up to 15 minutes).

FEATURES

Safety features:
-
Closed loop logic test.
-
Dynamic AMPLI-CHECK®.
-
Dynamic input check.
-
Dynamic safety relay test.
® U.S. Registered Trademark
Copyright © 1997 Honeywell Inc. • All Rights Reserved

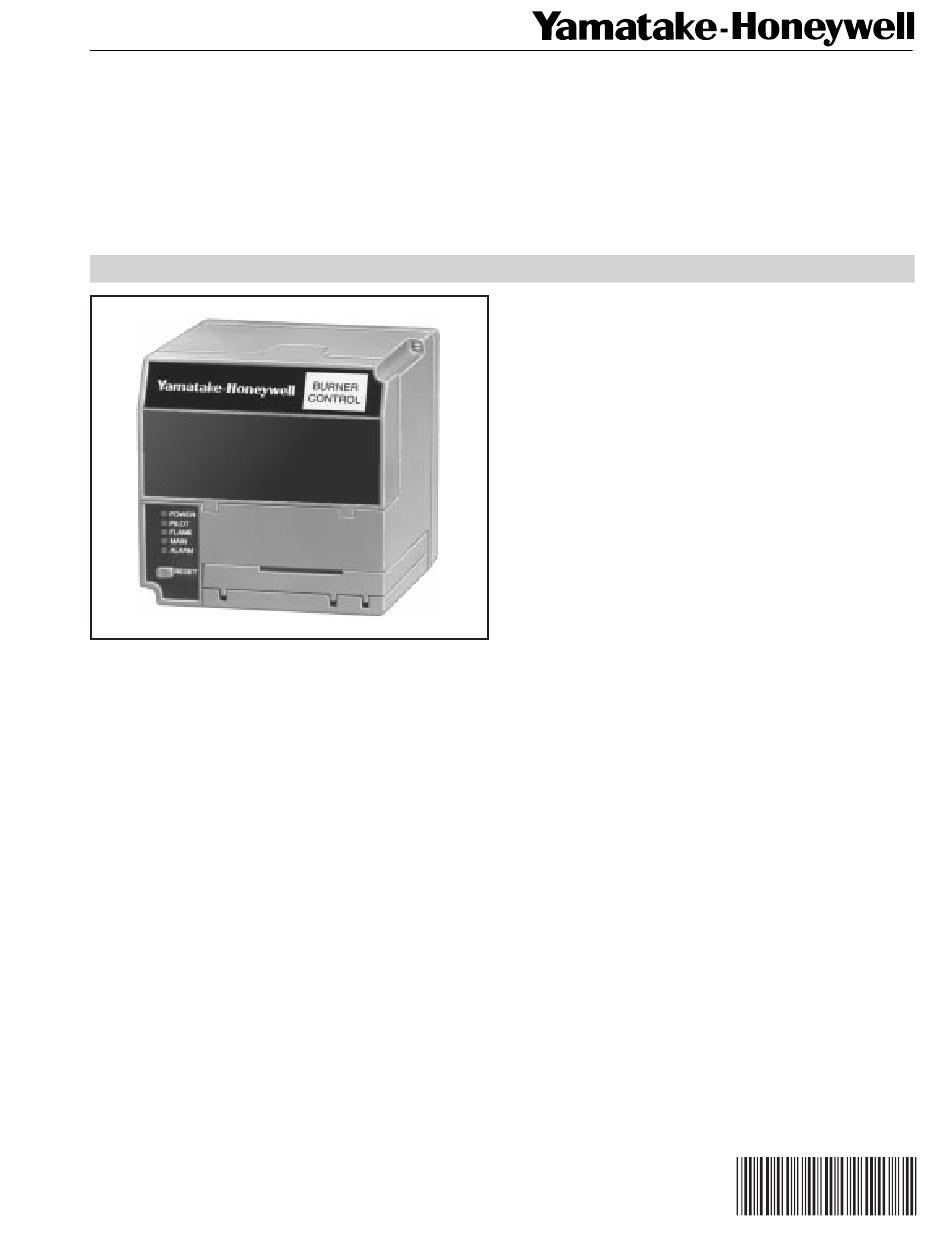

EC7885A/RM7885A Relay Module
7800 SERIES
-
Dynamic self-check logic.
-
Expanded safe-start check.
-
Internal hardware status monitoring.
-
Tamper resistant timing and logic.
Lockout if Start Switch is held 15 minutes.
Access for external electrical voltage checks.
Application flexibility.
Communication interface capability.
Dependable, long-term operation provided by microcomputer
technology.
First-out annunciation and system diagnostics are provided by
an optional 2 row by 20 column Vacuum Fluorescent Display
(VFD) located on the optional Keyboard Display Module.
Five LEDs for sequence information.
Interchangeable plug-in flame amplifiers.
Local or remote annunciation of 7885A operation and fault
information (optional).
Nonvolatile memory; 7885A retains history files and
sequencing status after loss of power.
Remote reset (optional).
Report generation (optional).
Shutter drive output.
Burner controller data (optional):
-
Flame signal strength.
-
Hold status.
-
Lockout/alarm status.
-
Sequence status.
-
Sequence time.
-
Total hours of operation.
-
Total cycles of operation.
-
Fault history providing the six most recent faults:
- Cycles of operation at the time of the fault.
- Fault message and code.
- Hours of operation at the time of the fault.
- Sequence status at the time of the fault.
- Sequence time at the time of the fault.
-
Diagnostic information:
- Device type.
- Flame amplifier type.
- Flame failure response time.
- Manufacturing code.
- On/off status of all digital inputs and outputs.
- Software revision and release of 7885A and optional
Keyboard Display Module.
Application ........................................................................... 1
Features .............................................................................. 1
Specifications ...................................................................... 2
Ordering Informationn ......................................................... 2
Principal Technical Features ............................................... 8
Safety Provisions ................................................................ 8
Installation ........................................................................... 9
Assembly ............................................................................. 16
Operation ............................................................................ 19
Checkout ............................................................................. 21
Troubleshooting .................................................................. 28
PRODUCT DATA
Contents
65-0203
