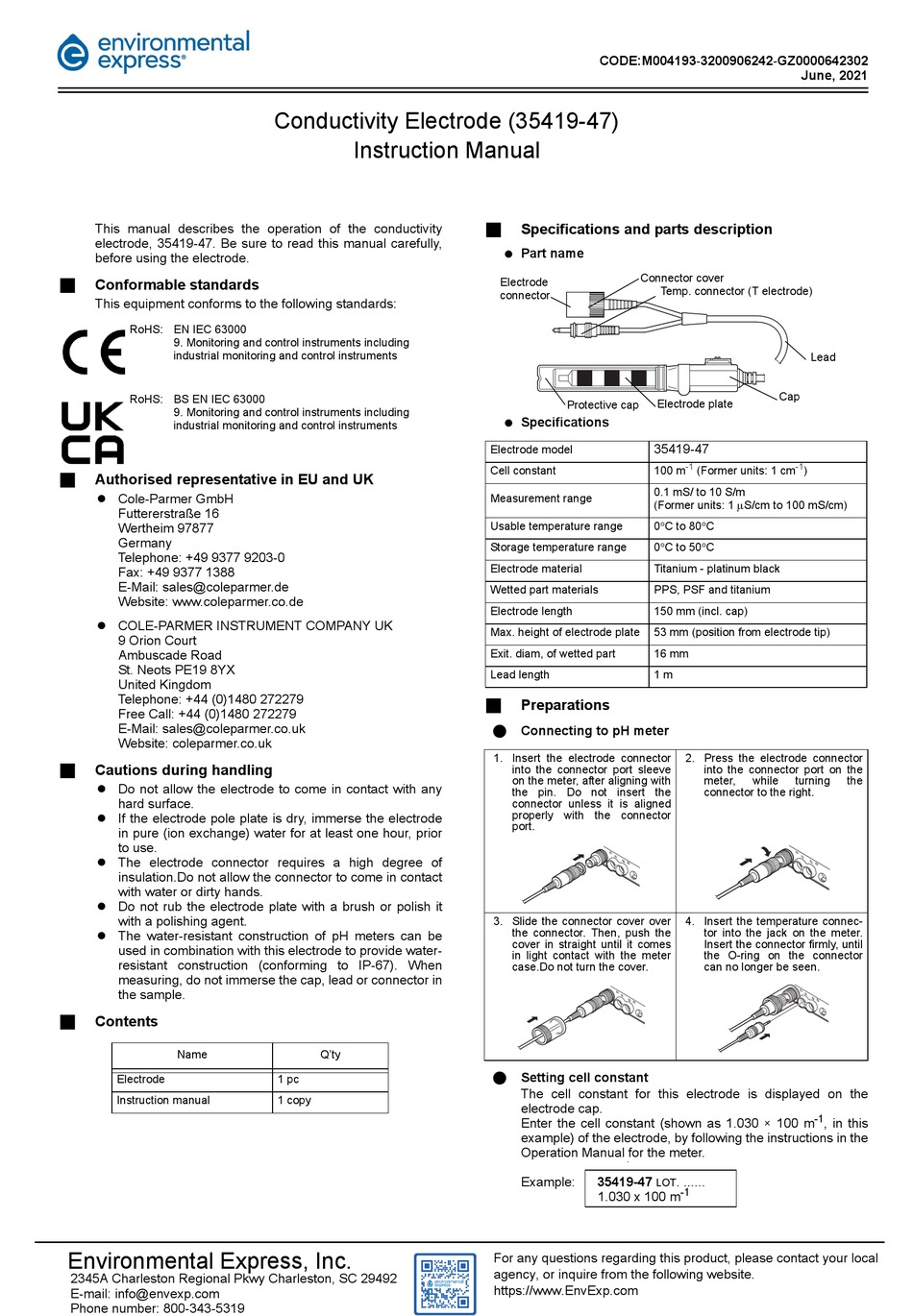

Environmental Express 35419-47 Instruction Manual

This manual describes the operation of the conductivity
electrode, 35419-47. Be sure to read this manual carefully,
before using the electrode.
Conformable standards

This equipment conforms to the following standards:
RoHS: EN IEC 63000
9. Monitoring and control instruments including
industrial monitoring and control instruments
RoHS: BS EN IEC 63000
9. Monitoring and control instruments including
industrial monitoring and control instruments
Authorised representative in EU and UK

 Cole-Parmer GmbH
Futtererstraße 16
Wertheim 97877
Germany
Telephone: +49 9377 9203-0
Fax: +49 9377 1388
E-Mail: sales@coleparmer.de
Website: www.coleparmer.co.de
 COLE-PARMER INSTRUMENT COMPANY UK
9 Orion Court
Ambuscade Road
St. Neots PE19 8YX
United Kingdom
Telephone: +44 (0)1480 272279
Free Call: +44 (0)1480 272279
E-Mail: sales@coleparmer.co.uk
Website: coleparmer.co.uk
Cautions during handling

 Do not allow the electrode to come in contact with any
hard surface.
 If the electrode pole plate is dry, immerse the electrode
in pure (ion exchange) water for at least one hour, prior
to use.
 The electrode connector requires a high degree of
insulation.Do not allow the connector to come in contact
with water or dirty hands.
 Do not rub the electrode plate with a brush or polish it
with a polishing agent.
 The water-resistant construction of pH meters can be
used in combination with this electrode to provide water-
resistant construction (conforming to IP-67). When
measuring, do not immerse the cap, lead or connector in
the sample.
Contents

Name
Electrode
Instruction manual
Environmental Express, Inc.
2345A Charleston Regional Pkwy Charleston, SC 29492
E-mail: info@envexp.com
Phone number: 800-343-5319

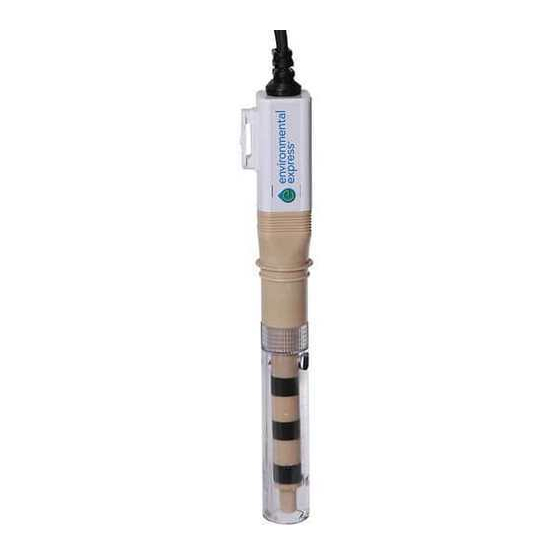

Conductivity Electrode (35419-47)
Instruction Manual
Q'ty
1 pc
1 copy
CODE:M004193-3200906242-GZ0000642302
Specifications and parts description

 Part name
Connector cover
Electrode
connector
Electrode plate
Protective cap
 Specifications
35419-47
Electrode model
Cell constant 100 m
0.1 mS/ to 10 S/m
Measurement range
(Former units: 1 S/cm to 100 mS/cm)
Usable temperature range 0°C to 80°C
Storage temperature range 0°C to 50°C
Electrode material Titanium - platinum black
Wetted part materials PPS, PSF and titanium
Electrode length 150 mm (incl. cap)
Max. height of electrode plate 53 mm (position from electrode tip)
Exit. diam, of wetted part 16 mm
Lead length 1 m
Preparations

Connecting to pH meter

1. Insert the electrode connector
into the connector port sleeve
on the meter, after aligning with
the pin. Do not insert the
connector unless it is aligned
properly with the connector
port.
3. Slide the connector cover over
the connector. Then, push the
cover in straight until it comes
in light contact with the meter
case.Do not turn the cover.
Setting cell constant

The cell constant for this electrode is displayed on the
electrode cap.
Enter the cell constant (shown as 1.030 × 100 m
example) of the electrode, by following the instructions in the
Operation Manual for the meter.
Example: 35419-47
LOT
1.030 x 100 m
For any questions regarding this product, please contact your local
agency, or inquire from the following website.
https://www.EnvExp.com
June, 2021
Temp. connector (T electrode)
Lead
Cap
-1 -1
(Former units: 1 cm )
2. Press the electrode connector
into the connector port on the
meter, while turning
connector to the right.
4. Insert the temperature connec-
tor into the jack on the meter.
Insert the connector firmly, until
the O-ring on the connector
can no longer be seen.
-1
, in this
. ......
-1
the
