FieldMonitor Machinery Protection System Operation Manual

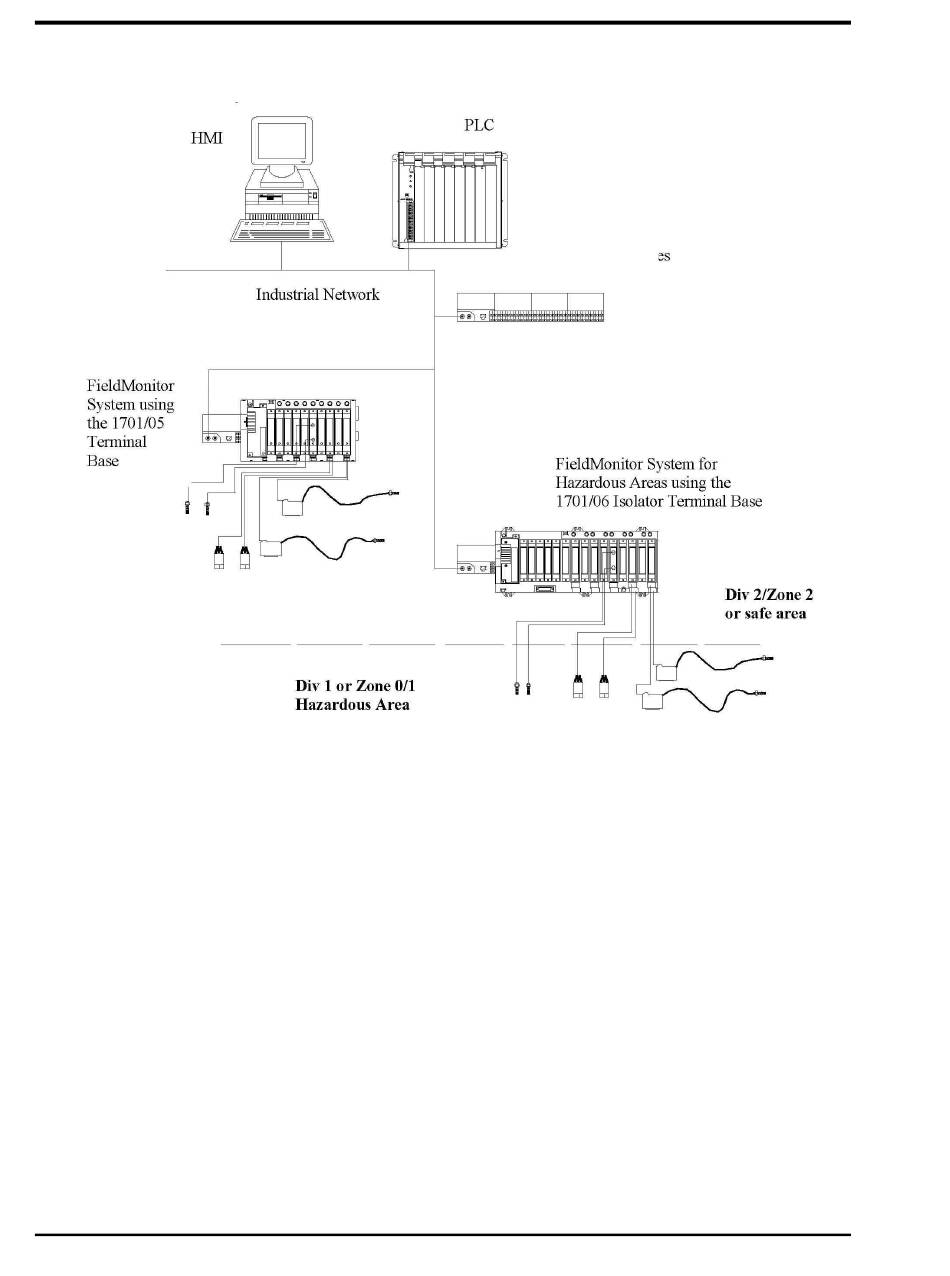

FieldMonitor System Overview
4
Each FieldMonitor System consists of the following components:
a terminal base
•
a power supply
•
an optional FieldMonitor Management Interface Module
•
(FMIM) communication processor that provides the
monitor information to a host computer
an optional Keyphasor Module (an internal Proximitor
•
module or a transducer I/O module that interfaces to an
external Proximitor sensor, the 1701 system supports
only one Keyphasor transducer per terminal base)
monitor modules
•
transducer I/O modules
•
internal galvanic isolators (only with the 1701/06 Isolator
•
Terminal Base)
transducers
•
Flex modules
