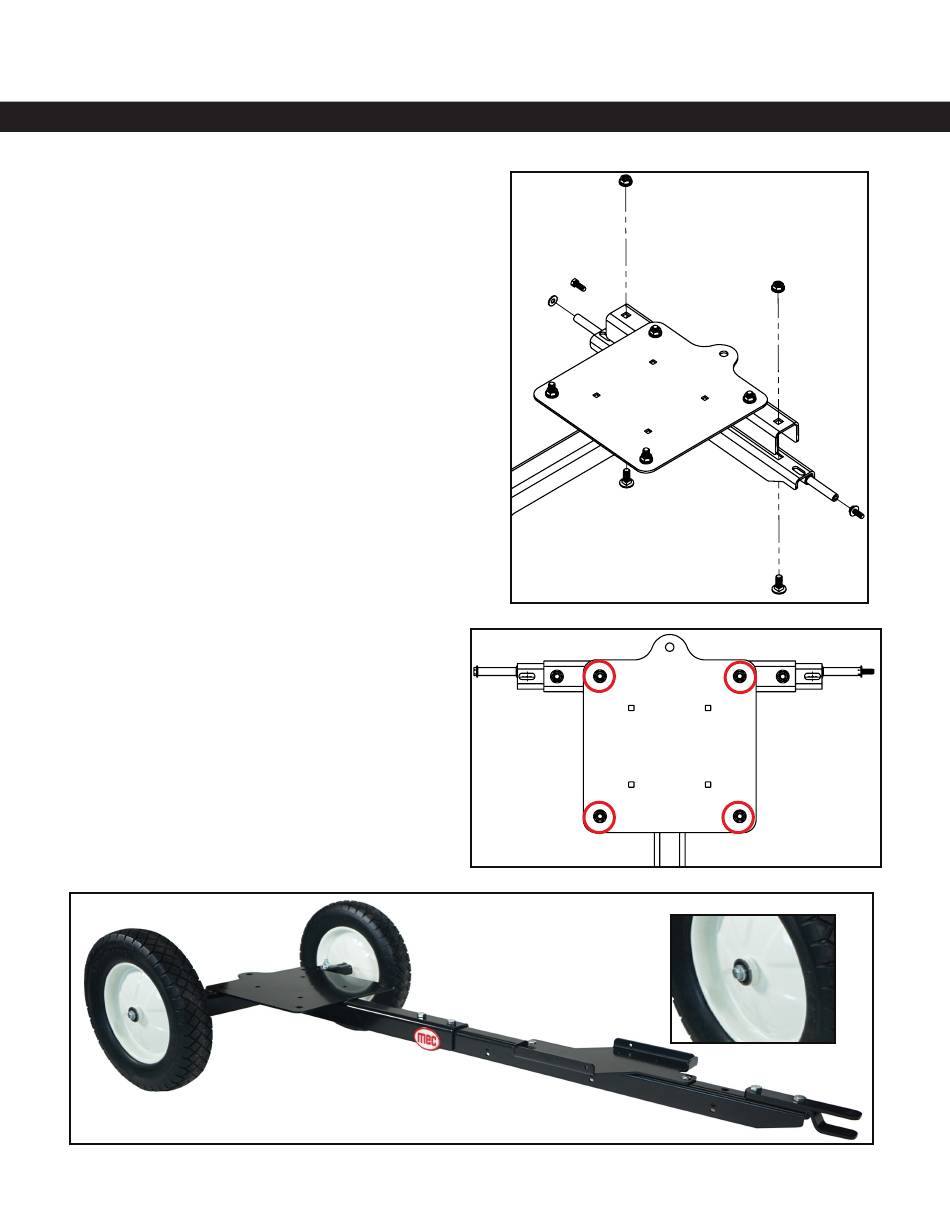

Slide the axle tubes (C & D) into the t-cart
Step 4 -
sub-weld (B) using two (7) HDW9308 bolts and
two (2) HDW2034 flange nuts. The threads of (7)
HDW9308 should face up when inserting.
(See Fig. 6)
However, for Wobble/ATA machines larger than
model 100EA1 or 100EW1, (7) HDW9308 threads
should be facing down through the axle to allow
the base to sit flat.
Install the run flat tires (A) and secure
Step 5 -
using two (5) HDW5004N bolts and two (1)
HDW2028 washers. See Fig 8 insert for hardware
placement and final t-cart image.
Before mounting your machine to
Step 6 -
the t-cart, make sure the cart is stable and all
hardware is securely tightened. The clay target
machine must be in the disarmed state and the
battery disconnected.
Bolt the machine to the cart by using four (7)
HDW9308 bolts and 4 (2) HDW2034 flange nuts
in the four corners of the t-cart Sub weld (B)
(see Fig 7). Tighten securely.
Fig. 8
Fig. 6
Fig. 7
800-797-4632 . mecoutdoors.com
5
