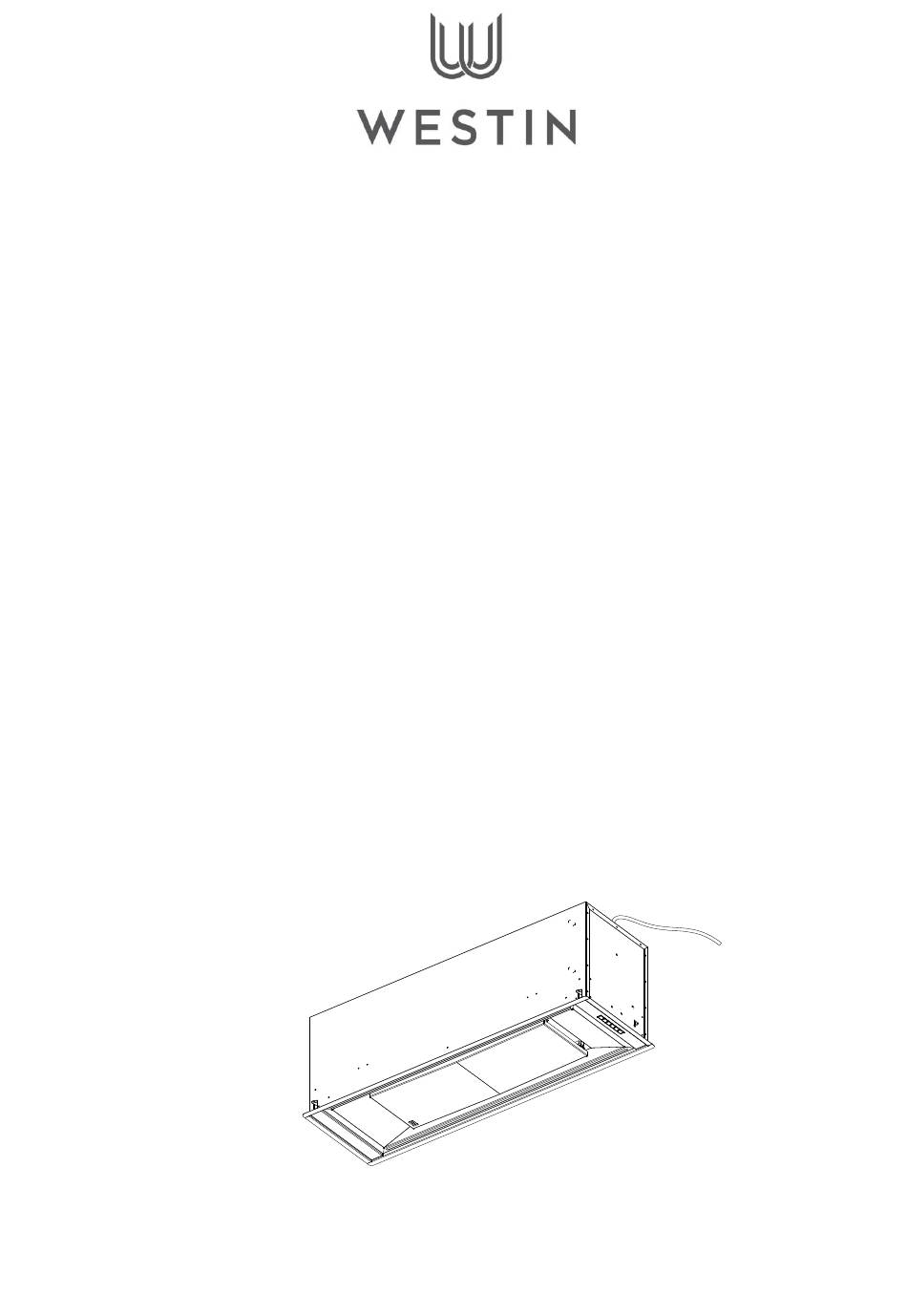

Page 1: Table Of Contents
Built-in Unit Installation, Operation and Maintenance Contents INTRODUCTION IMPORTANT INFORMATION EXTRACTION PERFORMANCE INSTALLATION SPECIFICATIONS DRAWINGS & ILLUSTRATIONS OPERATING INSTRUCTIONS MAINTENANCE Unpacking Remove all items from the packaging. Retain the packaging. If items are missing or damaged, please contact Westin for assistance. -
Page 2: Introduction
215mm minimum headroom to give a smooth radius with no kinking. You are advised to install measures designed to reduce the incidence of cold draughts entering the property via any ductwork. Page 2 W1823 WSW PRIME EDGE 800 -1100 O&M (Energy Label Version) V1 20200608.docx... - Page 3 Westin. Alternatively, it may be extended using 7 core x 0.5mm flex. It is vital to ensure that any The PRIME EDGE range of built in extractors are designed to slot new cable is inserted such that the core colour integrity is into a cut-out/opening made in a horizontal soffit panel (usually the maintained;...
- Page 4 These are accessible through the filter openings and will (supporting one end of the extractor each). Carefully release the unit, ensuring that it is supported within the opening by Page 4 W1823 WSW PRIME EDGE 800 -1100 O&M (Energy Label Version) V1 20200608.docx...
-
Page 5: Specifications
Note: as you turn the adjustment screws, the spring toggles gradually rise until they reach the top of their slots, after which, they start to retract into the extractor casing. Page 5 W1823 WSW PRIME EDGE 800 -1100 O&M (Energy Label Version) V1 20200608.docx... -
Page 6: Drawings & Illustrations
Installation, Operating & Maintenance Instructions 6. GENERAL ARRANGEMENT DRAWINGS PRIME EDGE 800 / 1100 LAYOUT INTERNAL MOTOR TOP OUTLET PRIME EDGE 800 / 1100 LAYOUT EXTERNAL MOTOR TOP OUTLET Page 6 W1823 WSW PRIME EDGE 800 -1100 O&M (Energy Label Version) V1 20200608.docx... - Page 7 Prime EDGE 800 - 1100 Built-in Extractor Installation, Operating & Maintenance Instructions PRIME EDGE 800 / 1100 LAYOUT INTERNAL MOTOR REAR OUTLET PRIME EDGE 900 / 1100 LAYOUT EXTERNAL MOTOR REAR OUTLET Page 7 W1823 WSW PRIME EDGE 800 -1100 O&M (Energy Label Version) V1 20200608.docx...
- Page 8 Prime EDGE 800 - 1100 Built-in Extractor Installation, Operating & Maintenance Instructions PRIME EDGE 800 / 1100 LAYOUT INTERNAL MOTOR EXPLODED PARTS LIST Page 8 W1823 WSW PRIME EDGE 800 -1100 O&M (Energy Label Version) V1 20200608.docx...
- Page 9 Prime EDGE 800 - 1100 Built-in Extractor Installation, Operating & Maintenance Instructions PRIME EDGE 800 / 1100 LAYOUT EXTERNAL MOTOR EXPLODED PARTS LIST Page 9 W1823 WSW PRIME EDGE 800 -1100 O&M (Energy Label Version) V1 20200608.docx...
- Page 10 Remote Motor Cable Assembly Remote Motor Cable Assembly Aux terminal powers auxiliary PCB Orange/Yellow link wire is included (Orange/Purple link wire is included) in some motors. Page 10 W1823 WSW PRIME EDGE 800 -1100 O&M (Energy Label Version) V1 20200608.docx...
-
Page 11: Operating Instructions
Then press and hold ( ) until the desired light colour is achieved. Press ( + ) to exit the setting using the remote control, or select speed 1 using the pushbuttons. Page 11 W1823 WSW PRIME EDGE 800 -1100 O&M (Energy Label Version) V1 20200608.docx... -
Page 12: Maintenance
W S Westin Ltd Phoenix Mills, Leeds Road, Huddersfield, HD1 6NG, UK Tel: 01484 421585 Fax: 01484 432420 Email: sales@westin.co.uk www.westin.co.uk Page 12 W1823 WSW PRIME EDGE 800 -1100 O&M (Energy Label Version) V1 20200608.docx...
