Support Frame with
Oversized Rugged S.S.
Uprights and Heavy-
Duty PTFE Coated
Aluminum Fittings
Mechanical Seal
Stir Bearing
S.S. Inlet/Outlet
Adapters Available
in M16 x 1 and M30
PTFE Filter Base
Detachable Drain
Valve
Heavy Duty
Lockable Castors
www.cglifesciences.com

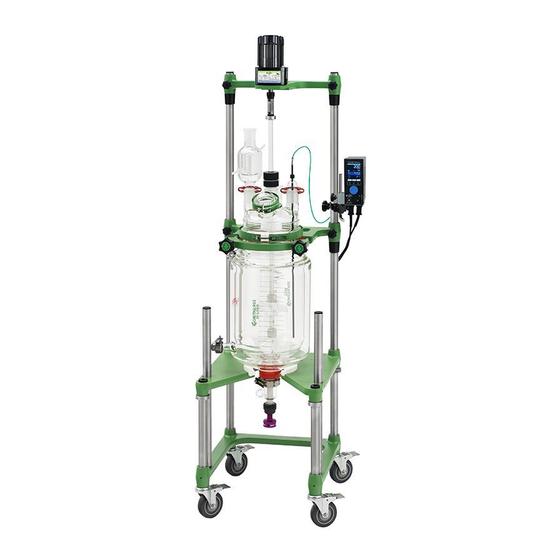

ASSEMBLY INSTRUCTIONS FOR
JACKETED FILTER
REACTOR SYSTEMS
Vineland, NJ 08360
Phone: 800.843.1794
20L Vessel Body
technical-service@cglifesciences.com
3800 N. Mill Road
Fax: 800.922.4361
Open Frame
Design for
Excellent
Accessibility
Advertisement
Related Manuals for Chemglass Life Sciences JACKETED FILTER
Summary of Contents for Chemglass Life Sciences JACKETED FILTER
- Page 1 3800 N. Mill Road Vineland, NJ 08360 Phone: 800.843.1794 Fax: 800.922.4361 ASSEMBLY INSTRUCTIONS FOR JACKETED FILTER REACTOR SYSTEMS Support Frame with Open Frame Oversized Rugged S.S. Design for Uprights and Heavy- Excellent Duty PTFE Coated Accessibility Aluminum Fittings Mechanical Seal Stir Bearing S.S.
- Page 2 PLEASE NOTE: FILTER REACTORS ARE FOR VACUUM/GRAVITY FILTRATION USE ONLY. Read Entire Assembly Instructions Before You Begin. Familiarize Yourself with All of the Parts, and Pay Close Attention to All Notes and Highlights. Support frames are shipped via common carrier and require loading dock access with a fork lift or jack.
- Page 3 Overhead Stirrer Motor Air Motor 1/4 HP Vertical Motor 1/4 HP Horizontal Motor Explosion Proof (XP) Motor The motor is installed on the support frame when shipped. Use the following instructions should you need to remove or adjust these components. Components Needed for Overhead Stirrer Motor: 1ea CG-2033-B-25 1/4 HP Vertical Electric Stirrer Motor...
- Page 4 Stirrer Shaft and Agitator Assembly CG-2097 Stirrer Shaft CG-2095 Upper Agitator Hole through the Lower Portion of the Stirrer Shaft Glass Filled PTFE Pin CG-2096 (MUST BE CUT TO Lower Agitator LENGTH BEFORE INSTALLING) The stirrer shaft and agitators are assembled and installed when shipped. Use the following instructions should you need to remove or adjust these components.
- Page 5 Filter Base System Centering Ring Frit (Filter) *Note: The Bottom Impeller Should NOT Rub on the Filter Perforated Plate Filter Base 1. Place the o-ring in the beveled edge of the filter base. 2. Place the perforated plate in the filter base, beveled edge facing up. 3.
- Page 6 Inlet/Outlet Jacket Connections The stainless-steel adapters are assembled and attached when shipped. Use the following instructions should you need to remove or adjust these components. Components Needed for Inlet/Outlet: 2ea CG-1969-A-05 S.S. Adapters, 1” Beaded Pipe to M16x1.0 Male 2ea CG-1968-66 1”...
-
Page 7: Before You Start
BEFORE YOU START The reactor is now ready for use. Before filling the reactor, make sure the 0-14mm drain valve is in the closed position. Once setup is complete, the reactor can be moved into position and connected to the circulator. Keep the wheels locked for added safety. - Page 8 www.cglifesciences.com technical-service@cglifesciences.com...
- Page 9 Optional Components: Safety Shield Side Support Shelf Distillation Side Support Shelf Powder Addition Funnel Data Logger www.cglifesciences.com technical-service@cglifesciences.com...
- Page 10 CG-1978-P, CG-1979-P and CG-3498 Probes for Reactor Systems Installed in Hazardous/XP or ATEX environments. Chemglass PT100 and thermocouple probes that will be used in a hazardous/explosion proof area must be used with a Zener barrier. Zener barriers are used in control and instrumentation systems for the process of standardized signals, such as 20 mA or 10 V.
