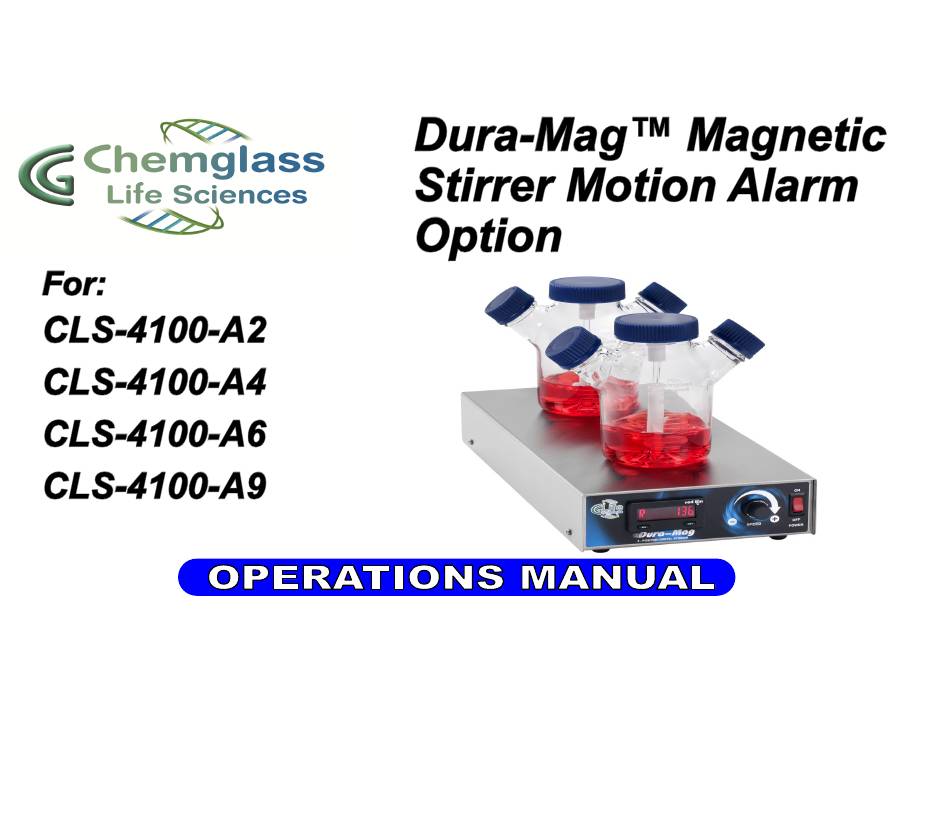

- Page 1 3800 North Mill Road • Vineland, NJ 08360 • USA Tel: 1-800-843-1794 • Fax: 1-800-922-4361 REV: E Web: www.cglifesciences.com...
- Page 2 FEATURES 85 dB internal audible buzzer Serial port for external alarm configuration (external alarm is not supplied) Alarm state is initiated if any of the magnets stops spinning Convenient alarm reset button GENERAL Description The Chemglass Life Science's factory installed Motion Alarm option monitors the physical rotation of the stirrer mechanism.
- Page 3 SET-UP (See Figure 1) 1. Connect one end of a 9-pin serial communications cable to the “COMM.” receptacle located on the rear panel of the magnetic stirrer. (See pin configuration under SPECIFICATIONS). 2. Connect the other end to a suitable alarm system, i.e. house alarm, computer system, or other system. Mains Fuse Motion Alarm 1A/250V...
- Page 4 OPERATION The alarm circuit is automatically started when the main power switch is turned on. The alarm circuit operates at any RPM setting between 25 - 400. The “ALARM RESET” push button is located on the rear panel – see figure 1. When the alarm has been activated, pressing this button will silence the audible alarm and switch the alarm output relay.
- Page 5 CGLS. The purchaser is obligated to disclose fully in writing, the cleaning and decontamination method. We reserve the right not to accept any unauthorized or potentially harmful shipment. Correspondence: Chemglass Life Sciences Phone: 800-843-1794 3800 North Mill Rd. Email: customer-service@cglifesciences.com Vineland, NJ 08360 Web: www.cglifesciences.com...
