- Page 1 SRD7540P&PA AIC Drives PCIe 4.0 SRD Series NVMe Quick Installation Guide V1.02...
- Page 2 Compatible with a free PCIe 4.0/3.0 x16 slot • Linux Kernel v3.10 or later MacOS Compatibility • Compatible with a free PCIe 4.0/3.0 x16 slot • macOS 10.13 or later For information about motherboard compatibility, please visit the link below: https://highpoint-tech.com/PDF/Compatibility_List/FnL/SRD/PRO/FnL _SRD7540P&PA_Compatibility_List_v1.02_21_9_26.pdf...

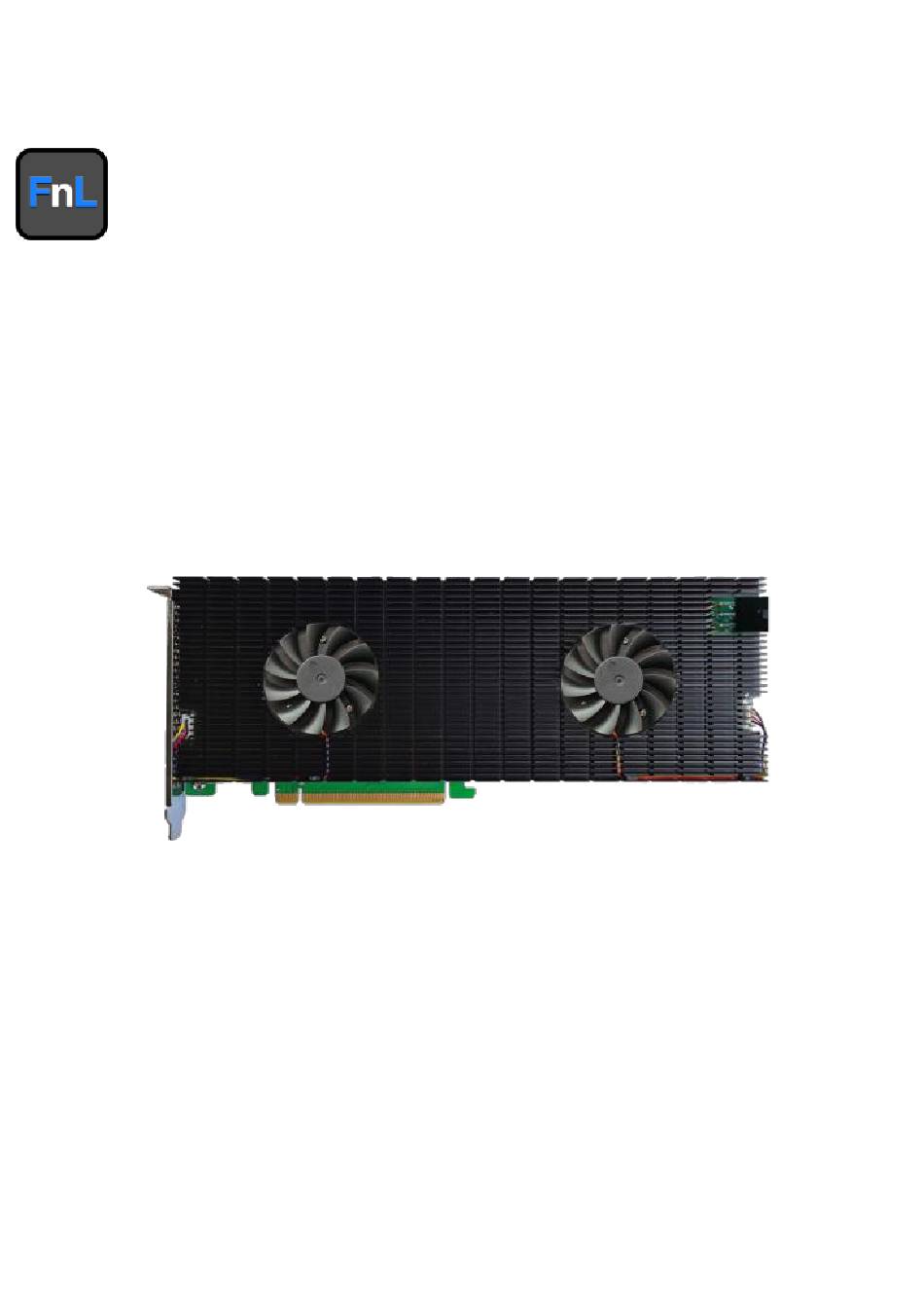

- Page 3 SRD7540P Kit Content • Pre-Configured SRD7540P AIC Drive • Quick Installation Guide SRD7540PA Kit Content • Pre-Configured SRD7540PA AIC Drive • Quick Installation Guide SRD7540P&PA Hardware Front View Full-Length anodized aluminum heat sink Full Height form factor 0000 Low-Noise Cooling Fan External power port PCIe 4.0 x16 Host Interface...
- Page 4 SRD7540P&PA Hardware Installation Step 1. Carefully remove the SRD7540P (or SRD7540PA) from the box. Step 2. Power off the motherboard and locate the PCIe slot (x16). Figure 1 - PCIe x16 slot diagram Note: Please consult your motherboard manual for more information about the system’s PCIe configuration.
- Page 5 (installation guide, compatibility list, etc.) Document Downloads: https://www.fnlnvme.com/srd7540p-overview If you want to know more about similar products (BRD/SRD/CRD Series), please visit the HighPoint website at: https://www.fnlnvme.com/ FnL Monitor FnL Monitor is an intuitive, web-based monitoring utility that is available for all major operating system platforms. FnL Monitor’s enables customers to check and track the health of their AIC drives in real time.
- Page 6 Customer Support If you encounter any problems while utilizing the SRD7540P&PA AIC Drive, or have any questions about this or any other HighPoint Technologies, Inc. product, feel free to contact our Customer Support Department. Web Support: https://www.highpoint-tech.com/websupport/main.php FnL Product websites: https://www.fnlnvme.com/...
