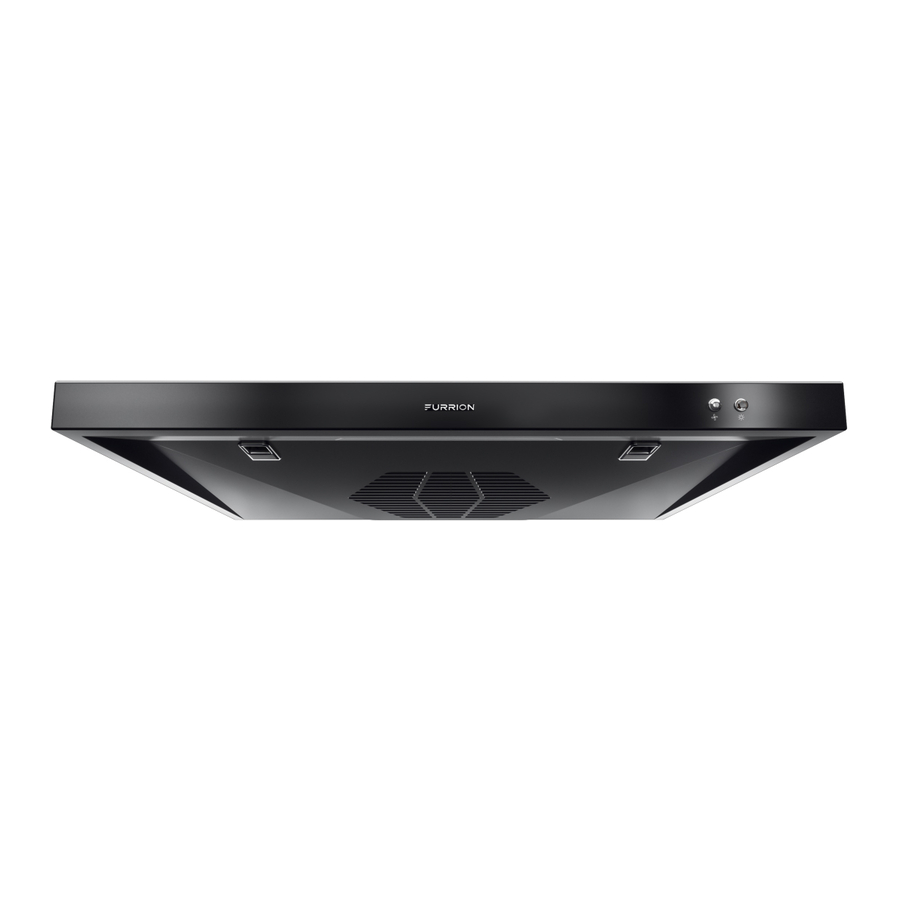

Furrion FHO23SACR-BL User Manual
12v horizontal rv range hood
Hide thumbs
Also See for FHO23SACR-BL:
- Instruction manual (25 pages) ,
- Owner's manual (24 pages) ,
- Instruction manual (20 pages)
Subscribe to Our Youtube Channel
Related Manuals for Furrion FHO23SACR-BL
Summary of Contents for Furrion FHO23SACR-BL
- Page 1 12V Horizontal RV Range Hood Model: User Manual FHO23SACR-BL / FHO23SACR-SS FHO23SACR-BP / FHO23SACR-SB * Picture shown here is for reference only. REV DATE: 10.14.2022 | CCD-0005584...
- Page 2 Thank you for purchasing this Furrion® product. Before operating your new appliance, please read these instructions carefully. This instruction manual contains information for safe use, installation and maintenance of the appliance. Please keep this instruction manual in a safe place for future reference. This will ensure safe use and reduce the risk of injury.
- Page 3 Important Safety Instructions Warning and important safety instructions appearing in this WARNING guide are not meant to cover all possible conditions and situations that may occur. Common sense, caution, and care TO REDUCE THE RISK OF FIRE, must be exercised when installing, maintaining, or operating ELECTRIC SHOCK, OR INJURY TO the appliance.
- Page 4 ● Mounting Screws (6 pieces) ● Instruction Manual ● Warranty Leaflet NOTE: If a Furrion exterior wall vent is purchased: please refer to the user manual IG-FHA00010 for the installation. The installation should conform to these installation instructions and with the standards for recreational vehicles, NFPA 1192.
- Page 5 4. Mark the centerline of range hood on the wall. (Fig 3) NOTE: − If using a Furrion range (Model No.: F1S17****/ F1S21****) or a Furrion cooktop (Model No.: FGHQCLDA), the following minimum vertical distance and cabinet depth should apply. (See Fig. 3 and Fig. 4).
- Page 6 Operation Fan Control Light Control Press the fan button once to turn on the fan, press twice to Press the light button once to turn on the light, press twice to turn off. (Fig. 11) turn off. (Fig. 12) Fig. 12 Fig.
- Page 7 4. Separate the metal rod, the metal holder and the charcoal more often if the range hood is used for more than three filter from the cover. (Fig. 16) hours per day. To replace the charcoal filter: 1. Repeat steps 1 to 3 in section ‘Metal Holder’ to remove the metal rods and metal holder first.
- Page 8 The contents of this manual are proprietary and copyright protected by Lippert. Lippert prohibits the copying or dissemination of portions of this manual unless prior written consent for an authorized Lippert representation has been provided. Any unauthorized use shall void any applicable warranty. The information contained in this manual is subject to change without notice and at the sole discretion of Lippert.
