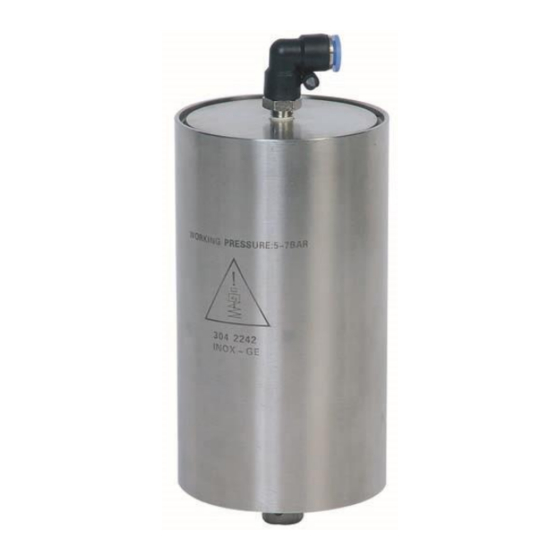

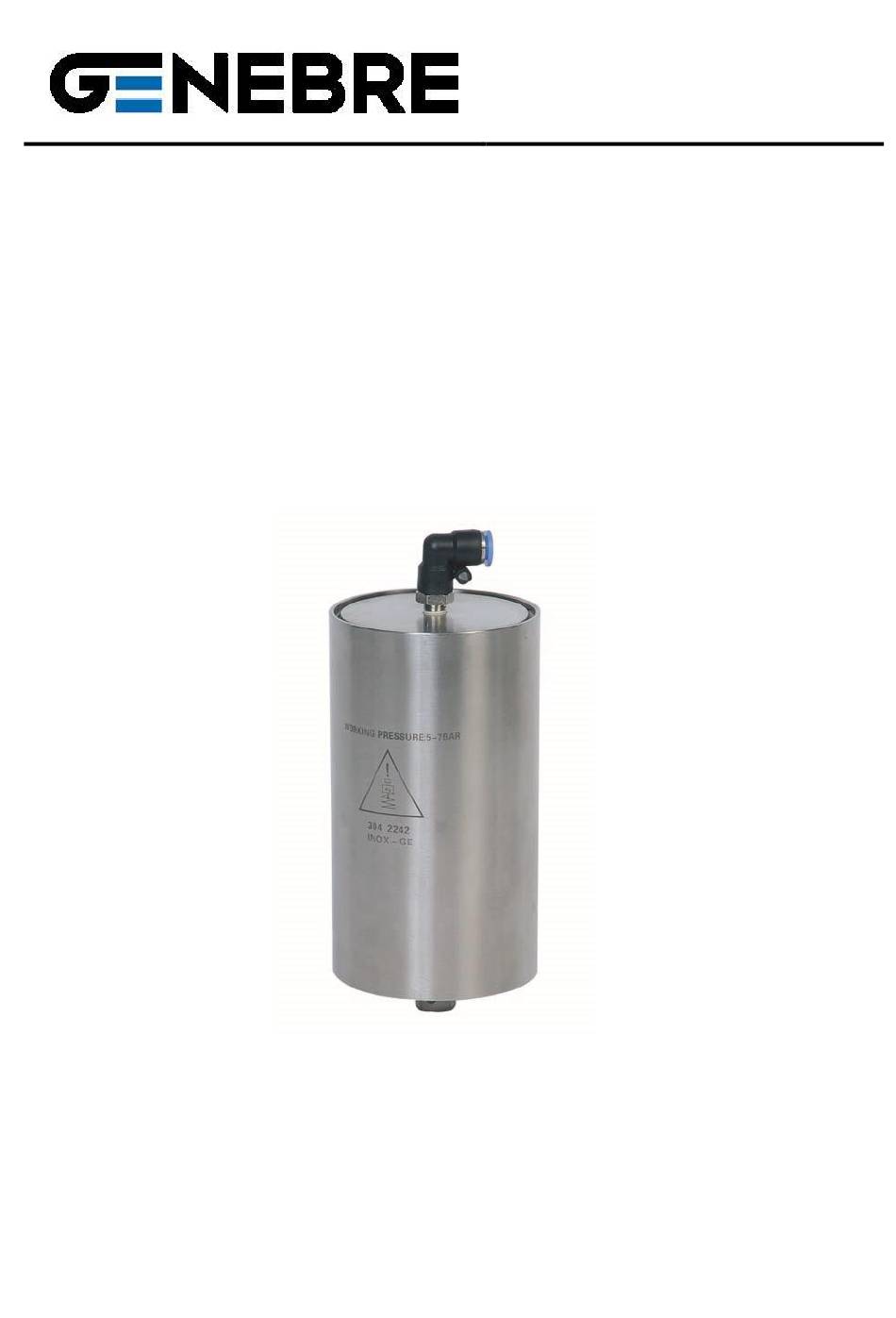

- Page 1 Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es INSTALLATION, OPERATION AND MAINTENANCE MANUAL Sanitary Pneumatic Actuator GENEBRE Reference: 2944 – 2949 GENEBRE S.A. LAST UPDATE: 15/06/2020 UPDATE NUMBER: 1...
-
Page 2: Table Of Contents
Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es Installation, operation and maintenance instructions 1. Breakdown drawing......................3 1.1) List of components: ....................... 4 2. Storage ..........................4 3. Installation instructions ......................5 3.1) Preparation ........................ -
Page 3: Breakdown Drawing
Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es 1) Breakdown drawing. GENEBRE S.A. LAST UPDATE: 15/06/2020 UPDATE NUMBER: 1... -
Page 4: List Of Components
Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es 1.1) List of components: Position Name Material Body Stainlees Steel 304 Bearing ------ O’ring Stem Stem Stainlees Steel 304 Piston Bearing ------ Bearing... -
Page 5: Installation Instructions
08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es If you notice any kind of anomaly during reception of the goods, contact immediately with GENEBRE in order to determine the possible responsibilities on the issue and make the devices fully operational. IMPORTANT NOTE: Before installing and/or manipullating these pneumatical elements, READ CAREFULLY these instructions for use and OBSERVE all contained information. -
Page 6: Installation On The Valve
All connectors for pneumatic installation are the "quick connector" kind, for a pipe Ø 8 mm. IMPORTANT: Power air has to be CLEAN and DRY. Respect minimum and maximum power pressure (1,5 – 6 bar) Art. 2944 (Spring Return Actuator – Normal Closed): Supply Air Entrance for open Simple Effect Actuator (Spring Return) Normal Closed (N.C.) -
Page 7: Operation Instructions
Genebre Building. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es Art. 2949 (Double Acting Actuator): Power air entrance to open Power air entrance to close 4) Operational instructions 4.1) Usage Before starting the equipment you have to read the Technical Specifications and never exceed the Power limit values (electrical and air). -
Page 8: Maintenance Operations
If an internal component has been damaged, please contact Genebre S.A. to evaluate the possibility of repairing it. 6.) Reparation instructions Genebre, S.A. will not be held responsible for an inappropriate operation of the element or its components. Before starting to repair it, disconnect all pneumatic and electrical actuators. - Page 9 DISMANTLING A SIMPLE EFFECT ACTUATOR (SPRING RETURN). Remove the actuator from the valve. Art. 2944 (Spring Return Actuator – Normal Closed): The dismantling of the actuator must be performed with extreme care, since removing the seeger ring might eject the piston and might cause a serious accident as well as serious damage to the equipment With the help of a small press apply some pressure on the cover (part.
-
Page 10: Reassembling
When it is assembled again, cleaning is essential for assuring a long service life. Art. 2944 (Spring Return Actuator – Normal Closed): Put the Stem (part. 4) inside of body actuator (part. 1). Put the springs (part. 7 and 8) in the inside part and put the piston (part.
