Strand Vision.Net 65710 Quick Start Manual

Vision.net GAteWAY

OVERVIEW

This document provides basic setup instructions and safety
warnings for the following product(s):

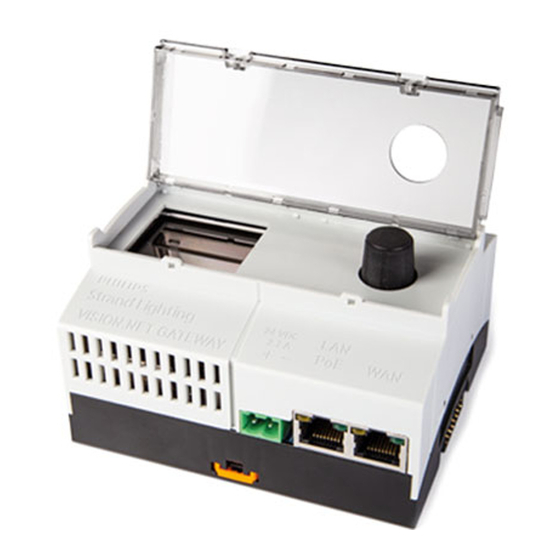

Vision.Net Gateway Module
Vision.Net Interface Gateway Module
Vision.Net 4-port DMX Interface Gateway Module
instALLAtion And set uP

PoWer reQuireMents

Vision.Net Gateway may be powered via either a Power over Ethernet (PoE) supply or from an external DC power
supply connected via a set of screw terminals.
NOTE: DC and PoE power connections will not operate as a redundant power solution.
A CR1225 backup battery (pre-installed) is used for the real-time clock. External modules are powered from the
Gateway module through the DIN rail bus system, and do not require their own power supply. The Gateway draws
up to 40W of power, depending on the configuration of modules added. For PoE supplies it is best to use an
803.2bt class7-8 high power source,however in some circumstances, it may be powered from an 803.2af PoE+
supply. Consult the table below for further information to select the right options.
COMBINATION
Gateway standalone
Gateway + modules

din rAiL MountinG

WARNING! Do not power the system until all modules are placed and connected as described in the steps
below.
To mount Vision.Net gateway and other modules on compatible TS35/7.5 DIN rail:
Step 1. Unpack module(s), taking precautions against ESD.
Step 2. Place the DIN rail bus connector into the DIN rail.
Step 3. Mount Vision.net Gateway module on DIN rail, taking care to orient the modules as shown. Take special
care aligning, to prevent bending the pins
PoE REQUIREMENTS
PoE PSE TYPE
802.3af
802.3bt class 5 or higher
SERIAL
24 VDC
LAN
2.7 A
VISION.NET GATEWAY
+ −
PoE
65710
65730
65720
DESCRIPTION
12W @ the gateway
40W @ the gateway
USB
– + – + – + – +
+
D
D
G AT E WAY - D M X 4 P O R T
VISION.NET INTERFACE
R S 4 8 5 M O D U L E
GATEWAY MODULE
WAN
1
Quick stArt Guide
− + −
− + − +
443581626884 reV A 10/21
