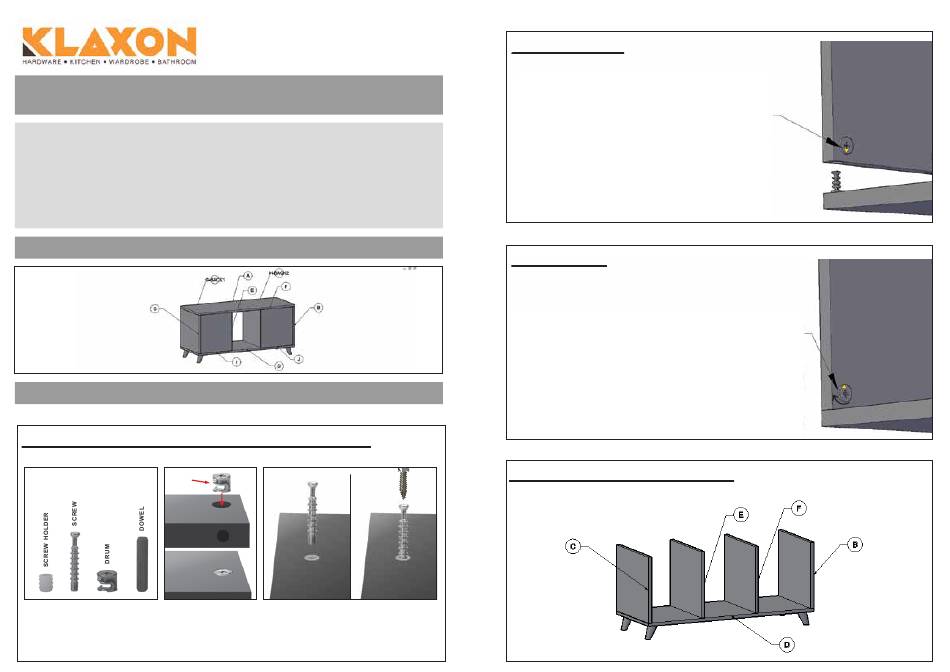

Klaxon G0223IT0239 Installation Manual

TV UNIT - G0223IT0239
Installation Instructions
1. This product should only be installed by someone who fully understand the installation instructions.
2. Make sure that the supporting surface will safely support the combined load of the equipment, hardware
& components
3. Never exceed the maximum load capacity.
4. Always use assistant or mechanical lifting equipment, if needed, to safely lift & position equipment.
5. Tighten screws firmly, but do not over-tighten. Over-tightening can damage the screw & reduce their
holding power
6. This product is intended for indoor use only. Using this product outdoors could lead to product failure
& personal injury.
Component Checklist
Installation Steps
STEP 1
FIX ALL Minifix-Screws and Minifix-Drums:
MINIFIX SET DRUM INSERTING
PUSH DOWN
Note: Make sure
Drum inserting
as same as above,
Drum arrow direction
at side surface
hole side.
SCREW INSERTING
Note: Tight the screw clock-vise till
the thread disappear.
STEP 2
Unlock Mode:
Note: Make sure all the given points otherwise
it will not fix properly.
Minifix-Drum
Arrow at Hole
Side Before
Inserting Minifix-Screw
STEP 3
Lock Mode:
Note: Tight all Minifix-Drum Properly.
Tight Minifix-Drum
Clock-wise
Till It Stops
and Fits properly
STEP 4
Connect D With C, E, F & B:
Note: Tight all Minifix-Drum Properly. Connect Legs With D.
