CATALOGUE Introduction 1. Power 1.1 Optional Plug 2. The back of the watch winder 3. Controls 3.1 LCD Touchscreen Control Panel 3.2 Initialization Mode 3.3 All Mode 3.4 Custom Mode 3.5 New Watch Mode 4. Winding Mode 5. Remote Control 6. -
Page 3: Introduction
Introduction Congratulations on your purchase of this watch winder. Please review this quick start guide so that your auto- matic watch will benefit fully from the features that have been engineered into this product. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or... -
Page 4: Power
1 Power This module fingerprint watch winder comes with a power adapter (AC/DC5.0V-volt. 2.0A output) NOTE: 1. External power connection is required to use fingerprint lock, external power input is DC5V, please do not connect reverse polarity. 2. Never use any unauthorized power adapter or not up to specification power adapter. -
Page 5: The Back Of The Watch Winder

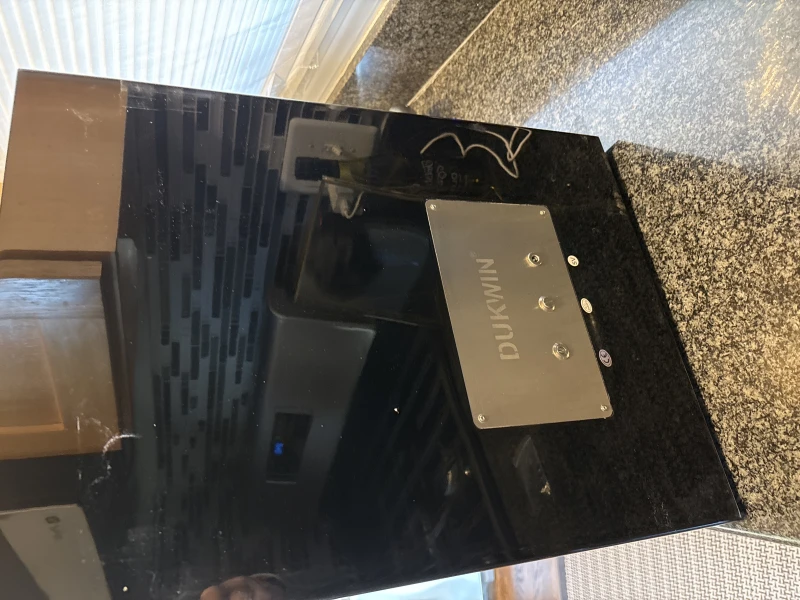

2 The back of the watch box Power Switch Pause Switch AC Adapter Input Port PAUSE SWITCH: When you turn on the "pause switch" and open the front cover, all drums will immediately stop rotating. When you turn off the "pause switch" and open the front cover, all drums continue rotating. -
Page 6: Initialization Mode
Pause Stop (Switch Diagram) 3.2 Initialization Mode Initialization Mode 1. Hold down the “ALL” button for 5 seconds to display Initialization. Press the “Run” button to perform initialization. The ticked icon will appear in the upper left corner of the middle four choices, representing the “ALL” Mode. When you choose any other button, initialization mode will go off and returns to the original mode of your operation. -
Page 7: All Mode
3.3 ALL Mode Tap the "ALL" button 4 times until the top left corner of each of the four options shows a ticked icon, or Press the "motor selection" and "Run" buttons at the same time for 5 seconds, and then tap the "Run" button. All watches will be set to the current mode. -
Page 8: Winding Mode
New Watch Mode Working Chart Direction Setting Working Time Rest Time Clockwise 4 hours 8 hours 8 hours Counterclockwise 4 hours Clockwise for 2 hours and Bi-directional 8 hours Counterclockwise for 2 hours Finally return to the previously setting mode 4 Winding Mode 1. -
Page 9: Remote Control
5 Remote Control Power Switch LED Light Control 1950 TPD selection 1000 New Watch Bi-directional Mode Key Run & Stop Watch Selection Watch Selection (Left) (Right) Note: Only 650,750,850,1000 and 1950 TPD can be adjusted by remote control. Other TPD modes need to be adjusted manually by touchscreen. Fingerprint Lock A. -
Page 10: Fingerprint Accounts Setting
Note: · Factory Mode: Any fingerprint can be unlocked · Status of successful fingerprint enter: The blue light will be on for 2 seconds. · Status of unsuccessful fingerprint enter: The red light will flash for 3 times. · The fingerprint sensor can set up to 20 fingerprint users(2 administrator and 18 user accounts) ·... -
Page 11: Fingerprint Accounts Remove/Reset
3. The 3-20 fingerprint accounts setting: The fingerprint entry steps are the same as the method for entering the second administrator fingerprint account. 6.1.2 Using Admin Key Setting Mode Insert the key, short press the key button once, then the blue light will flash 3 times, indicating that you can enter your fingerprint: Using the fingerprint you defined as an administrator, input 6 valid presses continuously on the panel, the blue light will flash once every time you press it, until the system collects... -
Page 12: Watch Cuff
7 Watch Cuff This unique patent design is best match for different size of watch brace- let/wrist. It can fit Max 53mm watch dial, watch thickness is up to 20mm, and the bracelet/ wrist diameter limited from 35 - 62mm. 60mm Detachable Part 60mm... -
Page 13: Led Light Stripe
The grade of the light strip, a total of 3 grades RGB Lights Symbol 8.1 LED Light Stripe There are 3 grades of the LED light 8.2 Ambient Light 1. Entering and exiting the state of the ambient light: The ambient light will automatically turn on when the machine is on, and the symbol of the ambient light will not be displayed. -
Page 14: Contact
Note: · Please do not remove or insert a watch during operation. · Please do not move the turntables by hand at any time. · Please make sure A/C connection is out if you don't use the watch winder for a longer time period. ·...
