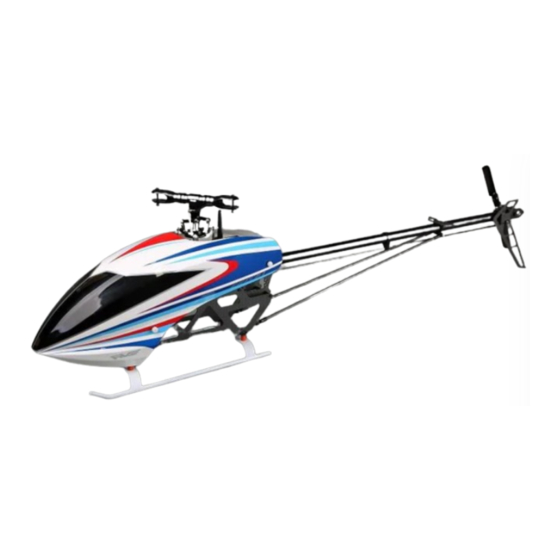

PHECDA E680
SPECIFICATION /
Item No. / 产品编号
Description / 产品名称
Power / 动力
Rotor Head / 主旋翼头型式
Length / 总长度(含头罩）
Width / 总宽度
Height / 总高度
Length / 长度
Main Rotor (Req'd)
Diameter / 旋翼直径
主旋翼
Length / 长度
Tail Rotor (Req'd)
尾旋翼
Diameter / 回转直径
Main Gear / Pinion 主齿轮 / 马达驱动齿轮
Gear Ratio (E:M:T) / 齿轮比
Full Equipped Weight
全备重量
Recommended of servo specifications
建议使用舵机规格
Recommended Power Configuration
动力搭配建议
Instruction Manual
天玑星
组装说明书
规格表
PHECDA E680
Electric Motor
Flybarless
1238 mm / (48.74" )
176 mm / ( 6.92" )
328 mm / ( 12.9" )
670 mm / ( 26.37" )
1489 mm / ( 58.62" )
92 mm / ( 3.62" )
255 mm / ( 10" )
96T Main Gear / 11T Pinion Gear
8.72 : 1 : 4.89
3520 g (12S 5300mAh)
Mini Servo for Swashplate
Mini or Standard Servo for Tail 中型或标准舵机(尾舵)
Battery 电池: 12S (6S x 2) 4000~6000mAh
ESC 电调: 120A+ (6S) 100A+(12S)
Motor 马达: 900-1100KV (6S) 450-540KV(12S)
E680
MK68000
天玑星 E680
电动无刷马达
无副翼控制系统
(124.2oz)
中型舵机(倾斜盘用)

Advertisement

loading
Need help?

Need help?

Do you have a question about the MK68000 and is the answer not in the manual?

Questions and answers

Related Manuals for RVE MK68000

Summary of Contents for RVE MK68000

  • Page 1 PHECDA E680 Instruction Manual E680 天玑星 组装说明书 SPECIFICATION / 规格表 MK68000 Item No. / 产品编号 Description / 产品名称 PHECDA E680 天玑星 E680 Power / 动力 Electric Motor 电动无刷马达 Rotor Head / 主旋翼头型式 Flybarless 无副翼控制系统 Length / 总长度(含头罩） 1238 mm / (48.74" ) Width / 总宽度...
  • Page 2 目录 Intro & Caution / 简介与警告 AMA Information / 特别注意事项 Flight Safety Checklist / 飞行前安全确认工作项目 Post Flight Inspection / 飞行结束安全检查事项 Caution / 注意事项 Other Item Required / 其它需求设备配件 Tools Required For Assembly / 组装工具需求 A Guide to the Instruction Manual / 说明书使用说明...
  • Page 3 Thank you for purchasing the RVE RC radio control helicopter. This new helicopter is the latest innovation by RVE RC. It has the perfect combination of flying stability and the agility for F3C flying. This helicopter is an excellent choice for flying enthusiasts like you. For convenient assembly and safe operation of the helicopter, please read the instructions carefully.
  • Page 4 FLIGHT SAFETY CHECKLIST / 飞行前安全确认工作项目 1. Make sure that the transmitter battery is fully charged before flying. 2. Make sure all control surfaces are operated properly before flying. 3. Do a range check of the radio before the first flight. The electronic equipment must operate properly at a range of at least 5 meters (18 ft) even with the transmitter antenna collapsed.
  • Page 5 OTHER ITEMS REQUIRED / 其它需求设备配件 RADIO SET / 遥控器系统 Standard Servos (For Swashplate) 电源开关组 Receiver Rx Battery 中型舵机倾斜盘用 Switch Harness 接收机电池 接收机 Transmitter (helicopter type Standard Servo only, 6 or more channels) (For Tail Gyro) 3-AXIS Gyro 发射机（需具备直升机控制功能 标准舵机尾舵用 的6通道以上遥控器） 3轴陀螺仪...

  • Page 6: Step

    A GUIDE TO THE INSTRUCTION MANUAL / 说明书使用说明 A: Indicates the assembly step number and the parts bags that Example 说明范例 are to be assembled. B: Displays actual size drawings, and part quantities used. Step 1-1 Tail Belt Tenssion Pulley assembly / 尾皮带压带轮組裝...

  • Page 7: Collar 3X5X2.3

    Step 1-1 Tail Belt Tenssion Pulley assembly / 尾皮带压带轮组裝 ESC Mount Assembly / 电调固定座组装 Parts Description Parts Description 零件名称 零件名称 Belt Pully Mount ESC Mounting Plate 皮带导向轮安装座 电调安装板 Collar 3x5x2.3 Fream Spacer 垫圈3x5x2.3 内侧板支撑柱 L32 Stainless Steel Pin 3x16 Flat Socket Screw, M3x10 不锈钢轴...
  • Page 8 Frame Inside Support Mount & Gyro, Receiver Mount assembly Step 1-3 内侧板前支撑板、陀螺仪、接收机固定座组裝 Parts Description 零件名称 Frame Inside Support Plate 内侧板前支撑板 Fream Spacer 内侧板支撑柱L32 Gyro Mount Plate 陀螺仪安装板 Tail Boom Clip Mount 尾管管夹 Receiver Mount Plate 接收机安装板 Flat Head Socket Screw, M3x8 沉头内六角螺丝...
  • Page 9 Step 1-4 Tail Drive Gear & Main Gear Set assembly 尾传动齿轮及主齿轮组裝 Parts Description Parts Description 零件名称 零件名称 Tail Drive Gear Cover Main Gear, 96T 尾皮带主齿轮挡边 主齿轮 96T One Way Clutch Housing Tail Drive Gear, 88T 单向轴承座 尾皮带主齿轮 88T Socket Screw, M2.5x6 杯头内六角螺丝...
  • Page 10 Step 1-6 Main Gear Set & Motor Mount assembly 主齿轮、电机固定座组裝 Parts Description Parts Description 零件名称 零件名称 One Way Bearing Shaft Motor Pinion Gear 12T 单向轴承内套 11T电机齿 Ball Bearing 10x19x5 轴承10x19x5 Pinion Gear Nut 电机齿螺帽 Pinion Gear Bearing Block 电机齿轴承座 Motor Mount 电机安装座...
  • Page 11 Upper Frame assembly Step 2-1 内侧板组裝 Parts Description 零件名称 Upper Frame (Left) 上侧板（左） Upper Frame (Right) 上侧板（右） Canopy Retaining Post Long 头罩固定柱 L26 Socket Screw M2.5x6 杯头内六角螺丝 M2.5x6 Button Head Socket Screw M3x8 半圆头内六角螺丝 M3x8 2-1 内侧板组装 Upper Frame assembly 左侧板为标准尺寸尾舵机...
  • Page 12 Upper Frame Bearing Block assembly Step 2-2 内侧板轴承座组裝 Parts Description 零件名称 Main Shaft Bearing 主轴轴承 10x19x5 Main Shaft Bearing Block 主轴轴承座 Frame Reinforcing Plate 侧板加强件 Servo Mount 舵机安装座 Socket Screw M3x6 杯头内六角螺丝 M3x6 Socket Screw M3x8 杯头内六角螺丝 M3x8 Socket Screw M3x12 杯头内六角螺丝...
  • Page 13 Step 2-3 Lower Frame assembly 2-3B 2-4 外侧板组装 Parts Description Parts Description 零件名称 零件名称 Lower Frame Socket Screw M2.5X6 杯头内六角螺丝 M2.5X6 外侧板 Battery Tray Rail 电池滑轨 Battery Tray Clip 电池卡扣 Landing Skid Brackte 脚架安装座 Canopy Retaining Post L=17 头罩固定柱L17 Button Head Socket Screw M3x8 半圆头内六角螺丝...
  • Page 14 Lower Frame & Upper Frame Unit assembly Step 2-5 机架总组裝 Parts Description 零件名称 In Side Frame Spacer 内侧板支撑柱L32 Out Side Frame Spacer 外侧板支撑柱L20 Socket Screw M3x10 杯头内六角螺丝 M3x10 Socket Screw M3x30 杯头内六角螺丝 M3x30 Socket Screw M3x40 杯头内六角螺丝 M3x40 Button Head Socket Screw M4x10 半圆头内六角螺丝...
  • Page 15 Step 2-6 Install Main Transmission 主传动系统组裝 Parts Description 零件名称 Main Shaft 主轴 Main Shaft Stopper 主轴定位环 Tail Boom 尾管 Tail Drive Belt 尾传动皮带 Socket Screw M3x22 杯头内六角螺丝 M3x22 Set Screw M3x3 内六角顶丝 M3x3 Nylon Nut M3 M3防松螺帽 2-6 2-7主传动系统组装 Install Main Transmission 安装主齿轮组时请先把尾传动皮带套在尾传动大齿轮上。此处需要先把主齿轮与主轴固定好以后，向上提拉主轴，主轴定位环向下压...

  • Page 16: Table Of Contents

    Step 3-1 Swashplate & FBL Washout Block assembly 倾斜盘、相位摇臂组组裝 Parts Description Parts Description 零件名称 零件名称 Swashplate M2 E Clip 倾斜盘 M2 E型卡 Swashplate Post 倾斜盘滑轨球头 Linkage Ball 3x3x5.5mm 3x3x5.5MM球头 Washout Arm 相位摇臂 Washout Arm Pin 相位摇臂轴销 FBL Washout Linkage A Arm 牛角摇臂...

  • Page 17: 相位摇臂

    Step 3-3 Rotor Grip & Rotor Head assembly 桨夹组、旋翼头组裝 Parts Description Parts Description 零件名称 零件名称 Rotor Grip Thrust Collar 12x16x0.5 主桨夹 桨夹推力轴承垫片12x16x0.5 Rotor Grip Lever Ball Bearing 8x16x5 桨夹摇臂 桨夹轴承8x16x5 Rotor Head Hub Thrust Bearing F8-16 旋翼头中联 推力轴承F8-16 Rotor Head Damper 85° Button Head Socket Screw M3x25 旋翼头减震胶圈...
  • Page 18 Rotor Head Linkage assembly Step 3-5 旋翼头连杆组裝 Parts Description 零件名称 Anti-Rotation Bracket 倾斜盘滑轨 Ball Link 球头扣 Linkage Rod M3x30 丝杆 M3x30 Socket Screw M2.5x6 杯头内六角螺丝 M2.5x6 Socket Screw M3x20 杯头内六角螺丝 M3x20 Nylon Nut M3 M3防松螺帽 3-5 旋翼头连杆组装 Rotor Head Linkage assembly 球头扣...
  • Page 19 Tail Gear Box assembly Step 4-1 尾波箱组裝 Parts Description Parts Description 零件名称 零件名称 Tail Unit Housing Button Head Socket Screw M3x6 尾波箱安装座 半圆头内六角螺丝 M3x6 Tail Housing Plate Set Screw M3x3 尾波箱轴承座 内六角顶丝 M3x3 Tail Housing Spacer Flanged Bearing 5x13x4 尾波箱轴承 5x13x4 尾波箱支撑柱...
  • Page 20 Tail Pitch Control System assembly Step 4-2 尾滑块、尾推控制组组裝 Parts Description Parts Description 零件名称 零件名称 Tail Pitch Control Link Tail Pitch Control Arm Collar 尾螃蟹爪球头扣 尾推轴承垫片 Tail Pitch Control Fork Tail Pitch Control Arm Lever 尾螃蟹爪 尾推摇臂 Tail Pitch Control Slider Bushing Tail Pitch Control Linkage Ball 尾滑套...
  • Page 21 Tail Rotor Grip assembly Step 4-4 尾桨夹组裝 Parts Description Parts Description 零件名称 零件名称 Tail Rotor Hub Socket Screw M3X8 尾桨中联 杯头内六角螺丝 M3X8 Tail Rotor Grip Socket Screw M3X18 尾桨夹 杯头内六角螺丝 M3X18 Thrust Bearing Set Screw M4x4 尾推力轴承 内六角顶丝M4X4 Thrust Washer 8x10x0.3 尾桨夹推力轴承垫片8X10X0.3 Ball Bearing 5x10x4 尾桨夹轴承5X10X4...
  • Page 22 Landing Skid & Tail Fin assembly Step 5-1 脚架、垂直尾翼组裝 5-1B Parts Description Parts Description 零件名称 零件名称 Landing Skid Battery Tray 脚架 电池安装板 Landing Skid Damper 脚架减震器 Lower Frame Support Plate 下侧板碳纤支撑片 Horizontal Fin 水平尾翼 Vertical Fin 垂直尾翼 Button Head Socket Screw M3x6 半圆头内六角螺丝...
  • Page 23 Tail Boom Support assembly Step 5-2 尾撑组组裝 Parts Description 零件名称 Carbon Tail Boom Support 碳纤尾撑杆 Tail Boom Support End 尾撑头 Socket Screw M3x10 杯头内六角螺丝 M3x10 Socket Screw M3x35 杯头内六角螺丝 M3x35 Socket Screw M2x11 杯头内六角螺丝 M2x11 Nylon Nut M3 M3自锁螺母 Nylon Nut M2 M2自锁螺母...
  • Page 24 Tail Pitch Control Likage assembly Step 5-3 尾舵拉杆组组裝 Parts Description 零件名称 Tail Pitch Linkage Connector 尾拉杆接头 Tail Pitch Carbon Linkage Rod 尾拉杆 Rod Guide 尾拉杆导向环 Rod Linkage Screw 丝杆M2.3x20 Ball Link 球头扣 Button Phillips Tapping Screw M2.6x10 半圆头内六角自攻螺丝M2.6x10 5-3 尾舵拉杆组 Tail Pitch Control Likage assembly 尾拉杆接头与碳纤拉杆之间需...
  • Page 25 Servo Installation Step 5-4 舵机安装 Parts Description 零件名称 Servo Nut 舵机固定块 Linkage Ball 2x5x2.5 2x5x2.5球头 Socket Screw M2.5x10 杯头内六角螺丝 M2.5x10 Socket Screw M2.5x8 杯头内六角螺丝 M2.5x8 Nylon Nut M2 自锁螺母 M2 Washer M2.5 M2.5垫片 5-4 舵机安装 Servo Installation 尾舵机可以选用中型或者标准舵机。 倾斜盘舵机摇臂 另购 另购...
  • Page 26 Canopy Installation Step 5-6 头罩安装 Parts Description 零件名称 Hand Screw M3x8 手拧螺丝 M3x8 Main Blade Holder 桨托 Hook And Loop Tape 电池魔术贴 Hook & Loop Strap L 设备绑带L Hook & Loop Fastening Tape L320 电池绑带 L320 Painted Canopy Phecda彩绘头罩 5-6 头罩安装 Canopy Installation 手拧螺丝不需要用螺丝胶...
  • Page 27 Radio System Setup / 遥控器系统设定 WARNING! / 警告! For safety, please ensure the motor has been deactivated and will not drive the main rotor head before performing following setting processes. You may just unplug 2 of the wires between the motor and the ESC or removing the motor pinion away from the main gear to avoid the rotor head rotating.
  • Page 28 SPARE PARTS / 零件包 Parts Description Parts Description 编号 零件包名称 零件包名称 编号 68050 68001 MAIN SHAFT TAIL PITCH CARBON LINKAGE ROD 尾舵拉杆组 主轴 68051 TAIL DRIVE BELT 68002 SPINDLE SHAFT 尾传动皮带 横轴 68052 68003 CANOPY (Blue) ROTOR HEAD HUB 彩绘头罩（蓝） 旋翼头中联...
  • Page 29 M3*6半圆头内六角螺丝 10112 30010 MAIN BLADE HOLDER M3*8 BUTTON HEAD SOCKET SCREW 桨托 M3*8半圆头内六角螺丝 30011 10113 VELCRO STRAPE L220 M3*10 RVE 毛钩一体绑带 BUTTON HEAD SOCKET SCREW M3*10半圆头内六角螺丝 30016 10114 MAGIC TAPE M3*22 BUTTON HEAD SOCKET SCREW 电池魔术粘 M3*22半圆头内六角螺丝 10115 M4*8 BUTTON HEAD SOCKET SCREW M4*8半圆头内六角螺丝...
  • Page 30 OPTIONAL PARTS / 改装配件 68074 尾压带轮组 10141 天玑星钛合金螺丝包 68072 钛合金正反牙拉杆 30014 头罩快拆固定座 TAIL PULLEY PHECDA TITANIUM ALLOY SCREW PACK(GR5) TITANIUM ALLOY TIE ROD L30 QUICK CONNECT CANOPY LATCH 68097 新天玑星彩绘头罩（绿） 68053 新天玑星彩绘头罩（橙） 68096 680一体主轴轴承座 NEW PHECDA E680 CANOPY(GREEN) NEW PHECDA E680 CANOPY(ORANGE) INTEGRATED MAIN SHAFT BEARING BLOCK -29-...
  • Page 31 Exploded View / 爆炸图检索 75031 10119 10109 75032 10020 68026 75033 10013 75034 68027 68023 68029 68028 68031 10020 10135 75029 68015 68055 10108 68025 68060 10117 68023 68058 68034 10135 68030 68025 68056 10109 10112 10101 68025 75084 68031 10135 68025 10120...
  • Page 32 Exploded View / 爆炸图检索 10106 75078 68032 10106 10131 10130 10130 10120 10103 68033 10109 10131 68061 10112 75079 10109 75035 75073 75071 75061 10101 10121 30006 L260 68065 30010 30007 L320 30011 30016 -31-...
  • Page 33 Exploded View / 爆炸图检索 10109 68022 68014 10120 10133 10118 68021 68001 10102 10109 68020 68017 68042 68018 68019 10123 68043 68047 10138 10137 10110 -32-...
  • Page 34 Exploded View / 爆炸图检索 10120 10132 68003 68005 68002 68009 10110 68012 75012 68011 10134 68010 10016 10015 68008 68013 10019 10139 68004 68016 68006 75016 75014 75017 75107 75018 68007 -33-...
  • Page 35 Exploded View / 爆炸图检索 68037 10111 75231 68039 10111 75059 75225 68046 10118 10112 68038 75114 75054 75052 68040 68041 68066 75087 10123 10129 10110 75086 10017 68043 10120 10008 68045 68044 10102 75115 10118 68051 10121 75043 10111 68064 68035 10120 68036...
  • Page 36 Exploded View / 爆炸图检索 68068 68073 68052 -35-...
  • Page 37 2020.5 二 天玑星E680 PHECDA E680...
