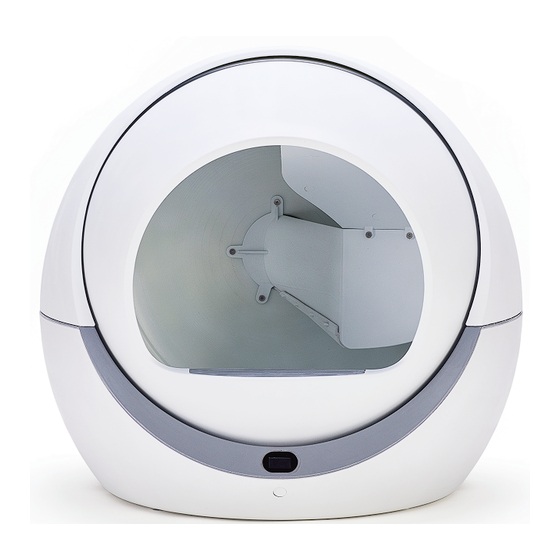

Petree ACC-18-01 Operation Manual

Fully automatic
cat litter box
Operation guide
Please read the instructions carefully before using the product, and keep them after reading
Hangzhou Beiqu Technology Co., Ltd.
Product components
4
5
6
7
4 1 Motor chassis (not washable） 7 5 Posterior closed deodorization litter can
Spherical plastics hood(washable) Data display screen
4 2 4 6
7 3 Patent separation structure 4 7 Multifunctional button
Sand removal pedal
4
Functional mode
Sleep mode:
The machine goes into standby state and stops working.
SLEEP
Automatically return back to normal operation mode after
10 hours.You can quit sleep mode manually in instant as well.
Emergency braking:
When the machine is running, you can press the
STOP
multifunctional button to stop operation immediately.
Wait mode:
When the machine is activated with the cat in it, it will goes
WAIT
to wait mode. Machine will go into operation after the cat
leaves. If the cat stays in the box for a very short time, wait
mode won' t be activated, and the machine won' t go into
operation after the cat leaves.
Operation mode:
In this mode, the cat litter box will start rotating to cleaning
GO
procedures. Under this mode, when the cat enters or
touches, the machine will immediately enter emergency
braking mode. After the cat leaves, it will continue to
complete the procedures.
Important safeguards
1. Place the machine on a stable and open ground to avoid vibration or interference
of data measurement.
2
2. Do not stack items on the machine in order to avoid interfering with data
measurement and prevent damage to machine components.
3
3.Do not place the machine at a humid environment and avoid placing it directly
under water to prevent damage to electronic components.
4. Do not place the machine on a soft surface (carpet for example) to avoid interfering
with data measurement.
5. Do not put the machine in direct or close contact with heat to prevent damage to
machine components.
6. Use spherical bentonite cat litter.
7. Please lift and move the product with both hands. Do not drag it on flat surface.
8. When wast is dumped from the litter can, please install the litter can in place.
1
9. For the safety of the cats, please only use it for cats that are at least three-month
old, and weighs over 1.5 Kg.
Product specifications
Product model ACC-18-01
Appearance size 624×587×537mm
Rated voltage 100-220V
Product material PP plastic
Minimum accuracy 0.01Kg
Noise ≤50dB （A）
Product weight 7.5Kg
Rated power 5W
Maximum range 20Kg
Maximum cat litter 4Kg
