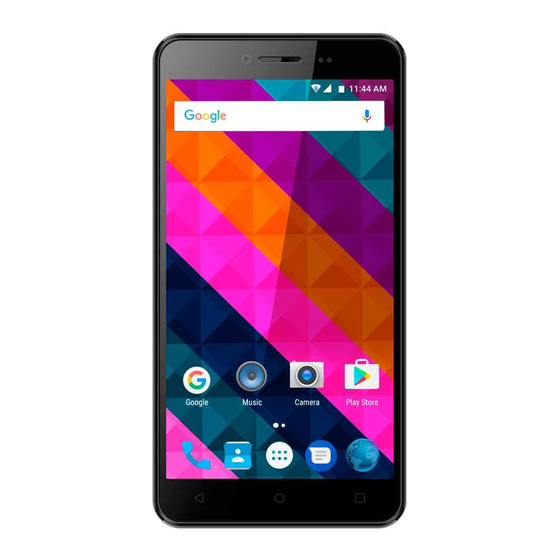

USER MANUAL
1

Advertisement

Table of Contents
loading

Related Manuals for PCD PCD509

Summary of Contents for PCD PCD509

  • Page 1 PCD509 USER MANUAL...

  • Page 2: Table Of Contents

    Table of Contents Safety Information ..................4 Appearance and Key Function ..............7 Introduction ....................9 Call Functions ..................... 10 Notifications Bar ................... 11 Contacts ..................... 13 Messaging ....................16 Bluetooth & Wi-Fi ..................17 Downloads ....................20 Play Store ....................22 Camera.......................
  • Page 3 Gallery ......................25 FM Radio ....................26 Sound Recorder ..................27 Calendar ..................... 30 Alarm Clock ....................31 Settings ...................... 32 Storage ....................... 37 Troubleshooting ..................38...

  • Page 4: Safety Information

    Safety Information below Please carefully read the terms Use Safely Do not use the phone in situations where it might cause danger. Transportation Safety Please observe all transportation laws and regulations. Please drive with both hands on the wheel. PLEASE DRIVE RESPONSIBLY - DO NOT TEXT AND DRIVE Hospital Safety Please follow hospital rules and limitations.
  • Page 5 Temperature Warning Do not subject your phone to extreme temperature conditions. Water Hazard Your phone is not waterproof. Keep your phone away from water or liquid to avoid damage. Emergency Calls Make sure your mobile phone is switched on and in a service area. In home screen, tap the phone key and dial the emergency number.
  • Page 6 - Do not expose batteries to extreme temperatures (below -8° C (18° F) or above 43° C (110° F). - Immediately stop using the battery if it produces an odor, cracks and leaks, overheats, distorts or has any other type of physical damage. - Avoid using the charger near or around liquids.

  • Page 7: Appearance And Key Function

    Appearance and Key Function Front Camera Volume Power Home Back Recent Apps...
  • Page 8 Rear Camera Flash...

  • Page 9: Introduction

    Introduction Installation of the SIM Card Warning: Please keep the SIM card out of the reach of children. The SIM card and its contact are easily damaged due to scratching or bending. Please use caution when carrying, installing or taking out the SIM card.

  • Page 10: Call Functions

    Call Functions At the dial keyboard, enter the phone number and then click the dial key. If dialing an extension, you may click the dial pad icon in the bottom of the screen to open the interface and enter the number of the extension.

  • Page 11: Notifications Bar

    Call Logs Every telephone number called and received will be saved in the phones call log. All numbers in the call log can be dialed directly by clicking the dial icon on the screen. When the number appears on the list, click it to view details.
  • Page 12 Pending Notifications and Applications Quick Notification Settings Notification Settings The notification settings window provides shortcuts to different phone settings for quick access. Click on any of the shortcut notification icons to power on or off. Note: To clear notifications, drag down the notification bar and click the clear notification icon on the upper right hand part of the screen (3 horizontal lines).

  • Page 13: Contacts

    Contacts Enter: Click on the applications menu and select contacts.  The default display is the phone contacts and SIM card contacts.  The contacts are organized alphabetically by default. Search Add Contact Click the Search icon to enter the contact search interface. Any numbers or letters associated with any of the contacts saved in the list will be shown in the search results.
  • Page 14 Add New Contact  Click the add contact icon (+) to add contact.  Select to save your contacts to your Google account, the phone or the SIM card.  You may enter different contact details which include adding a picture, name, telephone number, group, address, and email among other options.
  • Page 15 Delete Contact  Click on the Contacts icon to enter the phonebook.  Long press contacts to select that you wish to delete  Click option and select delete Note: You may also search for an individual contact in the phonebook. Once the contact is found click the contact name to enter the contact profile, click option and select delete to eliminate from the phonebook.

  • Page 16: Messaging

    Messaging You may use this function to exchange text messages and multimedia messages with your family and friends. The messages to and from the same contact or phone number will be saved into a single conversation so you may see the entire message history conveniently. Send an SMS Application Menu »...

  • Page 17: Bluetooth & Wi-Fi

    Add Recipient Attachment button Text message entry field Bluetooth & Wi-Fi Bluetooth is a short-range wireless communications technology that devices can use to exchange information and connect to different types of devices which include headsets and other devices. Power on Bluetooth Settings »...
  • Page 18  The Bluetooth icon will appear in the notification bar. The Bluetooth will then start to scan for all devices within its range and will display all available devices in a list.  In Bluetooth settings, all the devices found will displayed in a list. List of available Bluetooth devices Note: The maximum detecting...
  • Page 19 Power on Wi-Fi Settings » Wi-Fi and select ON to power on Wi-Fi  Click on the desired Wi-Fi network to be connected. Note: Unsecured networks can be connected to directly - secured networks require a password or credentials prior to connection. List of available networks and the network connection screen...

  • Page 20: Downloads

    Downloads The download section of the phone keeps sorted all of the files that have been downloaded on the phone. The section can display the download by date or by size. To clear the file from the list, click on the box to the left of the file and then select the delete icon.
  • Page 21 Gmail Gmail is Google’s free email service. To access the Gmail program, click the applications menu and click on the Gmail icon and either sign in with your existing account or create a new one. Note: In order to keep accounts streamlined with Google services, your Gmail account user name and password will be used for some Google programs which include: Google Play Store, Google Drive, Google +, Google Photos, and Google Wallet.

  • Page 22: Play Store

    Play Store Google Play allows you to download music, movies, and games directly to your device. To access the Google Play Store, click on the applications menu and then the Play Store icon. Search and select between different Play Store categories...

  • Page 23: Camera

    Camera Prior to use: Insert SD card before using the camera or video camera. All photos or videos taken by the phone are typically stored in the memory card for large storage capacity of images and videos. Open Camera Click the Applications Menu » Camera ...
  • Page 24 Switch back and front camera Capture photos & record video...

  • Page 25: Gallery

    Gallery Open Images Applications Menu » Gallery Pictures and videos are stored in separate albums Share Pictures...

  • Page 26: Fm Radio

    You may share pictures by sending them through different types of installed applications. You may also send pictures through the MMS message function by attaching a picture and also via Bluetooth. Adjust Image Click option and select edit to adjust images(or click edit icon). You may select from different effects that may include: Punch,Vintage,B/W,Bleach,Instant,Latte,Blue,Litho,and X Process.

  • Page 27: Sound Recorder

    Click to scan FM channels automatically then click to add any of your favorite radio stations. Radio Options Add Favorite Radio Stations FM Radio as Background Click on the Home key to move the FM Radio to the background. Sound Recorder You may send any recorded audio via Bluetooth or MMS and also have the option to make any recorded audio the phones default ring tone.
  • Page 28 Record  Keep the phone’s microphone near the sound source.  Click the record button to record the audio.  Click the stop button to stop recording the audio. Recording Time Recording Controls Note: All recordings are typically saved in the SD card folder. Please ensure the SD card is installed prior to recording.
  • Page 29 File Manager The file manager allows you to search and organize your stored phone files conveniently and efficiently through one program. Scroll and search through the File Manager for stored phone files. You may also search or add new folders from the File Manager interface...

  • Page 30: Calendar

    Calendar The calendar helps keep track of your life’s most important moments in one application. Long press the specific day or hour you wish to enter a new event to...

  • Page 31: Alarm Clock

    Alarm Clock Click on the Clock icon then click the alarm tab to enter the alarm clock interface. This option allows you to add and edit alarms. Click to edit or delete alarms...

  • Page 32: Settings

    Settings Wireless & Networks Wi-Fi  Settings » Wi-Fi to power on. When on, the Wi-Fi will automatically search for available networks. Any unsecured network can be used directly and any secured network requires a password or credentials prior to connection. Bluetooth ...
  • Page 33 Note: When in flight mode, all network connections will turn off automatically. Device Sound & notification This option sets the phone ring tone settings for receiving calls and notifications. Some of the settings include:  Vibrate, volume, ring tones, ring tones notification, dial touchpad, and haptic feedback and tones Display ...
  • Page 34  Manage applications - Manage and delete installed applications  Running Applications- Press the ‘Force Stop’ button to stop any of the applications listed and removes from the running apps list. Personal Location  High Accuracy – Use GPS, Wi-Fi and Mobile Networks ...
  • Page 35 To change a blocked PIN code, you will need to unlock the SIM lock then go to the Change Password screen. The phone will automatically prompt you enter the old PIN code and ask to enter a new PIN code twice.
  • Page 36  Date and Time adjustment.  Select Date Format - There are 3 kinds of formats you can choose from: Month-Day-Year, Day-Month-Year and Year-Month-Day, and Year-Month-Day which is the default setting Schedule Power On & Off  Schedule power on and off Accessibility ...

  • Page 37: Storage

    About Device  Phone information status and firmware updates Storage Connect the phone with the USB cable provided. Once connected, a connection interface will appear. In the connection mode interface, select one of the available options to transfer files to your computer. You may select to transfer files through MTP.

  • Page 38: Troubleshooting

    Troubleshooting Below is a list of common problems that may occur when using your mobile phone. Try these easy troubleshooting steps to resolve any type of issues you may encounter. The phone does not power on  Press and hold the power key until the startup sequence appears on the display. ...
  • Page 39 The standby time is too short  Please keep in mind that standby time relates directly to phone usage (Internet, Text, Voice Calls, Maps, etc.).  Batteries typically have to be replaced after a year of use. The phone cannot connect to the network (Voice or Data) ...
  • Page 40 settings and codes) The caller ID does not display on incoming calls  Contact your local network service provider and verify you have the caller ID feature enabled on your account or verify if the caller may have blocked his number from appearing. The caller cannot leave a voicemail message ...
  • Page 41 FCC Statement 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2.
  • Page 42 This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or...
  • Page 43 SAR Information Statement Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radiofrequency (RF) energy set by the Federal Communications Commission of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population.
  • Page 44 highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network.
  • Page 45 FCC and can be found under the Display Grant section of http://www.fcc.gov/ oet/fccid after searching on FCC ID: 2ALQJ-PCD509 Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications Industry Asso-ciation (CTIA) web-site at http://www.wow-com.com.
  • Page 46 averaged over one gram of tissue. The standard incorporates a sub-stantial margin of safety to give additional protection for the public and to account for any variations in measurements. Body-worn Operation This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum separation distance of must be maintained between the user’s body and the handset, 10mm...
