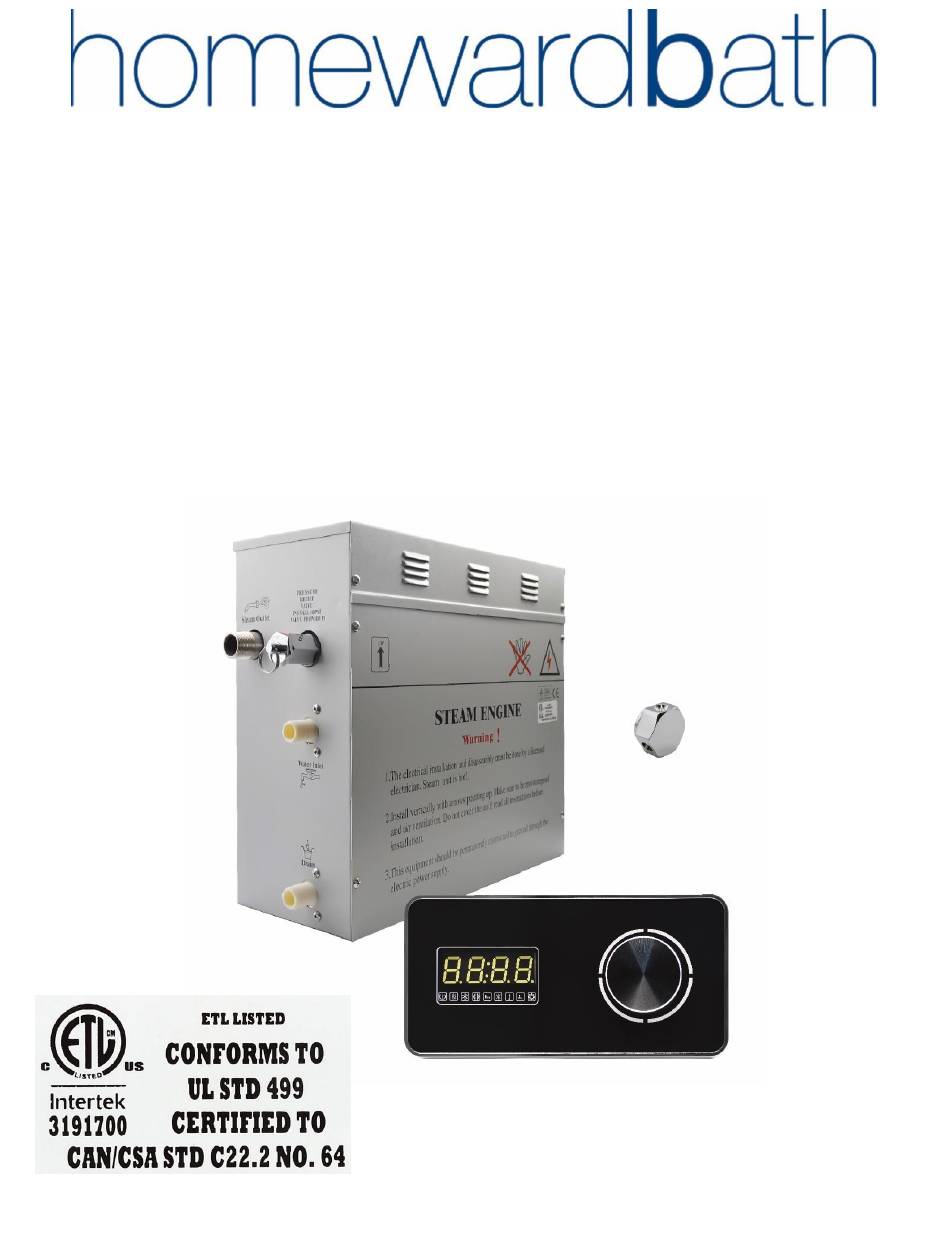

- Page 1 Steam Planet Superior Encore Steam Generator Installation & Operation Manual (6kW, 9kW, 12kW, 18kW & 24kW) Rev 6/2022...
-
Page 2: Table Of Contents
Table of Contents Safety Notes .................................... 3 Warnings ....................................3 Choose your size of machine ..............................4 Parameter ....................................4 Dimensions ....................................4 Parts List ....................................5 References ....................................5 Wiring Diagram ..................................6 Wiring Introduction ................................. 7 Module Introduction ................................7 Reset Introduction .................................. -
Page 3: Safety Notes
Safety Notes • is a safety warning symbol and it should be observed strictly. Failure to do so may cause bodily injury and financial loss. • The power supply must be installed according to the local standard and with GFCI (Ground Fault Current Interrupter.) Test the GFCI before using to confirm its security and validity. -
Page 4: Choose Your Size Of Machine
Choose your size of machine Measure the length, width, and height in feet of the current steam shower or bathtub room. Example; L:7 x W:5 x H:8 = 280 Cubic feet x 2 to get complete cubic measurement Note: Multiplying the cubic feet by two is done to account for heat loss due to the room having natural stone such as granite or marble, exterior walls, ceiling height exceeding 8 feet, ceramic tile, or glass walls. -
Page 5: Parts List
15in chroma therapy power wire for lights, already attached to Bluetooth box 2 – 15in speaker wires, already attached to Bluetooth box 2 speakers with attached 36in wires References Model Description GS08-HW Steam generator GH21EE Keypad GH21-HT Bluetooth box GH21-PB... -
Page 6: Wiring Diagram
Wiring Diagram... -
Page 7: Wiring Introduction
The system consists of power box (GH21-PB), control module (GH21EE), Bluetooth module (GH21-BT) and steam module GS08-HW. Power box (GH21-PB) provides 14v DC. The keypad controls the system and there are two temp sensor connectors: internal temp sensor and external sensor. -
Page 8: Choosing The Proper Location
Choosing the proper location Recommended locations for proper installation: 1. The steam box should not be located further than 15 feet away from the steam room. 2. The steam generator should not be installed inside the steam room. 3. The steam generator should not be installed outdoors or in any place that will influence the security of the machine. -
Page 9: Keypad Introduction
Keypad Introduction... -
Page 10: Dual Keypad Setup
Dual Keypad Setup When installing one inside and one outside of the shower: since both keypads have built in temperature sensors, they need to be reset. 1. Rotate the dial so the Temperature Icon is highlighted on the keypad, the current temperature will be displayed. 2. -
Page 11: Common Installation Problems
Common Installation Problems Is the unit connected to 220V? The unit has no neutral wire, just L1, L2 and ground. To properly test for the 220V, you must test the L1 and L2 wires together and you should get 220V. If you test individually, you will get a false reading. Power box issues? Make sure the wiring that connects the power box to the keypad and steam generator is not damaged. - Page 12 2. Connect the steam generator according to the drawing. a. Water inlet: G1/2 thread connector. b. Drain: G1/2 thread connector. Must be copper for at least first 3ft from the generator. c. Steam outlet: G3/4 thread connector d. Steam line: Must use copper. Insulate the line with high temp 212 plus temp rating insulation. e.
- Page 13 3. Keypad and steam outlet are installed according to the drawing below. Steam generator must be installed out of the steam enclosure. The keypad can be installed according to the situation on site. Drill ɸ20 hole for wire. Tear the sticker off keypad and stick it on the wall. ▪...
-
Page 14: Circuit Diagram For 6Kw & 9Kw
Circuit Diagram for 6kW & 9kW... -
Page 15: Circuit Diagram For 12Kw
Circuit Diagram for 12kW... -
Page 16: Maintenance
This procedure will also clean the water level sensor probe. If the tank is not draining please call 1-866-783-2661 or 216-587-6790 for assistance. Parts Requests Please visit homewardbath.com/support to submit a request. If you require additional assistance, call 866-783-2661. Warranty Information & Registration Please visit our website: homewardbath.com/warranty-registration...
