VAR-96-8CH / VAR-CTLV2
CONTROLLERS
VoiceArrest Sound Masking System User Guide
Content
1 Overview ������������������������������������������������������������������������������������������2
2 Specifications ��������������������������������������������������������������������������������3
3 Connections �����������������������������������������������������������������������������������5
4 Installation ������������������������������������������������������������������������������������ 6
4.1 Safety Instructions ���������������������������������������������������������� 6
4.2 Securing the Controller . �������������������������������������������������7
4.3 Powering the Controller ��������������������������������������������������7
4.4 Connecting Loudspeakers �������������������������������������������� 8
4�4�1 VAR-96-8CH ����������������������������������������������������������� 8
4.4.2 VAR-CTLV2 ������������������������������������������������������������ 9
4.6 Connecting Volume Control Knobs �������������������������11
4.7 Connecting Music and Paging Sources ������������������ 12
5 Configuration ������������������������������������������������������������������������������ 13
5.1 Project Manager Software ������������������������������������������ 13
5.2 Touch Screen Interface �������������������������������������������������14
5.2.1 Home Interface ������������������������������������������������������14
5.2.2 Sound Masking Volume Interface ������������������14
5.2.3 Sound Masking Equalizer Interface ���������������14
5.2.4 Music Volume Interface ������������������������������������ 15
5.2.5 Settings Interface ������������������������������������������������ 15
5.2.6 Pass-Code Interface ������������������������������������������� 15
5.2.7 Display Interface ������������������������������������������������� 15
mpsacoustics.com | 866-557-8438 | PO Box 41 Allen, TX 75013
MP
20220912

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VAR-96-8CH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MPS VAR-96-8CH

  • Page 1: Table Of Contents

    4.1 Safety Instructions ���������������������������������������������������������� 6 4.2 Securing the Controller . �������������������������������������������������7 4.3 Powering the Controller ��������������������������������������������������7 4.4 Connecting Loudspeakers �������������������������������������������� 8 4�4�1 VAR-96-8CH ����������������������������������������������������������� 8 4.4.2 VAR-CTLV2 ������������������������������������������������������������ 9 4.5 Connecting Active Volume Control Sensors ������ 10 4.6 Connecting Volume Control Knobs �������������������������11 4.7 Connecting Music and Paging Sources ������������������...
  • Page 2: Overview

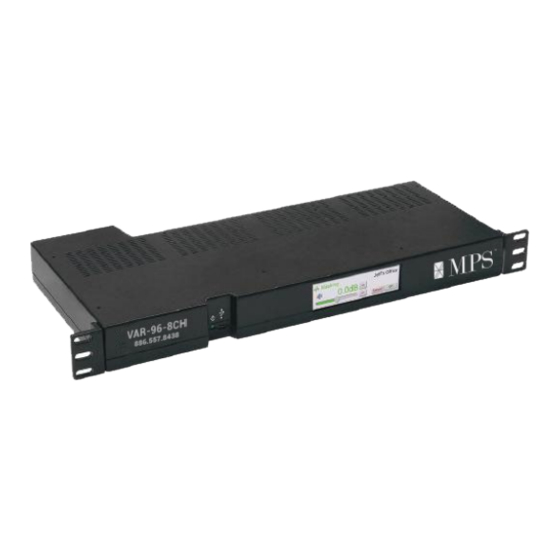

    The rack-mount series of controller offers powerful amplifiers ideal for larger sound masking systems. The VAR-96-8CH controller features powerful amplifiers capable of driving up to 12 speakers per zone for a total of 96 loudspeaker per controller. The VAR-CTLV2 controller is a line-level version of the VAR-96-8CH which requires external amplifiers to drive loudspeakers.
  • Page 3: Specifications

    Specifications VAR-96-8CH VAR-CTLV2 Can be a Project Master? Outputs Nb. Outputs Max Speakers/Output Max Speakers/Controller Sound Masking 30 to 92 dBA in 0.1 dB steps and Volume 90 dB dynamic in 0.1dB steps and mute mute Equalizer 23 1/3 octave bands (63 Hz to 10 kHz) or 500 narrow bands automatic equalizer...
  • Page 4 Volume Range 20 dB, at 0.5dB step and mute Security User defined passcode Volume Schedule Schedule 24 hour periods per day, 7 days Volume 0.1dB steps Transition Ramp Instant, 2m30, 5min, 10min, or 15min Independent for each output channel (Sound Masking and/or Paging and Schedule Mixer Music) Daylight Saving Time...
  • Page 5: Connections

    3 Connections VAR-96-8CH VAR-CTLV2 mpsacoustics.com | 866-557-8438 | PO Box 41 Allen, TX 75013 20220912...
  • Page 6: Installation

    4 Installation 4.1 Safety Instructions • Read and keep these instructions. • Heed all warnings and follow all instructions contained within this manual. • Install in accordance with the manufacturer’s instructions. • Clean only with dry cloth. • Do not install near water. •...
  • Page 7: Securing The Controller

    4.2 Securing the Controller The VoiceArrest controllers with a rack-mount form factor are designed to be installed in a standard 19” rack-mount cabinet using the provided mounting brackets. The enclosures are 1.7” high and occupy a 1U space. It’s recommended to leave some room above each controller to allow air circulation.
  • Page 8: Connecting Loudspeakers

    18/2 FT4. All speakers on a channel are connected in parallel using twist-on connectors. Refer to the Design Guidelines Handbook for guidelines on loudspeaker layout and zone definition according to room characteristics. Speaker Load Specifications for VAR-96-8CH Speaker Model VA-SPK VA-DIRECT...
  • Page 9: Var-Ctlv2

    4.4.2 VAR-CTLV2 The VAR-CTLV2 does not include power amplifiers. External amplifiers must be used to drive loudspeakers. The recommended power amplifier is the Ashly TRA-2150. Using the VAR-CTLV2 paired with an external amplifier allows to increase the number of speakers. Note that the output level may be reduced due to a lower sensitivity tap setting on the speakers.
  • Page 10: Connecting Active Volume Control Sensors

    4.5 Connecting Active Volume Control Sensors The best location to put the active sound masking volume control sensor is through the acoustic tile. Sensors must be installed, if possible, in a central position to catch most of the noise in the zone. Connect the sensor with 22 AWG shielded cable and BCN connectors.
  • Page 11: Connecting Volume Control Knobs

    4.6 Connecting Volume Control Knobs Up to two volume control knobs can be connected to control the sound masking volume and/or the music and paging volume. Use the VA-RC Zone Volume Control Knob for this application. VA-RC Zone Volume Control Knob Use 22 AWG shielded cable to connect the volume controls.
  • Page 12: Connecting Music And Paging Sources

    4.7 Connecting Music and Paging Sources The auxiliary inputs can be used to connect any line-level music or paging source to the system. The auxiliary input range is ±2 V. Only mono channel sources can be connected (no stereo). It is recommended to use the auxiliary input 1 for paging as this input features a trigger allowing to lower the volume of masking and music during the public announcement.
  • Page 13: Configuration

    5 Configuration 5.1 Project Manager Software The controllers are configured using the VoiceArrest Project Manager software. The Project Manager software communicates with the controllers using either: • USB, • WiFi, • or Ethernet. All these communication interfaces can be used transparently on the same project meaning that VoiceArrest controllers can be connected using USB, Wi-Fi or Ethernet without limitation.
  • Page 14: Touch Screen Interface

    5.2 Touch Screen Interface The VAR-96-8CH and VAR-CTLV2 offer a touch-screen interface that allows adjusting basic parameters directly on the front panel. 5.2.1 Home Interface The Home interface allows the user to select the zone and adjust the volume of either masking or music by clicking on the corresponding button.
  • Page 15: Music Volume Interface

    5.2.4 Music Volume Interface The Sound Masking Volume interface allows to define the music volume for the selected zone. Drag the cursor or click on the Up/Down buttons to adjust the volume. Click on the Mute button to mute. 5.2.5 Settings Interface The Settings interface allows defining an access code, adjusting the display settings such as brightness and accessing the device information such as the serial number.
