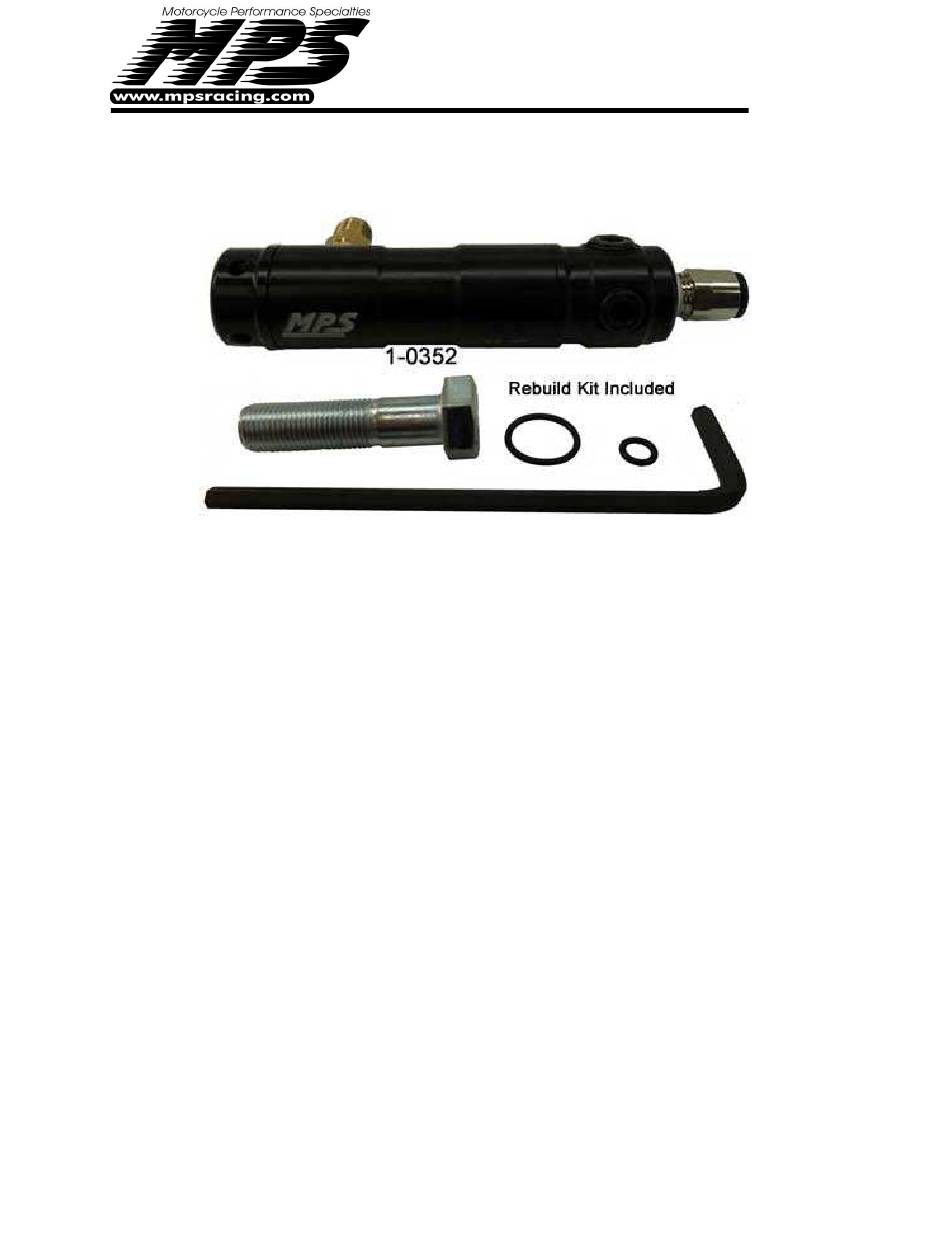

MPS 1-0352 Quick Start Manual

Adjustable pressure regulator

MPS ADJUSTABLE PRESSURE REGULATOR

The pin valves on CO2 bottles operate like schrader valves on a tire. Pushing down the pin

opens the valve. The pin valve actuator works by pushing down on the pin when you screw the

on-off knob clockwise. Since CO2 is a liquid in the bottle and the regulator can't regulate liquid,

you must mount the bottle so that only gas and no liquid can get into the regulator. The regulator

has a female 1/8" NPT outlet port and four (4) 1/8" NPT ports that comes plugged. We fit a fitting

that will accept ¼ poly line into the outlet. Our Adjustable Pressure Regulator allows pressure

adjustment of CO2 and/or Nitrogen high pressure bottles from 0 – 160 PSI. -The regulator is set

with a 3/16" allen wrench. We recommend having a small tank between the regulator and the air

valve.

To install and set up the MPS Paintball Regulator assembly follow the directions below.

Construction:

Inlet Pressure:

Adjustment Range:

Resettable Relief Valve:

Lubrication:

Adjustment:

Tournament Cap:

Piston:

Maintenance kit included

Phone: 321.972.8282 – Fax: 321.972.5123

380 Orange Lane – Casselberry, Florida 32707

Innovative Racing Electronics

MADE IN USA

Aluminum sand blasted black anodize.

Max 1000 PSI

0 -160 PSI

140-150 PSI

Any Silicone based, non-petroleum lubricant.

3/16" Allen wrench

Can be locked out with zip tie.

Threaded with 1/2-20 female thread for ease of maintenance.
