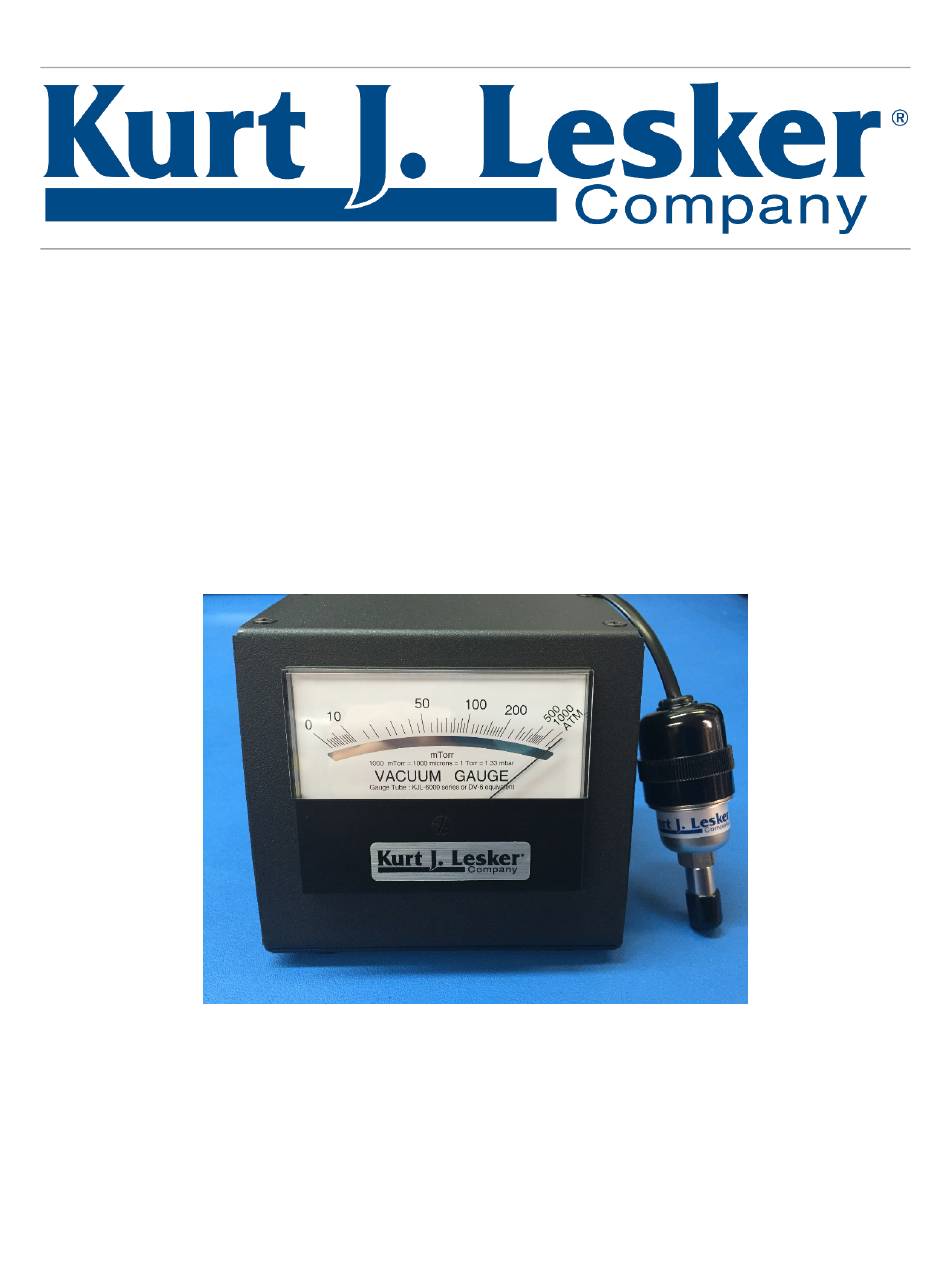

- Page 1 KJL-205A Operation Manual YOU MUST READ THIS MANUAL BEFORE USE...
-
Page 2: Table Of Contents
Table of Contents Section 1: Overview ..........................3 Section 2: Quick Start ........................... 4 Section 3: Installation ......................... 5 Section 4: Connections ........................6 Section 5: Set Points ..........................6 Section 6: Analog Out ........................... 7 Section 7: Field Calibration ......................8 Calibration Procedure ............................ -
Page 3: Section 1: Overview
Section 1: Overview The Kurt J. Lesker KJL-205A, is a rugged, modern vacuum measurement instrument designed to make vacuum measurement easy through the use of a familiar meter movement. Electronically, it is a highly accurate digital vacuum gauge utilizing field- proven thermocouple vacuum sensor technology. -
Page 4: Section 2: Quick Start
2. Thermocouple Vacuum Gauge Tube if ordering anything but KJL-205ANT 3. Quick Start guide or (this) User Manual KJL-205ABM KJL-205A Easy to use steps: 1. Plumb the thermocouple sensor into the system to be measured, taking care to keep the stem down 2. -
Page 5: Section 3: Installation
Section 3: Installation If the KJL-205A or KJL-205ANT is purchased, it needs to be mounted. Please use the graphic below for guidance. 1 9 2 5 R o u t e 5 1 , J e f f e r s o n H i l l s , P A , 1 5 0 2 5 8 0 0 . -
Page 6: Section 4: Connections
Section 4: Connections The only required connections for operations are power and sensor. The connections are already made in the KJL-205ABM and KJL-205ABM3X units that come fully installed in a metal enclosure, and there is no need to disassemble the unit. The only reason you would disassemble a KJL-205ABM or KJL-205ABM3X enclosure would be to access the analog output and relay connections. -
Page 7: Section 6: Analog Out
Step 1. Press the set point switch. This redirects the meter movement to be controlled by the potentiometer adjustment. Step 2. While pressing the set point switch, adjust the set point adjustment until the meter movement indicates the vacuum level at which that you’d like the relay to activate. Step 3. -
Page 8: Section 7: Field Calibration
POT R2 “CALIBRATE” so meter reads 10.0 mV 3. Raise pressure to 200 millitorr. Adjust POT R1 “SPAN” so KJL-205A indicates 200 4. Pump system to 10 millitorr. Adjust POT R4 “ZERO” so the KJL-205A indicates 10. Caution needed that vacuum system is holding at 10 mTorr 5. -
Page 9: Section 9: Servicing And Maintenance
For more information, please contact the Kurt J. Lesker Company. 1 9 2 5 R o u t e 5 1 , J e f f e r s o n H i l l s , P A , 1 5 0 2 5 8 0 0 . -
Page 10: Notes On Calibration
Notes on calibration The instrument is calibrated in nitrogen, which has thermal properties virtually identical to air. Other gasses will affect the readings by an amount proportional to the thermal conductivity of the gases. In most cases, the gases present in a vacuum system will be air, nitrogen, or oxygen, and no appreciable errors will occur. - Page 11 Input Voltage 5.0 Volts DC external power, 110/220VAC 50-60 Hz using supplied power adapter Maintenance Interval 1-10 years depending on use Overall Dimensions, front panel 2.75 in high, 3.6 in wide, 2.3 inches deep Ambient Operating range 32°F to 100°F Relay Contacts Type C (Normally Open, Common and Normally Closed) 24VDC, 1 Amp...
-
Page 12: Section 12: Understanding Torr
Depth Face Thickness 0.42" 3.5" Face to Rear + cable bend 3.08 surface to rear + bend 3.1" Face to rear of boot 2.68" surface to rear 2.95" Face to rear + cable bend without boot Spare Parts Sensor: KJL-6000SS Power Supply: PS-TCGAU-1 10’... - Page 13 This pressure is due to the weight of all of the air in the earth's atmosphere above any particular square inch. This 14.696 PSI is equivalent to the pressure produced by a mercury column of approximately 29.92 inches high or .76 meters (~ 3/4 of a yard) or 760 millimeters of mercury. Atmospheric pressure varies greatly with altitude.
-
Page 14: Section 13: Terms Of Use, Limited Warranty & Liability Waiver
Kurt J. Lesker Company to do otherwise. Any violation of this provision shall give rise to an indemnification of Kurt J. Lesker Company by you, for any third party claims arising out of such violation. 1 Year LIMITED Warranty: All Kurt J.
