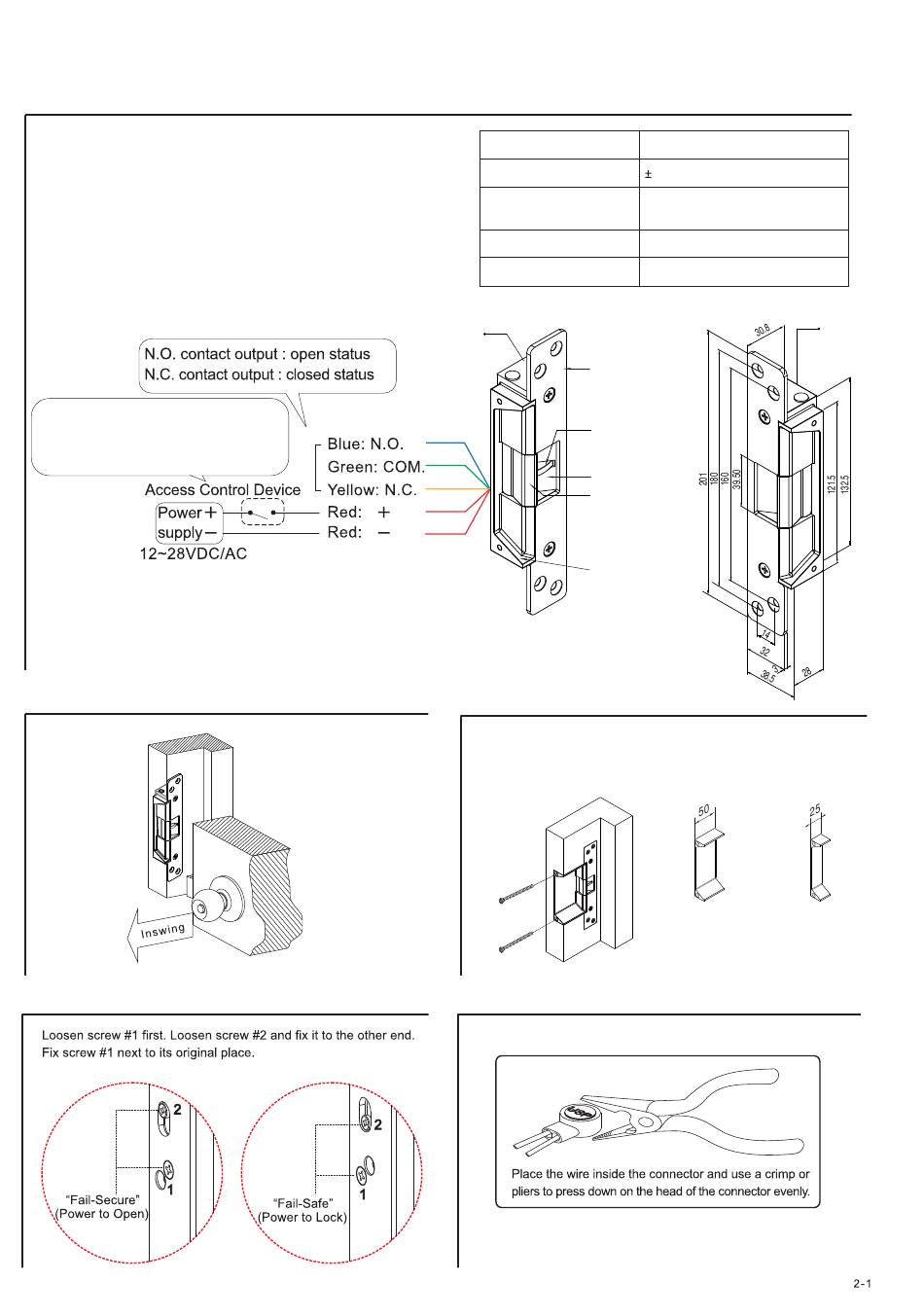

Wiring Diagram
Polarity Free Connection
The GK760 series electric strike is designed for use with cylindrical locksets
with a 18mm throw latchbolt. It can be both electrically and manually
operated if used with mechanical locksets.
Door Status Output
N.C. contact or access relay for
fail-safe setting
N.O. contact or access relay for
fail-secure setting
Mortise Mount in Wooden Frame
Fail-safe/ Fail-secure Conversion
Wooden Frame
Copyright © All Rights Reserved. P-MU-GK760 Published: 2015.11.19
Electric Strike Installation Instructions
Operating Voltage 12~28VDC/AC
Voltage Tolerance
Current Draw
Operating Temperature -10°C~+45°C
Humidity 0~95%
GK760
Faceplate
Door Status
Latch Recess
Keeper
Lip
Optional Brackets
Lip extension brackets are available for wider jambs.
Butt Splice (IDC) Connector
GK760 Series
15%
230mA/12VDC, 140mA/28VDC
440mA/12VAC, 230mA/28VAC
Switch
Unit:mm
LP-GK750-050
LP-GK750-025
50mm
GK770
(unmonitored)
25mm
