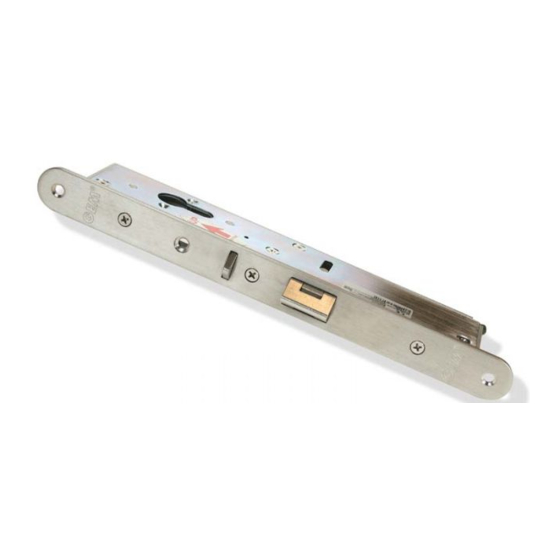

ML-300-SW
Specification
Operating Voltage» 12~24VDC/AC
Voltage Tolerance» ±10%
Current Draw» 250mA/12VDC; 150mA/24VDC
Version Changeable» Fail-safe or Fail-secure
Operating Temperature» 14°F to 120°F (-10°C~+49°C)
Humidity» 0~85% non-condensing
Lock bolt sensor switch output (For ML-300-SW):
SPDT rated 3A/125VAC
Solenoid testing» Tested to 1,000,000 cycles
Net Weight» 815g
Just applicable to vertical installation

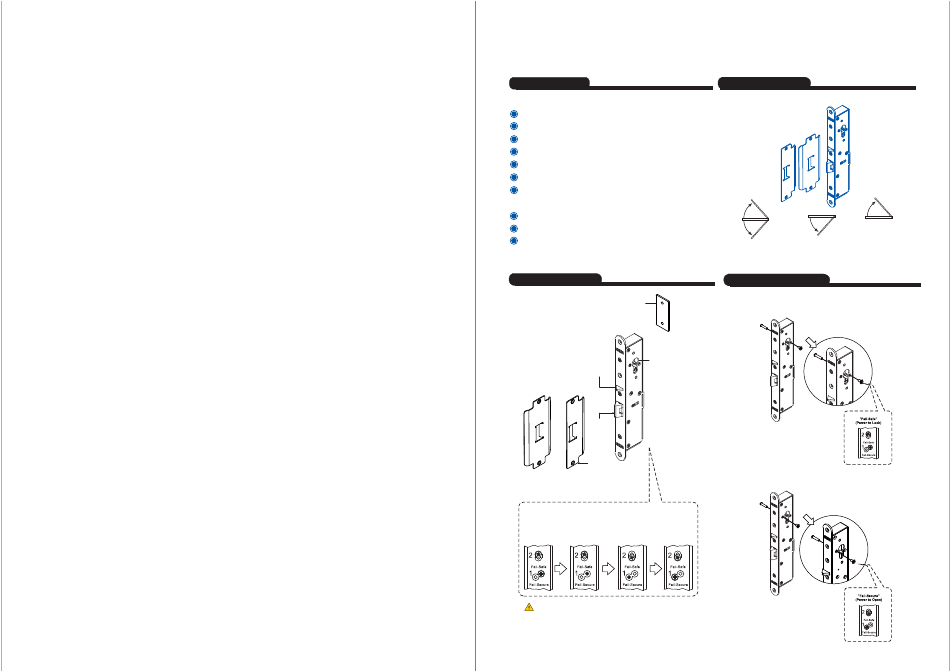

Packing Contents
Fixing Lug
Euro profile
key cylinder
NIB
Lock bolt
Strike Plate
For double swing door For single swing door
Version Changeable:
Take out the Screw 1 , release screw 2 , move the
position and then tighten both screws.
"Fail-Safe"
"Fail-Secure"
(Power to Lock)
(Power to Open)
Caution:
Do not completely remove screw 2 (as marked in the figure)
as the interior solenoid might fall off.
Copyright © All Rights Reserved. P-MU-ML301-SW Published: 2020.04.29
Electric Lock
Installation Instruction
Double Swing Doors
Double swing door
Outswing
Stud bolt Position
For fail-safe mode
For fail-secure mode
Inswing
3 - 1
