Summary of Contents for Vybra VS001-W

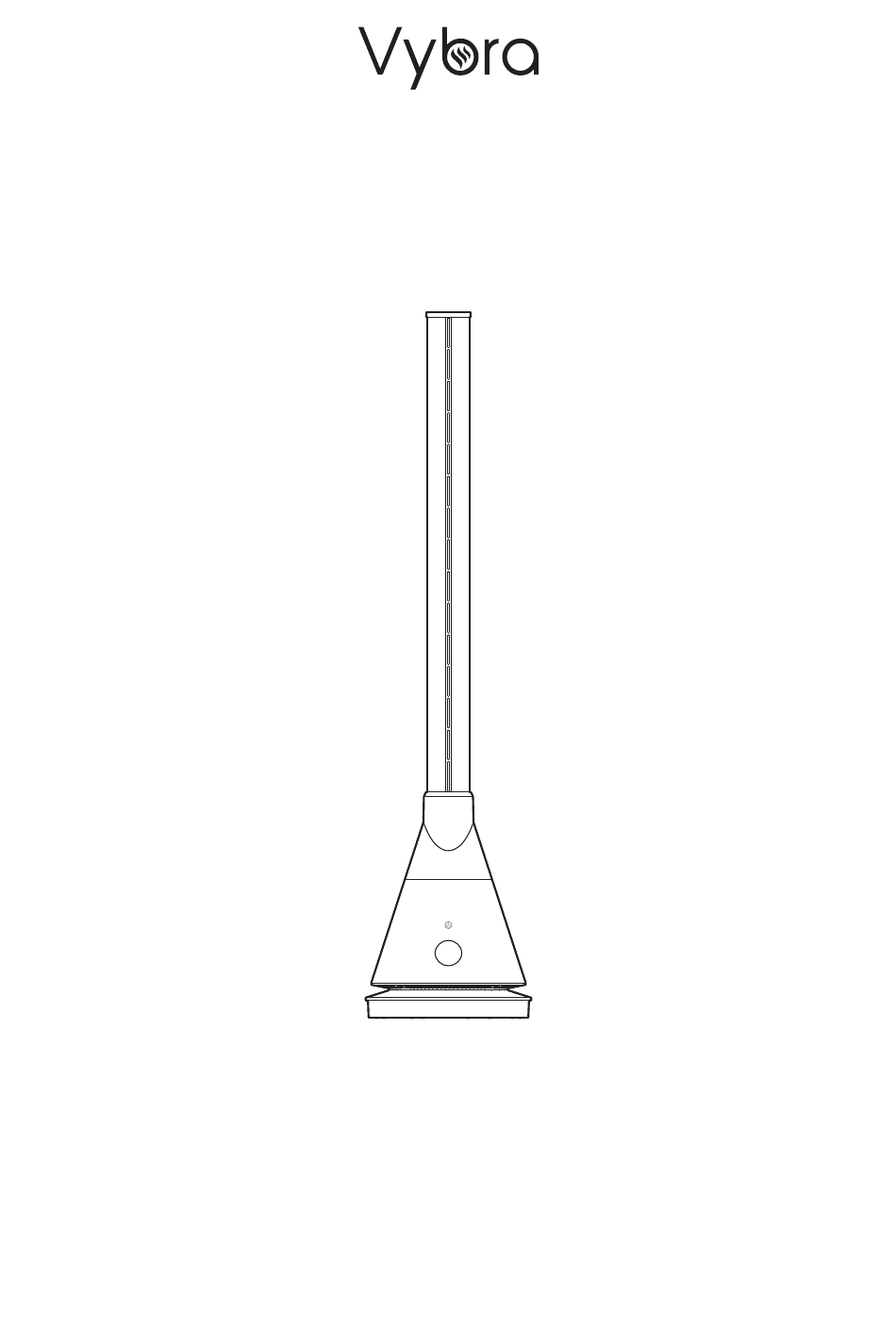

- Page 1 Multi -3-IN-1 Heater｜Cooling Fan & Air Steriliser VS001-W (White) VS001-B (Black) Please read and keep it before using the product. Made in China 5 Kingsway Andover UK Vybra...
-
Page 2: Important Safety Information
Important Safety Information WARNING When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock and injury to persons,including the following: 1.This product is only suitable for indoor use and should not be used outdoors; 2. - Page 3 11. Do not use this heater around the bathtub, spray head or swimming pool； 12. This product must be equipped with a Ce-UKCA-approved fixed socket that is consistent with the rated working current. Do not use a mobile multi-purpose socket. 13.
-
Page 4: Product Description
Cover Air outlet Air duct Body Power button Display Air Inlet Power Cable Base Switch Basic Parameters Model No: VS001-W (White) VS001-B (Black) Rated Voltage: 220-240V~ Rated Frequency: 50-60Hz scillating Angle: 0° Output Power: 2000W(H)/30W(B) Timier:1- h... -
Page 5: Remote Introduction
Remote Introduction ① ⑤ ⑥ ② ⑦ ⑧ ③ ⑨ ④ Cool Mode Oscillating Air volume Air reduction Warm Mode Strong Wind Timing Sleep Wind Add Temperature UV sterilization Reduce temperature Note: The main buzzer will make a “beep” sound when operating the remote... - Page 6 The device can be switched on and off by pressing the "ON & OFF" button Press Sleepmode button on the remote control. The display show nd the wind speed become minimum. Press again t it the sleep mode. ou can als it the current mode by pressing the Wind Strength + button.
-
Page 7: Remote Operation Introduction
Remote Operation Introduction The remote control should be pointed at the remote control signal receiver on the display to maximize the remote control signal. Effective distance: 5M Signal receiver Warning: A phenomenon that occurs due to the overlap of the frequencies of the remote control, in order to avoid misuse, please operate remotely: 1.This bladeless heater may react when using a remote device for other appliances. - Page 8 Heating Mode Instructions Press the warm mode button and the display shows the ambient temperature , and the display Press temperature button to set the temperature , which can be set to 1 - 30 ° C . will flash digitally Set temperature should be higher than the ambient temperature so that the heating function will be turned on;...
- Page 9 Host Power Button : Turn off : Turn on Inserte the plug into socket, turn on power switch and the machine enters the standby state: Click the power button of the host, the buzzer will prompt you to click, and the fan will start running. Press and hold the power button for 2 seconds, the buzzer will prompt you twice, and then stop running after you release the hand.
- Page 10 Installation location and precautions Location Please place the fan in a horizontal position. If there is a slope, should on a soft surface to avoid fan falling over; please do not use in high temperature and humidity (bathroom, kitchen). Do not cover, high temperature! keep distance Do not place anything...
- Page 11 Battery installation method and troubles hooting analysis Battery installation method battery cover 1.Open the remote control battery cover; 2. Load two new AAA (No. 7) dry batteries; 3. Close the battery cover of the remote control. Please insert the battery correctly Machine Malfunction analysis Malfunction phenomenon Cause Analysis...
- Page 12 Maintenance and maintenance Unplug the power supply before performing maintenance. Please do not put the fan on the water or splash it, which may cause the machine be damaged. Do not use banana oil, benzine, alcohol, bleach or metal objects to wipe the surface of the fan, which may cause discoloration of the surface.
- Page 13 Connect with APP...
