Summary of Contents for REL HT/MKII

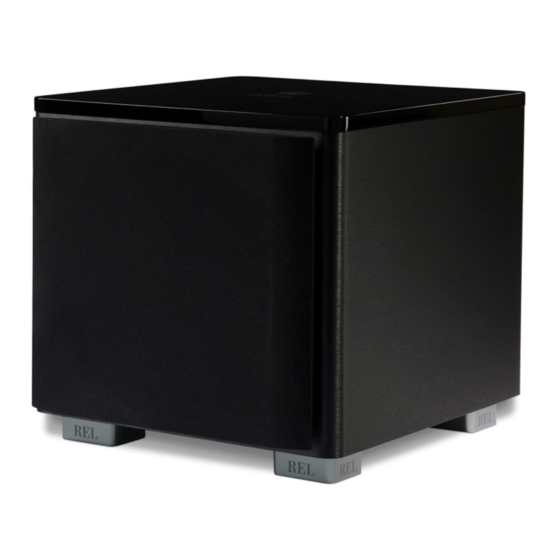

- Page 2 Operating Instructions for the HT/MKII Sub-Bass System...
- Page 3 Caution Marking Explanation The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of un-insulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
-
Page 4: Important Safety Instructions
Important Safety Instructions 1 Read all of these instructions. 2 Save these instructions for future use. 3 Heed all warnings. 4 Follow all instructions. 5 Do not use this apparatus near water. 6 Clean only with automotive polish and micro fiber cloth. 7 Install in accordance with the manufacturer’s instructions. - Page 5 15 Minimum distances 10cm around the apparatus for sufficient ventilation. 16 WARNING: The main plug/appliance coupler is used as the disconnect device. The disconnect device shall remain readily operable. 17 CAUTION: To completely disconnect this product from the mains, disconnect the plug from the wall socket outlet.
- Page 6 Attention Explication Marquage L’éclair avec le symbole de pointe de flèche dans un triangle équilatéral est destiné à alerter l’ utilisateur de la présence de non isolée tension dangereuse à l’intérieur de l’enceinte du produit qui peut être d’une ampleur suffisante pour constituer un risque d’électrocution pour les personnes.
- Page 7 9 Ne pas contourner le dispositif de sécurité de la prise de terre. Une fiche de terre a deux lames et une troisième broche de mise à la terre. La troisième broche est fournie pour votre sécurité. Si la fiche fournie ne rentre pas dans votre prise, consultez un électricien pour le remplacement de la prise obsolète.
-
Page 8: Fcc Statement
Avertissement Cet article est lourd. Pour éviter tout risque de blessure, prendre soin lors de la manipulation. L’ appareil ne doit pas être exposé à des éclaboussures et aucun objet rempli de liquide, comme des vases, ne doit être placé sur l’appareil. Les conduites Plus est utilisé... - Page 9 Dear Friend and Valued Customer Dear REL Owner, REL are incredibly excited about these newer HT models. Whilst the originals were exceptionally well-received by reviewers and customers alike, we had learned so much from our development of the latest Serie S and Serie T/x models that we felt certain we could effect real improvements if we applied some of these to our HT’s.
- Page 10 4 Crossover: Used to adjust crossover frequency. Variable between 30-200Hz. 5 Level: Volume control for Input. 6 RCA Output: Used to connect or “daisy chain” another REL in tandem. 7 Left & Right Channel Low-Level RCA Input: Used to connect low-level signals to the sub-bass system from the output of a preamplifier, integrated amplifier or receiver.
- Page 12 Phase Switch The phase control on a REL has two positions, 0 and 180. One of these positions will set the REL in phase with the speakers, and one will set it out of phase. The labels 0 and 180 are just labels and tell us nothing about the rest of the system, only if the REL is working with the speakers or not.
- Page 13 REL Set-Up Made Simple With the REL HT/MKII, there are two basic ways to connect and setup. The first is a single channel input from the sub out of a theater or power speaker system. In this case a single RCA cable is needed. The second is a stereo input from a stereo preamp or powered speaker system.
- Page 14 While playing music with true low bass, adjust the crossover to a point where the REL and the speaker are sure to share frequencies at 50Hz on the crossover control, or slightly higher for smaller speakers. At this point turn the LEVEL control up so that both the REL and speaker are roughly equal in volume and then...
- Page 15 To determine the crossover point, take the volume of the REL (using the Level control) all the way down, and put the crossover to 1/4 of the rotation. At this point, bring the REL’s volume back up slowly to the point where you have achieved a subtle balance, i.e.
- Page 16 A thermal overload device is fitted to all HT/MKII Sub-Bass Systems. If the unit is deliberately over-driven this device will sense the temperature rise and cut the output; recovery time is approximately five minutes.
- Page 17 The HT/MKII features a standby mode that is enabled when the mode switch on the rear of the unit is set to the “STANDBY” position. In this mode, the input signal is constantly monitored for audio activity. If not audio information is detected over a period of 30 minutes, the unit will enter a low power standby mode in which less power is consumed.
- Page 18 HT/1205 MKII Specifications Type: Closed box, front firing woofer Drive Unit: 12 in., carbon fiber reinforced cone with inverted carbon fiber center cap In Room Frequency Extension: -6dB at 22Hz in Room Input Connectors: Low Level stereo RCA, LFE RCA Output Connectors: Low Level stereo RCA, LFE RCA Power Output:...
- Page 19 15 mm Top Plate, finished in 5 coats of hand-rubbed high gloss lacquer Supplied Accessories Mains Lead: Included Users Setup guide: Online In the interest of product development, REL Acoustics Limited reserve the right to vary these specifications without notice...
- Page 20 REL Acoustics Limited North Road, Bridgend industrial Estate . Bridgend, CF31 3TP . United Kingdom Telephone: +44 (0)1 656 768 777 . Fax: +44 (0) 1 656 766 093 Web: www.rel.net...
