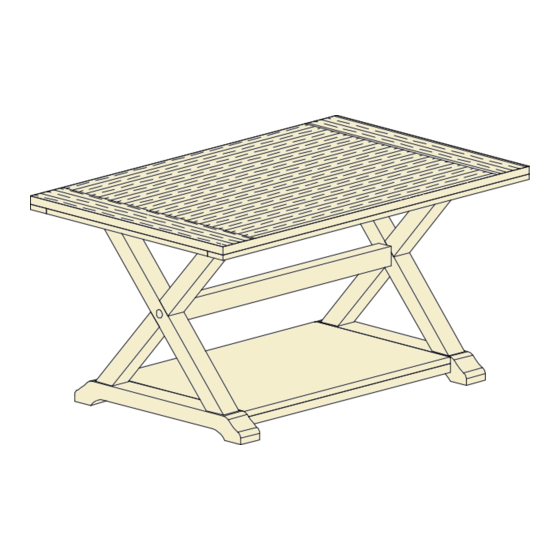

Riverside Furniture Framingham Table Assembly Instructions

Riverside
email: info@riverside-furniture.com
5
5
M " x 2" Allen
M
16
16
Head Bolt
Washer
2 pcs.
5 3
M " x 1 " Allen M
16 8
Head Bolt
10 pcs.
Stretcher Bottom Shelf
1 pc.
Be sure to check all packing material carefully for small parts, which may have come loose
inside the carton during shipment.
Step 1. To prevent possible scratches or damage, assemble the Table upside down on a soft surface
such as a blanket or carpet.
Step 2. Push the WOOD DOWEL (G) into the STRETCHER (J). Attach LEGS (I) to the STRETCHER
5
using the M " x 2" ALLEN HEAD BOLTS (A) through SPRING WASHER (C) and FLAT
16
WASHER (B). Tighten BOLTS using the ALLEN WRENCH (D). Then press The WOOD PLUG
(F) firmly into the hole.
Step 3. Attach the BOTTOM SHELF (K) to the assembled LEGS AND STRETCHER ASSEMBLY
5 3
using M " x 1 " ALLEN HEAD BOLT (E) through SPRING WASHERS (C) and FLAT WASHERS
16 8
(B). Do not fully tighten BOLTS until after next Step.
Step 4. Attach the LEGS AND STRETCHER ASSEMBLY to the TOP (H) using the M
HEAD BOLT (E) through SPRING WASHER (C) and FLAT WASHERS (B). Tighten all BOLTS
connecting the BOTTOM SHELF and the TOP using the ALLEN WRENCH (D).
Step 5. If the CASTERS (L) will be used, install into the BOTTOM PANEL as shown. Tighten with
the OPEN WRENCH (M).
Step 6. Carefully turn the Table upright .
Framingham Tables
Assembly Instructions
FURNITURE
5
" Flat M " Spring
16
Washer
12 pcs. 12 pcs.
3 1
M8 x 30 Wood
" x " Wood Plug
4 2
Dowel
2 pcs.
Caster
1 pc.
5mm Allen Wrench
1 pc.
Top Assembly
2 pcs.
Open Wrench
4 pcs.
Page 1 of 2
Made in China
Leg
1 pc.
2 pcs.
1 pc.
5 3
" x 1 " ALLEN
16 8
