Riverside Furniture Sierra Assembly Instructions

Riverside
email: info@riverside-furniture.com
4mm Allen Wrench
Allen Head Bolt
1 pc.
Allen Head Bolt
4 pcs.
Anti-Tip Restraint
Set
Allen Head Bolt
8 pcs.
Note:
1. Do not discard any packing materials until the table has been completely assembled, to prevent
parts from being accidentally discarded. To prevent possible scratches or damages, assemble the
table upside down on a soft surface such as a blanket or carpet, or it's own packaging materials.
2. Place three Legs (G) into the notches on the Top (F), then attach Legs to the Top using Flat
Washer (D), Spring Washer (C) and Allen Head Bolts (B) & (E). Do not fully tighten Bolts until
after Step 4.
3. Attach the Middle and Bottom Shelf (H) to the Legs using the same Washers and Allen Head
Bolts (I). Do not fully tighten Bolts until after next step.
4. Attach the fourth leg (G) to the Top & Shelves, using the same Washers and Bolts as in the
previous steps.
5. Adjust parts if needed for correct fit and tighten all the Bolts using the Allen Wrench (A).
6. Carefully turn the assembled Table upright.
7 . Levelers are installed into the bottom of the Legs and can be used to compensate for uneven
flooring if necessary.
Sierra Tables
Assembly Instructions
FURNITURE
4pcs.
Leg
Top
1 pc
.
1 pc
.
16 pcs.
16 pcs.
Middle / Bottom
Shelf
2 pc
4 pc
S.
I
Page 1 of 2
Made in China

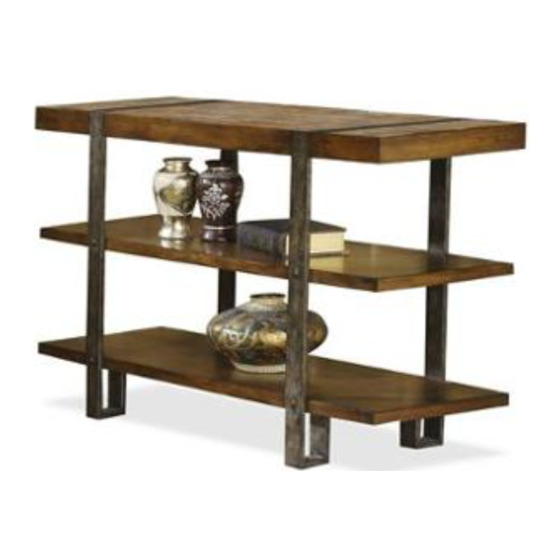

3415 Sofa / Console Table
