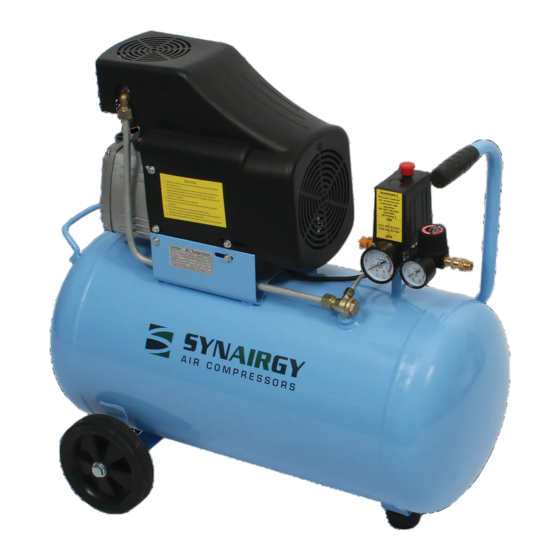

- Page 1 Direct Driven Compressor Operation Manual Model No. SACDD-24/50 www.synairgy-eu.com www.hoses.co.uk...
-
Page 2: Table Of Contents
Contents Important Notice First Time Usage Preparation for Usage Safety Guidelines Caution Brief Description Compressor Overview Technical Specification Parts List Operation and Adjustment Maintenance Troubleshooting Direct Driven Compressor Operation Manual Model No. SACDD-24/50 www.hoses.co.uk... -
Page 3: Important Notice
Fix the foot to the air compressor Remove the warning sign and the oil filler plug Screw the red breather assembly into the hole at the top of the compressor head Fix the air filter to the right side of the compressor head www.synairgy-eu.com www.hoses.co.uk... -
Page 4: Preparation For Usage
If you are using these solvents, please use only stainless steel spray equipment. 3. Never directly inhale the compressed air produced by a compressor. Direct Driven Compressor Operation Manual Model No. SACDD-24/50 www.hoses.co.uk... - Page 5 Fasten the compressor down securely, and release the pressure from the tank before transportation Protect the air hose and electrical wire from damage and punctures. Inspect them weekly for weak or worn spots, and replace them if necessary www.synairgy-eu.com www.hoses.co.uk...
-
Page 6: Caution
11. The maximum decibel level or the compressor is 87dB Brief Description This range of Synairgy oil lubricated compressors are built with performance and reliability in mind, with a robust strong design for trade and DIY applications. The compressors have the advantage of a compact construction and lightweight design. -
Page 7: Compressor Overview
12. Safety relief valve Technical Specification Rated Voltage Power Cylinder Capacity Pressure Tank Speed Code V/Hz mm*n l/min C.F.M bar/psi Usgal kg SACDD-24 220/50 1.5 47*1 2850 8/115 6.34 23.5 SACDD-50 220/50 1.5 47*1 2850 8/115 13.21 32 www.synairgy-eu.com www.hoses.co.uk... -
Page 8: Parts List
Parts List Direct Driven Compressor Operation Manual Model No. SACDD-24/50 www.hoses.co.uk... - Page 9 Wheel axle Crank case front cover Release pipe connector Screw M6 6 Release pipe Breather pipe Motor wire Crank case rubber gasket Wire contact Oil seal Outlet valve Crank case Power cable Front bearing 6202 Handle sleeve www.synairgy-eu.com www.synairgy-eu.com www.hoses.co.uk...
-
Page 10: Operation And Adjustment
Open the drain cock under the tank to exhaust condensation after every 60 working hours Clean the crankcase every 120 working hours and renew the oil, clean the air filter, check the safety valve and pressure gauge Direct Driven Compressor Operation Manual Model No. SACDD-24/50 www.hoses.co.uk... -
Page 11: Troubleshooting
1. Oil level is too high 1. Keep the level within set consumption range (in the middle of oil 2. Breather pipe is blocked indicator) 3. Piston ring and cylinder worn or damaged 2. Check and clean 3. Repair or replace www.synairgy-eu.com www.hoses.co.uk... - Page 12 Direct Driven Compressor Operation Manual Model No. SACDD-24/50 www.hoses.co.uk...
