example Tryptix systems

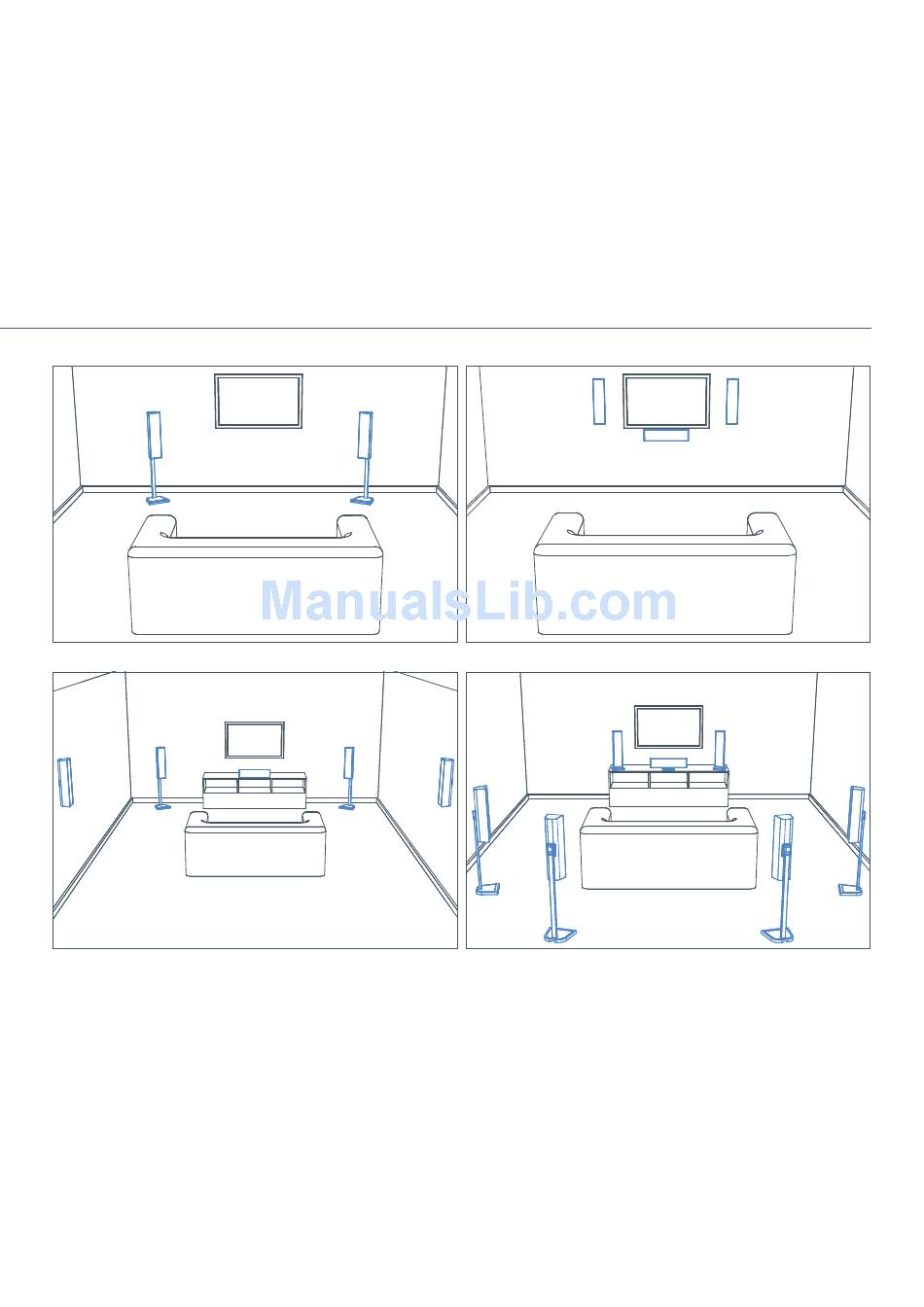

Figures 2-5 provide examples of the Tryptix in 2.1, 3.1, 5.1 and 7.1 channel installations. These are examples only, please ask your Krix dealer
about tailoring a system to your own specifi c requirements.
positioning
fi gure 2
fi gure 4
5
fi gure 3
fi gure 5
