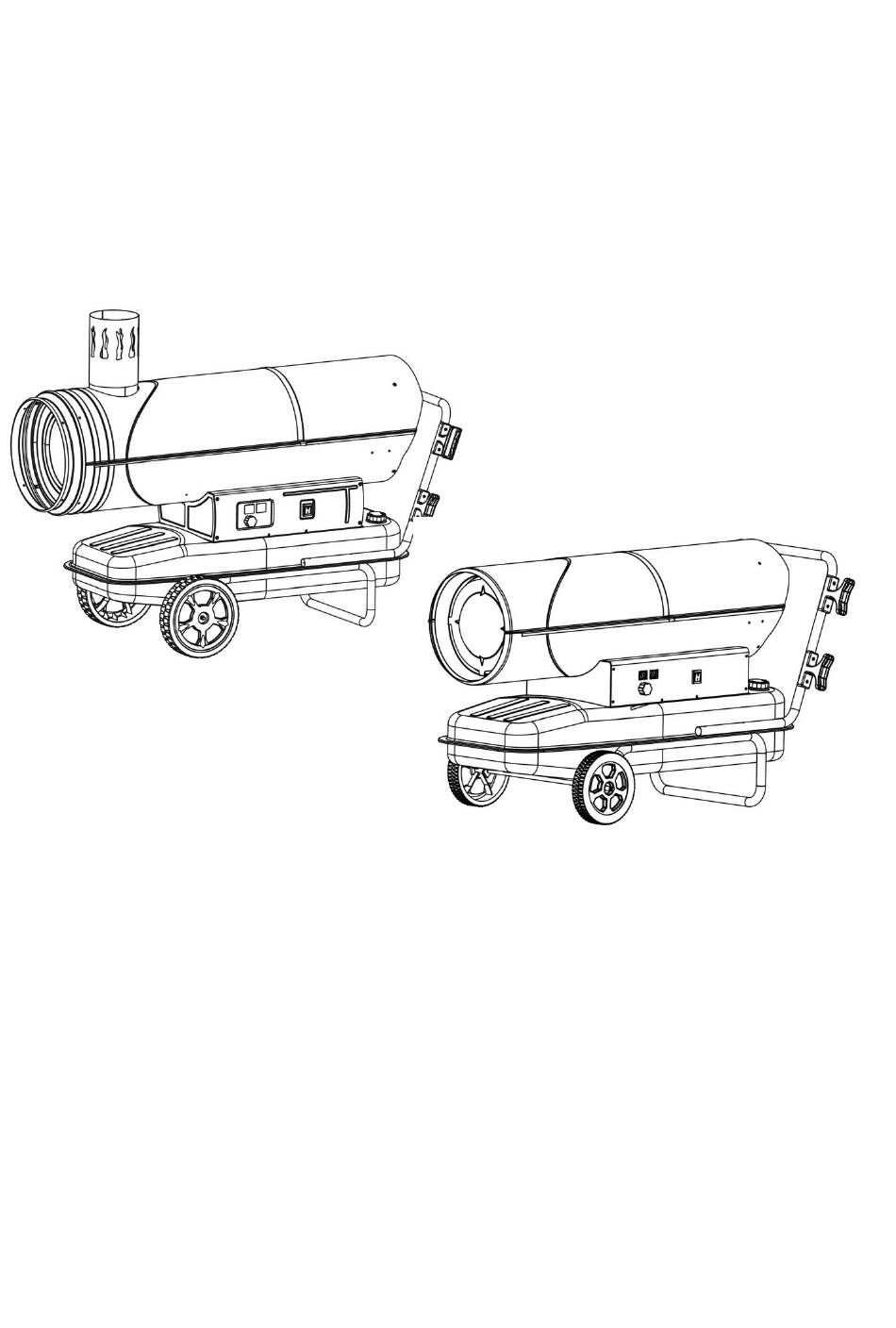

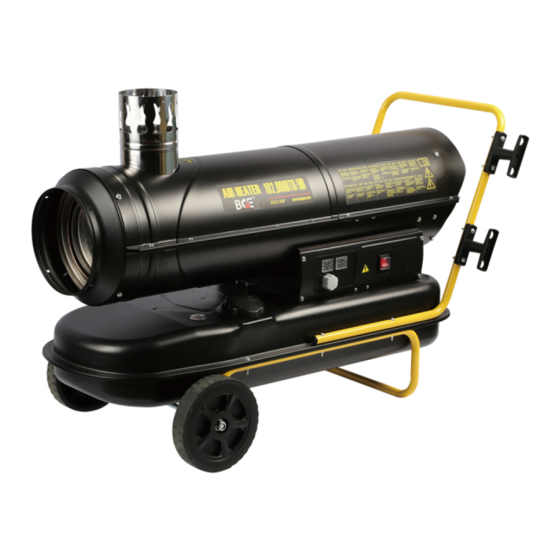

- Page 1 BGO30B/50B/60B/80B; BGO70A/100A Instruction Manual Direct and Indirect-fired Diesel/Kerosene Heaters BGO-30B Indirect-fired BGO-50B Indirect-fired BGO-60B Indirect-fired BGO-80B Indirect-fired BGO-70A Direct-fired BGO-100A Direct-fired...
- Page 2 Introduction Thank you for choosing a BGE product. Read this manual carefully before using the unit and save it for future reference. Disclaimer BGE reserves the right to make alterations to specifications, quantities, dimensions etc. for production or other reasons, subsequent to publication.
-
Page 3: General Safety Rules
General Safety Rules READ INSTRUCTIONS CAREFULLY. READ AND FOLLOW ALL INSTRUCTIONS. PLACE INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE. DO NOT ALLOW ANYONE WHO HAS NOT READ THESE INSTRUCTIONS TO ASSEMBLE, LIGHT, ADJUST OR OPERATE THE HEATER. IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE. -
Page 4: Product Description
THE FRONT OUTLET IS VERY HOT DURING OPERATION. DO NOT TOUCH! BURN DANGER. 2. Product Description Diesel or Kerosene direct-fired mobile/portable space heater with open combustion chamber and indirect fired mobile/portable space heater with close combustion chamber 3. Technical Specifications BGO-100A Model BGO-30B... -
Page 5: Installation Instructions
The following accessories are supplied in the shipping carton. Pos. Description Handle Feet pipe Nut M5 10or12 Plain washer 10or12 Spring washer 6or8 Screw 10or12 Nut M12 Plain washer ø12 Wheel Cotter Wheel shaft Fig.1 To assemble the heater, proceed as follows (see Fig. 1): 1、Insert the wheel shaft K to the corresponding hole of feet pipe B，insert the cotter J to the corresponding holes;... - Page 6 Follow general and special fire safety regulations in force in all fields of applications. In any case ensure the following minimum safety clearances from materials or objects in the surroundings of the heater: Side: Air inlet side: ...
-
Page 7: Cleaning, Maintenance And Storage
6.2. Manual reset/restart If the heater is in lock-out mode, check and remove the cause of lock-out before restarting the heater. To reset, turn the ON/OFF switch to 0 and then (afters 30 sec) again to I. In case of repeated malfunction, call technical service. - Page 8 Clean fuel filters by unscrewing the filter tray (clockwise) Remove the filter cartridge and wash it with petrol or replace it if necessary. Check seal O-ring and replace it if necessary. Reassemble the tray (Fig.2). The fuel filter installed on the gear pump should be cleaned or replaced if necessary by unscrewing cap H (see Fig.
- Page 9 Fig.5 Fuel pump pressure adjustment (Fig. 6) The fuel pressure is factory set and must be checked and adjusted by qualified technicians only. Tampering with the unit may be dangerous. Remove pressure gauge cap (P). Connect a pressure gauge on pressure measuring port on pump.
-
Page 10: Wiring Diagram
Fig.7 Electrical Inspect cables, electrical parts and connections. 8. Wiring Diagram 9. Troubleshooting PROBLEM CAUSE REMEDY Motor does not No power or low voltage Check power line and voltage start Check fuse and replace if necessary Faulty or damaged power cord Check and replace if needed E1 displayed on... - Page 11 NINGBO BAOGONG ELECTRICAL APPLIANCE CO.,LTD. Add: FuHai Industrial Zone, Cixi Nongbo city, China PC.: 315332 Tel:+860574-63682508 63682208 63682210 63682210 Fax:+80-574-63682517 E-mail:linda@baogon.com Http://www.baogon.com BGE reserves the right to make alterations to specifications, quantities, etc., for production or other reasons, subsequent to publication. ©BGE. 2015...
