Summary of Contents for Fransgard HZ-2300

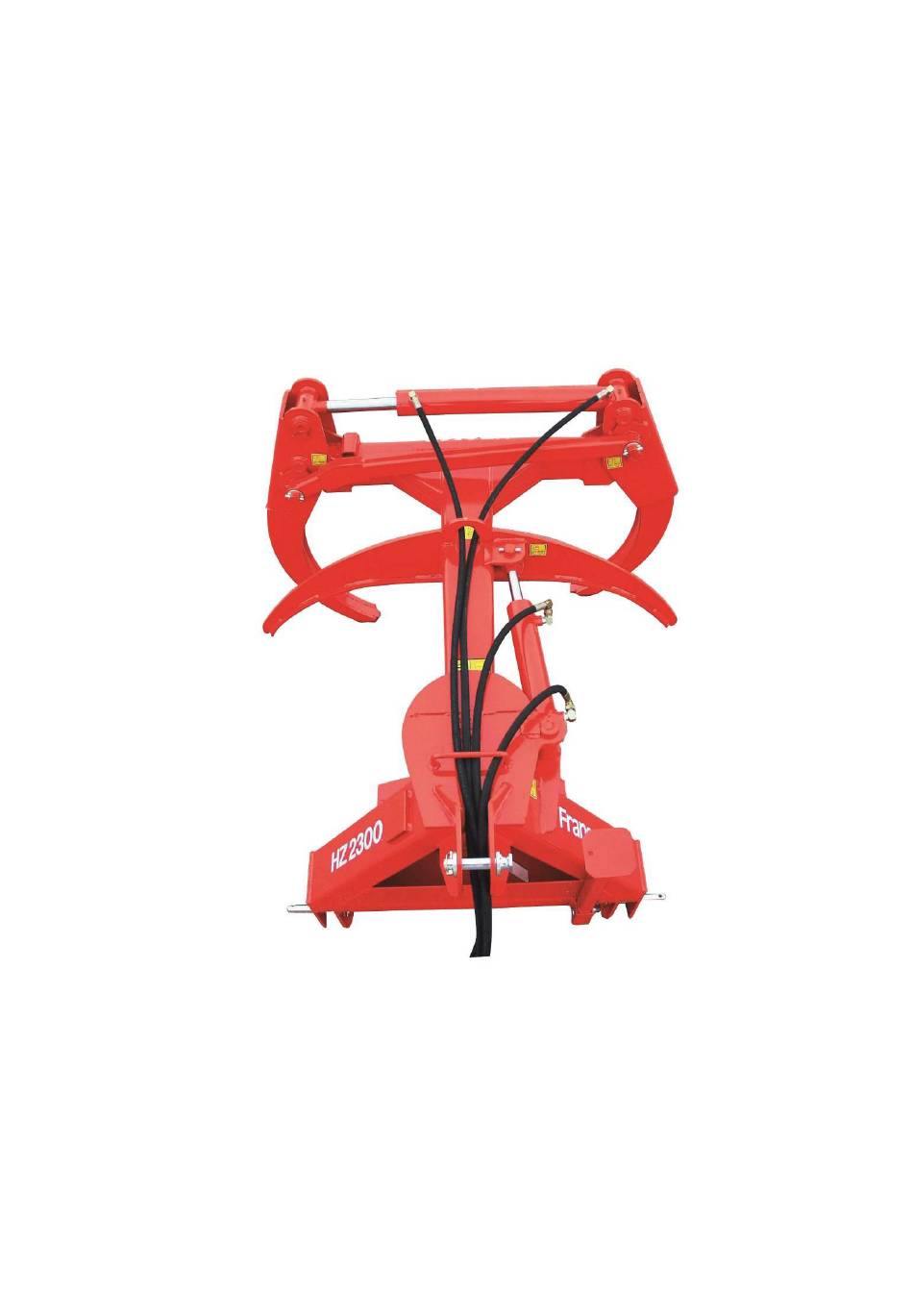

- Page 1 Fransgård Manual Forestry tong HZ-2300 → Serial no. 10502029 Translated from original manual...
-
Page 2: Table Of Contents
Changing hydraulic hoses ..........8-9 Ordering spare parts ............9 Storage ................9 Spare parts list .............. 10-11 TECHNICAL DATA forestry tong HZ-2300 Cylinder diameter ..........80 mm / 3” Cylinder closing power ..60 KN /120 bar/ 13.200 lbs (6000 kg) Working pressure, min. - Page 3 INSTRUCTIONS WARNING!!! Pay close attention to these points: all safety instructions are marked with this symbol, it is extremely important that you read them. 1. Become familiar with the instruction book, read the safety instructions through carefully. Before beginning to use the forestry tong, the user (the person that is to manipulate the forestry tong) must be familiar with this instruction book, i.e.
-
Page 4: Safety
PERSONAL SAFETY!!! Working in conditions with high levels of noise can lead to hearing damage, and even to deafness. The noise level depends to some extent on the cabin insulation of the tractor, so if necessary, use suitable hearing protection. Avoid physical contact with the oil during maintenance/repairs;... -
Page 5: Connection / Detachment, Tractor
CONNECTION to TRACTOR The forestry tong is to stand in its normal position, i.e.: lowered onto a flat, solid surface, resting upon the tong and the support leg. When this is ensured, connection is accomplished as follows: 1. Drive carefully towards the forestry tong, so that the lift arms slide in between the flanges. -
Page 6: Instruction For Use
INSTRUCTIONS FOR USE Transporting long logs: Always put the swivel cylinder into “floating” position, so the swivel cylinder is able to turn freely when steering with the tractor, when transporting long logs. Important! The log ends are only to be placed 10-20 cm inside the grapples (see F.) Log ends are only to be lifted a little of the ground, and absolutely not so much that the back end of the logs are of the ground. -
Page 8: Maintenance
SAFETY during MAINTENANCE Before beginning maintenance tasks i.e.: adjustment, cleaning, assembly or repairs, the following should be observed: 1. All power take-off equipment from the tractor must be disengaged. 2. The forestry tong must be positioned at the lowest position on a flat, stable surface. 3. -
Page 9: Ordering Spare Parts
RENEWAL of HYDRAULIC HOSES Correctly fitted hydraulic hoses last longest! When replacing, please note the following: Keep the hose clean – both inside and outside. - Make sure that the hoses are placed according to the instructions, and that they are free to move in all working directions. - Page 13 Varenr. Antal Bemærkninger Part no. Quantity Beskrivelse Description Remarks 10501 Trepunktsophæng Three-point lift 25413 Bolt Bolt 8 mm. 522508 Skive Washer ø52xø25x8mm FZB 1210080 Sikringssplit Safety pin 8 mm 10502 Støtteben Support leg 15558 Bolt Bolt 1220035 Hårnålesplit Cotter 3,5 mm 15536 Træktap Pins...
- Page 15 Varenr. Antal Bemærkninger Part No. Quantity Beskrivelse Description Remarks 10531 Hydraulikcylinder Hydraulic czylinder 10524 Afstandsbøsning Distance bushing 5/8“x20mm. 42418 Pakning Copper washer 3/8“ 42419 Brystnippel Nipple 3/8“-3/8“ 10532 Hydraulikcylinder Hydraulic cylinder 10535 Bøsning Bushing Ø39xø35x35mm. 881500240 Smørenippel Lubrican nipple M8x1,25 42414 Lynkobling Quick coupling...
