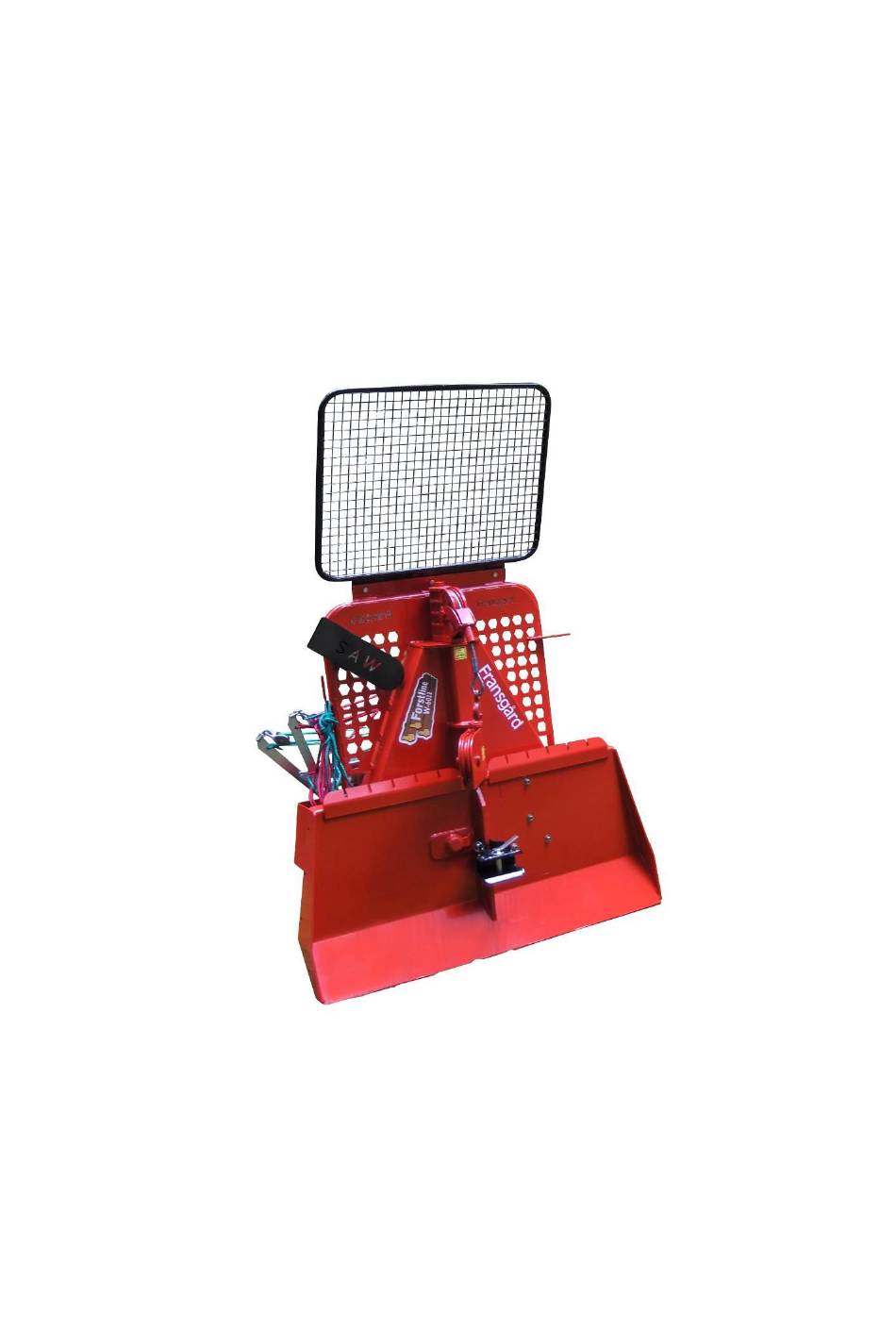

- Page 1 Fransgård Manual W-6011 Tractor winch...
- Page 2 Fransgård Maskinfabrik A/S Fredbjergvej 132, Fredbjerg DK - 9640 Farsø Telefon: ..+45 98 63 21 22 Fax: ... +45 98 63 18 65 www.fransgard.dk mail@fransgard.dk...
-
Page 3: Table Of Contents
Drum capacity ..............Ø 11mm. - 100 m VDW-PHYTON 6 F-V. Min. calculated breaking load ............134 kN Cable speed ................0,5 - 1,3 m/s. Three-point suspension ..............Kat.2. PTO speed W-6011 ............. Max. 540 rpm. Weight ..................... 450 kg. - Page 4 WARNING! Before starting to operate the tractor winch, you must have read this manual thoroughly. The owner of the winch is responsible for ensuring that all operators and assistants are familiar with the tractor winch’s operation. Caution! Never attempt to use this tractor winch without sufficient training. Keep hands, feet and clothing away from moving parts.
- Page 5 SAFETY INSTRUCTIONS FOR FORESTRY SKIDDING WINCHES Work safely! The relevant health and safety regulations and the operating instructions must be complied with. Operation and maintenance of the cable winch may only be entrusted to suitable and reliable persons over 18 years of age who are familiar with this type of work. Wear personal safety equipment (helmet, safety shoes, protective gloves).
- Page 6 the load watched by other persons, with constant contact being maintained between the observer and winch operator by means of pre-arranged signals. When cables are being used, there must be no one between the load and the cable winch or in the danger zone between the winch, pulley and load, see figure 2. In the case of skidding on slopes, there must be no one below the log hitched to the cable.
-
Page 7: Instructions For Use
fitted with tyre chains. Tyre chains must always be used on hard-packed snow and in icy conditions. Skidders must be immobilised with a sprag brake or the like. If necessary, secure the tractor with a cable hitched opposite to the pulling direction should the sprag brake not provide sufficient hold owing to the soil conditions. -
Page 8: Lubrication And Maintenance
Releasing the brake: Lower the tractor winch until it is resting on the ground with its support plate. Release the brakes by slowly pulling the red string (Page 9, fig. B1). Warning! When the cable is under load, the brakes must only be released with the red string. Keep a safe distance! Side-pulling the cable: When the brake is released, the cable can be paid out. -
Page 9: Tractor Size
ADJUSTMENT OF THE DRIVE CHAINS. After 10 hours operation, the drive chains shall be inspected and if necessary adjusted. fluctuations of the chains must be max 4mm. chains inspected every 100 hours of operation (Page 11, fig I,J) TRACTOR SIZE. As recommended size of tractor a four wheel drive with enough weight on the front axles, and 10KW engine size for each 10KN maximum pulling capacity. - Page 10 Max.30° Max.30°...
- Page 12 Carefully read operator’s manual before handling the Shut off engine and remove key machine. before performing maintenance or Observe instructions and safety repair work. rules when operating. Stay clear of swinging area of Stay clear of darft link machine. lifting range while operating rockshaft controls.
