Summary of Contents for KaiDeng WVC Series
- Page 1 WVC Series micro inverter WVC-1400 micro inverter User manual WiFi/433MHz Version INMETOR Intertek 5016924 www.inverter.com sales@inverter.com Globle Shipping +1 800-585-1519...
- Page 2 WVC Series micro inverter Parameter WVC1400-433/WiFi Micro inverter model WVC1400-R3-433/WiFi Maximum input power 1600Watt Output voltage mode 120/230V Auto switch PV Open circuit voltage 30-60VOC Operating voltage range 22-60V Starting voltage range 22-60V short-circuit current Maximum working current 53.8A Output parameters...

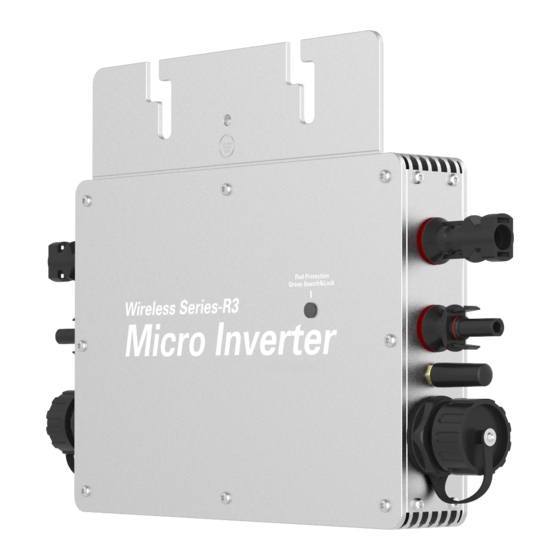

- Page 3 WVC Series micro inverter Appearance description of micro inverter Micro inverter fixing hole Independent ground connection to fixed holes Screw Kit 22-60V DC 22-60V DC Input connected Input connected to PV module to PV module AC output terminal, connect previous...
- Page 4 WVC series WiFi data collector. WiFi data collector is the data exchange bridge of WVC series micro- inverters. It is in the micro-inverter, The function of data collection and data exchange between...
- Page 5 WVC Series micro inverter 2、Immediately monitor your power plant and keep track of your power plant data： www.inverter.com sales@inverter.com Globle Shipping +1 800-585-1519...
- Page 6 WVC series micro-inverter installation guide To properly install and use WVC series micro inverters, please read and follow this guide and all warnings and ins -tructions in WVC micro inverters. The “Installation and Operation Manual” can be downloaded from the official website of inverter Energy: www.inverter.com.Safety warnings are listed on the back of this guide.
- Page 7 Step 6 Connect the AC main cable to the utility grid to start your green energy journey. Note: Before installing WVC series micro inverter products, please read this manual and pay attention to the installation details. This manual contains important instructions that should be followed when installing...
