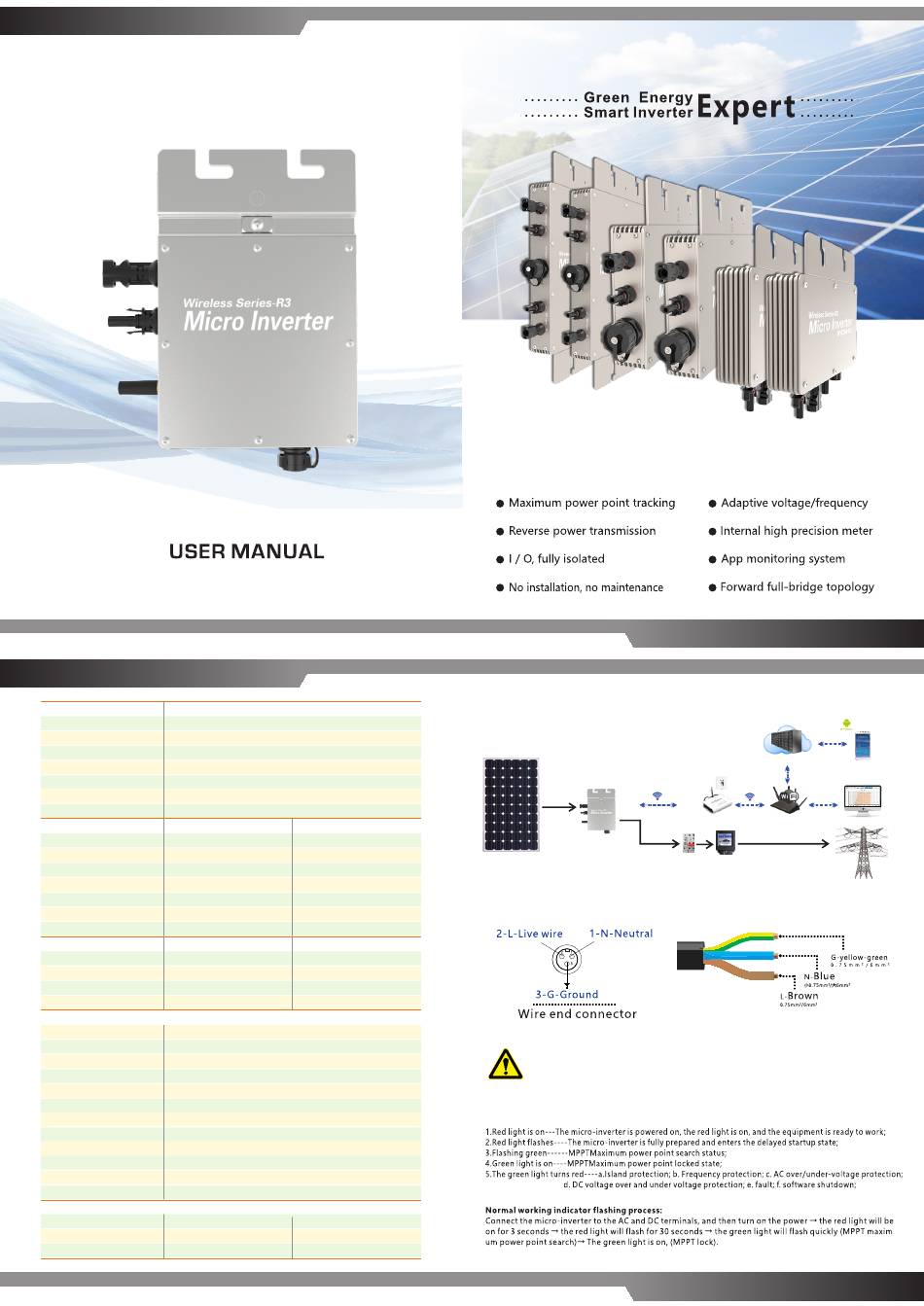

KaiDeng Wireless R3 Series User Manual

Micro inverter Use Manual

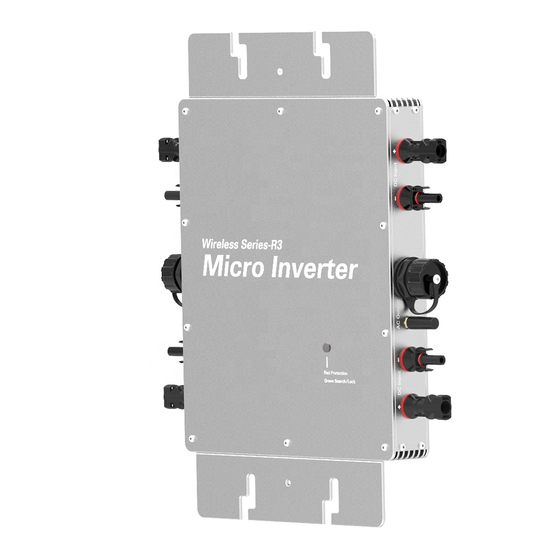

Micro Inverter
WVC-295
Micro inverter Use Manual
model WVC-295
Maximum input power 300Watt
Output voltage mode 120/230V Auto switch
PV Open circuit voltage 30-60VOC
Operating voltage range 22-60V
Starting voltage range 22-60V
short-circuit current 13.6A
Maximum working current 11.5A
Output parameters @120V
Output peak power 300Watt
Rated output power 295Watt
Output current 2.45A
AC voltage range 80-160VAC
AC frequency range 48-51Hz/58-61Hz
Power factor >95%
15PCS（Single）
Number of branch connections.
Output efficiency @120V
Static MPPT efficiency 99.5%
Max output efficiency 95%
<0.5W
Loss of power at night
Total current harmonics <5%

Appearance and technical features

Temperature range -40°C to +65°C
Size（L×W×H） 213mm×167mm×32mm
Net amount 0.69kg
Waterproof grade Ip67 NEMA3R
Heat dissipation mode Self-cooling
Communication mode 433MHz/WiFi
Power transmission mode Reverse transmission,Load priority
Communication mode 433MHz/WiFi
Electromagnetic Detection EN61000-6-1:2007 EN6100-6-3:2007+A1:2011+AC:2012
EN50549-1、EN 50549-2、NBR 16149:2013、UL1741
Power Grid standard
Power grid detection IEC/EN 62109-1、 IEC/EN 62109-2、 IEC 62116、IEEE 1547
Certificate CE，ETL，INMETRO，Patented technology
Packing weight
Specifications
weight
Size 245×202×60mm
@230V
300Watt
295Watt
1.28A
180-280VAC
48-51Hz/58-61Hz
>95%
30PCS（Single）
@230V
99.5%
95%
<0.5W
<5%
Each（Packing） Box（16PCS）
1ＫG 15.5ＫG
430×400×270mm
WVC series communication type intelligence
Micro grid-connected inverter
Micro inverter Use Manual
System diagram
433MHz
Micro inverter
Photovoltaic module

Description of the connector and cable core of the micro inverter

Note: You can purchase a professionally customized AC bus with a T-type connector.
Use this AC bus as the AC bus for each branch. Connect it hand in hand to form
a modular micro-inverter branch wiring system.

LED indicator function of micro inverter

Micro inverter Use Manual
APP Contorl
KDM Cloud server
WiFi Modem
Computer
WiFi
Switch
Meter
Power Grid
