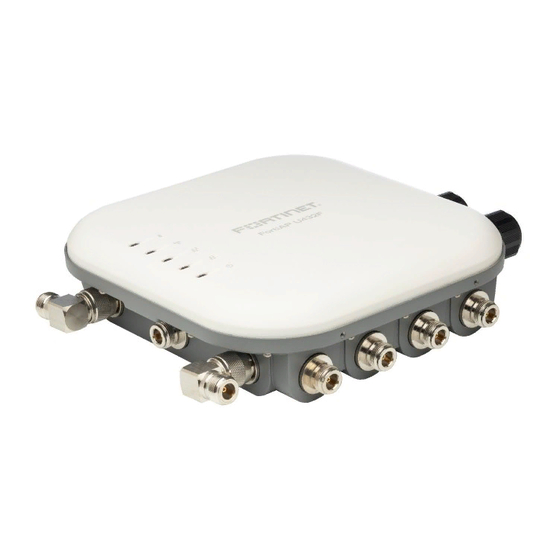

FortiAP U432F
FortiAP U234F
Quick Start Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the FortiAP U432F and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fortinet FortiAP U432F

Summary of Contents for Fortinet FortiAP U432F

  • Page 1 FortiAP U432F FortiAP U234F Quick Start Guide...
  • Page 2 About FAP-U432F IMPORTANT: Supported only from FortiWLC Release 8.6.2 or later and FortiGate with FortiOS Release 6.4.4 and later. The FAP-U432F is a tri-radio, dual band 802.11ax 2.4/5GHz outdoor access point and supports three 4x4 MIMO radios. This high performance device complies with the 802.3bt, 802.3at, and 802.3af PoE specifications and supports BLE and ZigBee.
  • Page 3 FAP-U432F Box Includes Wall Mount Bracket QuickStart Guide FortiAP-U432F PIN060 POE Adapter Pole Mount Bracket Sector Antenna Bracket Power Cable...
  • Page 4 FAP-U432F Box Includes Grounding Cable Mounting Kit 2.4 GHz Antenna (Pole Straps, Mounting Bolts and Screws, Grounding Screws) 5 GHz Antenna Dual band (2.4/5GHz) Antenna...
  • Page 5 FAP-U432F Ports Ethernet Port (RJ-45) 2.5 Gigabit Ethernet port with Power Sourcing Equipment (PSE) support Ethernet Port (RJ-45) 1 Gigabit Ethernet port with Power over Ethernet (PoE) support Power adapter connection Console Port (RJ-45) Network Port (RJ-45) Optional management computer Gigabit Ethernet port for network connection connection or internet...
  • Page 6 5 - Bluetooth, ZigBee and Radio 3 No light: Radio 3, BLE, and ZigBee are powered off Green: Radio 3, BLE, and Zigbee are enabled Blinking Green: Data Tx/Rx on Radio 3, BLE, and Zigbee Amber: Radio 3 is up. Blinking Amber: Data Tx/Rx on Radio 3 Blue: BLE is enabled Blinking Blue: Data Tx/Rx on BLE...
  • Page 7 FAP-U432F LED Status...
  • Page 8 FAP-U432F Antennas The FortiAP unit provides dual concurrent radio signals. Use the 2.4GHz antennas to access 2.4GHz radio (IEEE 802.11b/g/n) signals and the 5GHz antennas to access 5GHz radio (IEEE 802.11a/n/ac/ax) signals. To use both radio frequencies concurrently, use all 11 WiFi antennas. Follow this procedure to install the antennas. Insert the antenna base firmly into the appropriate antenna mount.
  • Page 9 Wall Mounting FAP-U432F Follow this procedure to attach the unit to a wall using the supplied equipment. Mark the location of the mounting bolt holes on a flat wall surface, using the wall-mount base as a template. Drill mounting holes in the marked locations and hammer the bolts into the openings. Attach the wall-mount base to the back of the access point using the mounting screws.
  • Page 10 Attach the access point onto the wall using the mounting bolts and secure the mounting base to the wall.
  • Page 11 Pole Mounting FAP-U432F Follow this procedure to attach the unit to a pole by using the supplied pole mount bracket, straps, and screws. attach the pole-mount bracket using the mounting screws. Attach the wall-mount bracket, then...
  • Page 12 Loop the pole straps through the slots on the bracket, then around the pole. Tighten the straps with screws to attach the unit securely to the pole.
  • Page 13 Installing Weatherproof Connectors The weatherproof connects are provided for the LAN ports to ensure a watertight seal for connecting the Ethernet cable to the device. Unscrew the coupling ring from the waterproof connector, remove the sealing gland, and thread the RJ-45 plug through the connector components.
  • Page 14 Slide the sealing gland along the cable into panel connector. Thread the coupling ring onto the panel connector and tighten it until the sealing gland is compressed, making a watertight seal on the cable.
  • Page 15 About FAP-U234F IMPORTANT: Supported only from FortiWLC Release 8.6.2 or later and FortiGate with FortiOS Release 6.4.4 and later. The FAP-U234F is a tri-radio, dual band 802.11ax 2.4/5GHz outdoor access point and supports three 2x2 MIMO radios. This high performance device complies with the 802.3at and 802.3af PoE specifications and supports BLE and ZigBee.
  • Page 16 FAP-U234F Box Includes FortiAP-U234F QuickStart Guide Wall Mount Bracket EPA5006GPR-4P POE Adapter Grounding Cable Pole Mount Bracket Power Cable...
  • Page 17 FAP-U234F Box Includes Grounding Screw Mounting Kit (Pole Straps, Mounting Bolts and Screws)
  • Page 18 FAP-U234F Ports Ethernet Port (RJ-45) 1 Gigabit Ethernet port with Power over Ethernet (PoE) support Ethernet Port (RJ-45) 1 Gigabit Ethernet port with Power over Ethernet (PoE) support Console Port (RJ-45) Optional management computer connection Provides access to the Command-Line Interface (CLI) Serial Baud Rate 115200...
  • Page 19 5 - Bluetooth, ZigBee and Radio 3 No light: Radio 3, BLE, and ZigBee are powered off Green: Radio 3, BLE, and Zigbee are enabled Blinking Green: Data Tx/Rx on Radio 3, BLE, and Zigbee Amber: Radio 3 is up. Blinking Amber: Data Tx/Rx on Radio 3 Blue: BLE is enabled Blinking Blue: Data Tx/Rx on BLE...
  • Page 20 FAP-U234F LED Status...
  • Page 21 Wall Mounting FAP-U234F Follow this procedure to attach the unit to a wall using the supplied equipment. Mark the location of the mounting bolt holes on a flat wall surface, using the wall-mount base as a template. Drill mounting holes in the marked locations and hammer the bolts into the openings. Attach the wall-mount base to the back of the access point using the mounting screws.
  • Page 22 Pole Mounting FAP-U234F Follow this procedure to attach the unit to a pole by using the supplied pole mount bracket, straps, and screws. attach the pole-mount bracket using the mounting screws. Attach the wall-mount bracket, then Loop the pole straps through the slots on the bracket and then around the pole. Tighten the straps with screws to attach the unit securely to the pole.
  • Page 23 Installing Weatherproof Connectors The weatherproof connects are provided for the LAN ports to ensure a watertight seal for connecting the Ethernet cable to the device. Unscrew the coupling ring from the waterproof connector, remove the sealing gland, and thread the RJ-45 plug through the connector components.
  • Page 24 Slide the sealing gland along the cable into panel connector. Thread the coupling ring onto the panel connector and tighten it until the sealing gland is compressed, making a watertight seal on the cable.
  • Page 25 Connecting FortiAP Follow these steps to connect the FortiAP to your network. Connect one end of the ethernet cable to the LAN1 PoE+ port on the FortiAP. Connect the other end to the PoE port on the PoE adapter. Connect one end of the ethernet cable to the LAN port on the PoE adapter. Connect the other end to a switch.

  • Page 27: Controller Discovery

    Controller Discovery The FortiAP boots up with the default FortiWLC AP image and tries to discover the FortiWLC, FortiGate, and FortiCloud controllers simultaneously. The FortiAP connects to the controller that is first discovered. • If FortiWLC controller is discovered, the unit continues booting up with the default FortiWLC image.
  • Page 28 FortiAP Cloud Deployment Follow these steps to complete the FortiAP Cloud discovery. Visit http://www.fortiapcloud.com and sign in or create a new account. Click Inventory > Import AP Key and enter the unique FortiAP Cloud key located on your FortiAP device, then click Submit. Deploy the FortiAP to an existing AP network, or create a new AP network, then click Submit.
  • Page 29 Follow the prompts to associate the FortiAP device to an SSID. Connect your FortiAP to an Internet connection. This can be a modem or another source of Internet connectivity. Configure the discovered FortiAP.
  • Page 30 FortiGate Deployment To complete the FortiGate controller discovery process, you need to authorize the FortiAP on the FortGate.

  • Page 31: Zero Configuration

    Zero Configuration The FortiAP unit is designed to require no configuration in most networks. Zero configuration mode works if the unit is on the same layer-2 network and subnet as the FortiWLC, or if the unit is on the same layer-3 network and subnet as the FortiGate or FortiCloud controller. If the FortiAP wireless controller’s IP address cannot be determined using Zero Configuration mode, or if the network uses static IP addresses, it can be configured to use a static IP address.
  • Page 32 The discovery modes for FortiGate controller are: • DHCP option 138 • • Multicast • Broadcast • Static Controller IP address The discovery mode for FortiCloud controller is: • FortiCloud Protocol 3. Verify that the FortiAP has successfully connected to the controller in the FortiWLC/FortiCloud/ FortiGate WebUI.
  • Page 33 Manual IP Configuration and Controller Discovery To enable the FortiAP with a static IP address: 1. Connect the FortiAP device to a seperate private switch or hub. 2. Access the AP console through the serial port. 3. To configure FortiAP’s own IP address, type ip config net static address <ip-address> netmask <netmask ip-address>...
  • Page 34 Cautions and Warnings 54 Vcc, 0,6 A à partir de la source PoE. • Reorient or relocate the receiving antenna. Environmental specifications Grounding — To prevent damage to your equipment, connections • Increase the separation between the equipment and Ambient operating temperature: 0C to 60C that enter from outside the building should pass through a receiver.
  • Page 35 Innovation, Science and Economic Develop- Cet équipement est conforme aux limites d’exposition aux ray- (iii) lorsqu’il y a lieu, les types d’antennes (s’il y en a plusieurs), les onnements ISED établies pour un environnement non contrôlé. Cet numéros de modèle de l’antenne et les pires angles d’inclinaison ment (ISED) –...
  • Page 36 Cet appareil et son antenne (s) ne doit pas être co-localisés ou 4. Installation procedure For model FAP-U432F fonctionnement en association avec une autre antenne ou trans- Antenna Type - Dipole Please refer to user’s manual for the detail. metteur. Antenna Connector - N-Type 5.
  • Page 37 Šis gaminys atitinka direktyvą 2014/53/ES. することを目的としていますが、 この装置がラジオやテレビジョ not obtained directly from Fortinet or Fortinet’s authorized ン受信機に近接して使用されると、 受信障害を引き起こすこと partners may not comply with EU Directives and Fortinet makes no Malti があります。 assurances for such products. Dan il-prodott huwa konformi mad-Direttiva 2014/53/UE.
  • Page 38 1 (“License © 2016 Fortinet, Inc., All Rights reserved. Contents and terms are of your failure to comply with these terms or in the event Fortinet Grant”) above. You expressly agree and acknowledge that Fortinet subject to change by Fortinet without prior notice.
  • Page 39 Software or Hardware, there shall be no warranty on such Software. the contrary, distributors, resellers and other Fortinet partners need not be new or of an identical make, model, or part; Fortinet 7. Disclaimer of Other Warranties and Restrictions. (a) are not agents of Fortinet and (b) are not authorized to bind...
  • Page 40 SUCH DAMAGES. THE SOLE REMEDY FOR A BREACH OF THE the United States Government shall be governed solely by the authorized to be used (a) has been altered, except by Fortinet LIMITED WARRANTY IS REPAIR, REPLACEMENT OR REFUND OF THE...
  • Page 41 In no event will the copyright stating that you changed the files and the date of any change. amendment or other agreement to be binding on Fortinet, such holder for the open source software be liable to you for damages, b) You must cause any work that you distribute or publish, that in amendment or other agreement must be signed by Fortinet’s...
  • Page 42 one of the following: the Program), the recipient automatically receives a license from a version number of this License which applies to it and “any later a) Accompany it with the complete corresponding machine- the original licensor to copy, distribute or modify the Program version”, you have the option of following the terms and conditions readable source code, which must be distributed under the terms subject to these terms and conditions.
  • Page 43 A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER of it, thus forming a work based on the Library, and copy and form under the terms of Sections 1 and 2 above provided that you PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN distribute such modifications or work under the terms of Section 1 accompany it with the complete corresponding machine-readable ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
  • Page 44 executables containing that work also fall under Section 6, whether the operating system on which the executable runs, unless that obligations under this License and any other pertinent obligations, or not they are linked directly with the Library itself. component itself accompanies the executable. It may happen then as a consequence you may not distribute the Library at all.
  • Page 45 of that version or of any later version published by the Free Software Foundation. If the Library does not specify a license version number, you may choose any version ever published by the Free Software Foundation. 14. If you wish to incorporate parts of the Library into other free programs whose distribution conditions are incompatible with these, write to the author to ask for permission.
  • Page 46 Create a support account, register and manage your products, download updates, firmware images and release notes, and create technical support tickets. https://support.fortinet.com Fortinet Document Library Up-to-date versions of Fortinet publications for the entire family of Fortinet products. http://docs.fortinet.com Training Services Course descriptions, availability, schedules, and location of training programs in your area.
