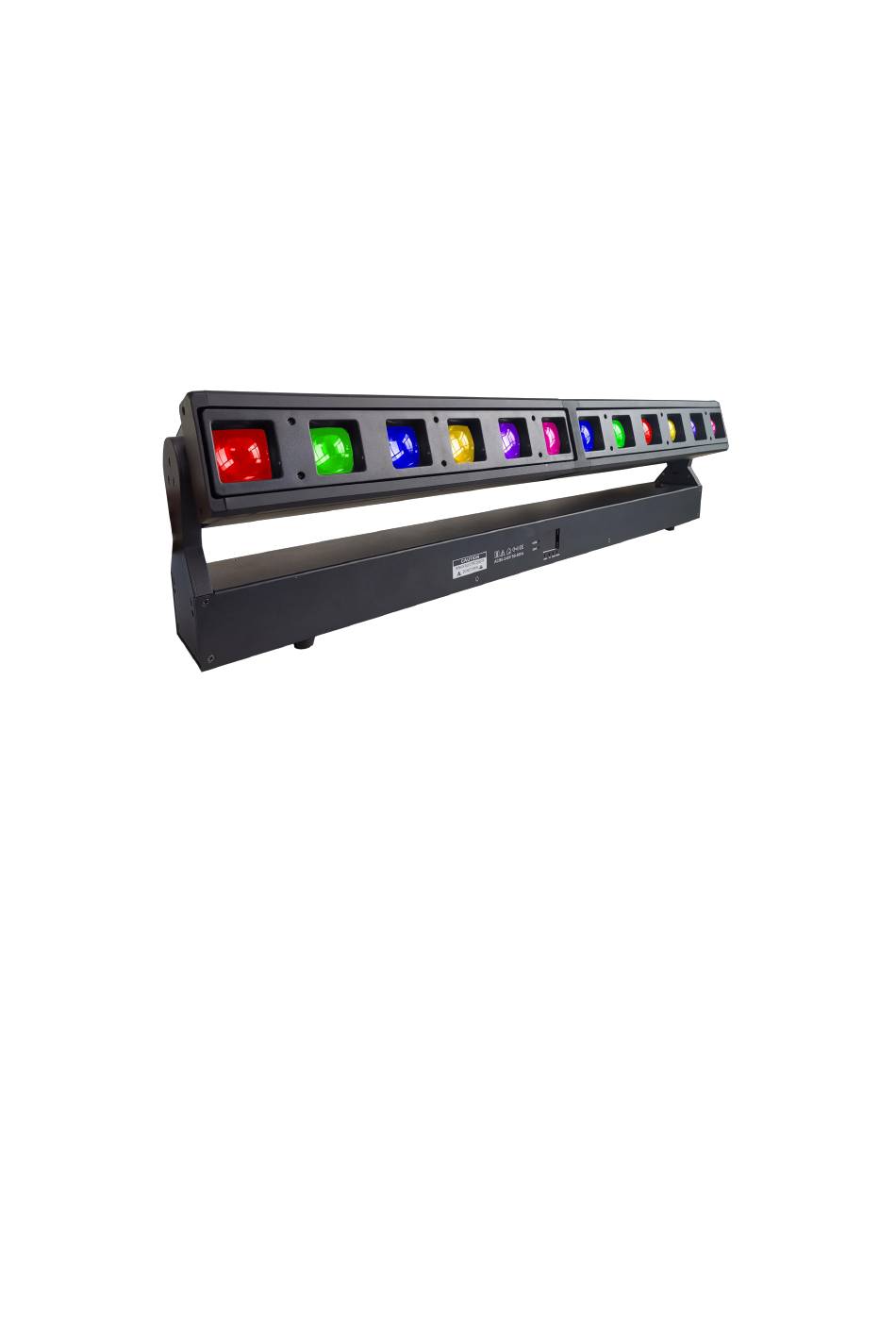

- Page 1 12*40W 4in1 Zoom led Bar USER MANUEL User Manual KEEP THIS MANUAL FOR FUTURE NEEDS...
-
Page 2: Specifications
Unpacking Thank you for choosing 1240Zoom Led Mover. For your own safety, please read this manual before installing the device. This manual covers the important information on installation and applications. Please install and operate the fixture with following instructions. Meanwhile, please keep this manual well for future needs. -
Page 3: Maintenance And Cleaning
High efficient optical lens systerm. 3-40degree wide zoom range. Nice beam effect & Nice wash effect. Color: RGBW mixture Dimmer: 0-100% linear dimming system Display: LCD Menu Display Protection: Auto temperature control system with big cooling fan. Quiet, smooth and fast PAN/TILT movement Low noise and efficient FAN cooling system Built-in pre-programs with macro effects. -
Page 4: Dmx-512 Control Connections
temperature. This device falls under protection-class I. Therefore it is essential that the device be earthed. The electric connection must carry out by qualified person. The device shall only be used with rate voltage and frequency. Make sure that the available voltage is not higher than stated at the end of this manual. Make sure the power cord is never crimped or damaged by sharp edges. -
Page 5: Display Chart
For installations where the DMX cable has to run a long distance or is in an electrically noisy environment, such as in a discotheque, it is recommended to use a DMX terminator. This helps in preventing corruption of the digital control signal by electrical noise. - Page 6 DMX channel(16/64/21/52CH) 16CH Function DMX Value Description Tilt 0-255 0-100% Tilt Fine 0-255 0-100% Zoom1 0-255 0-100% Zoom2 0-255 0-100% Dimmer 0-255 0-100% 0-19 No Effect Strobe 20-255 Strobe slow to fast 0-255 0-100% Green 0-255 0-100% Blue 0-255 0-100% White 0-255 0-100%...
- Page 7 Foreground Dimmer 0-255 0-100% 0-10 No Function Background 11-255 Background Color Background Dimmer 0-255 0-100% 0-10 No Function 11-15 Show1 16-20 Show2 21-25 Show3 26-30 Show4 31-35 Show5 36-40 Show6 41-45 Show7 46-50 Show8 51-55 Show9 56-60 Show10 61-65 Show11 66-70 Show12 71-75...
- Page 8 161-165 Show31 166-170 Show32 171-175 Show33 176-180 Show34 181-185 Show35 186-190 Show36 191-195 Show37 196-200 Show38 201-205 Show39 206-210 Show40 211-215 Show41 216-220 Show42 221-235 Show43 236-245 Sound1 246-255 Sound2 0-127 Show Speed Slow to Fast &XY Show Speed 128-254 Show Speed Slow to Fast reset 64CH...
- Page 9 71-90 R 0,G 100%-0,B 100% 91-110 R 0-100%, G 0, B 100% 111-130 R 100%,G 0, B 100%-0 131-150 R 100% ,G 0-100% ,B 0-100% 151-170 R 100%-0 , G 100%-0 , B 100% 171-200 R 100%,G 100%, B 100% 201-205 Color 1 206-210...
- Page 10 76-80 Show14 81-85 Show15 86-90 Show16 91-95 Show17 96-100 Show18 101-105 Show19 106-110 Show20 111-115 Show21 116-120 Show22 121-125 Show23 126-130 Show24 131-135 Show25 136-140 Show26 141-145 Show27 146-150 Show28 151-155 Show29 156-160 Show30 161-165 Show31 166-170 Show32 171-175 Show33 176-180 Show34 181-185...
- Page 11 White1 0-255 0-100% 21CH Function DMX Value Description Tilt 0-255 0-100% Tilt Fine 0-255 0-100% Zoom1 0-255 0-100% Zoom2 0-255 0-100% Dimmer 0-255 0-100% 0-19 No Effect Strobe 20-255 Strobe slow to fast 0-10 No Function 11-25 24-40 Green 41-55 Blue 56-70 White...
- Page 12 116-130 131-145 146-160 161-175 R+G+W 176-190 R+B+W 191-205 G+B+W 206-255 R+G+B+W Background Dimmer 0-255 0-100% 0-10 No Function 11-15 Show1 16-20 Show2 21-25 Show3 26-30 Show4 31-35 Show5 36-40 Show6 41-45 Show7 46-50 Show8 51-55 Show9 56-60 Show10 61-65 Show11 66-70 Show12 Show...
- Page 13 141-145 Show27 146-150 Show28 151-155 Show29 156-160 Show30 161-165 Show31 166-170 Show32 171-175 Show33 176-180 Show34 181-185 Show35 186-190 Show36 191-195 Show37 196-200 Show38 201-205 Show39 206-210 Show40 211-215 Show41 216-220 Show42 221-225 Show43 226-230 Show44 231-235 Show45 236-245 Sound1 246-255 Sound2 0-127...
- Page 14 Red2 0-255 0-100% Green2 0-255 0-100% Blue2 0-255 0-100% White2 0-255 0-100% … …… … …...
