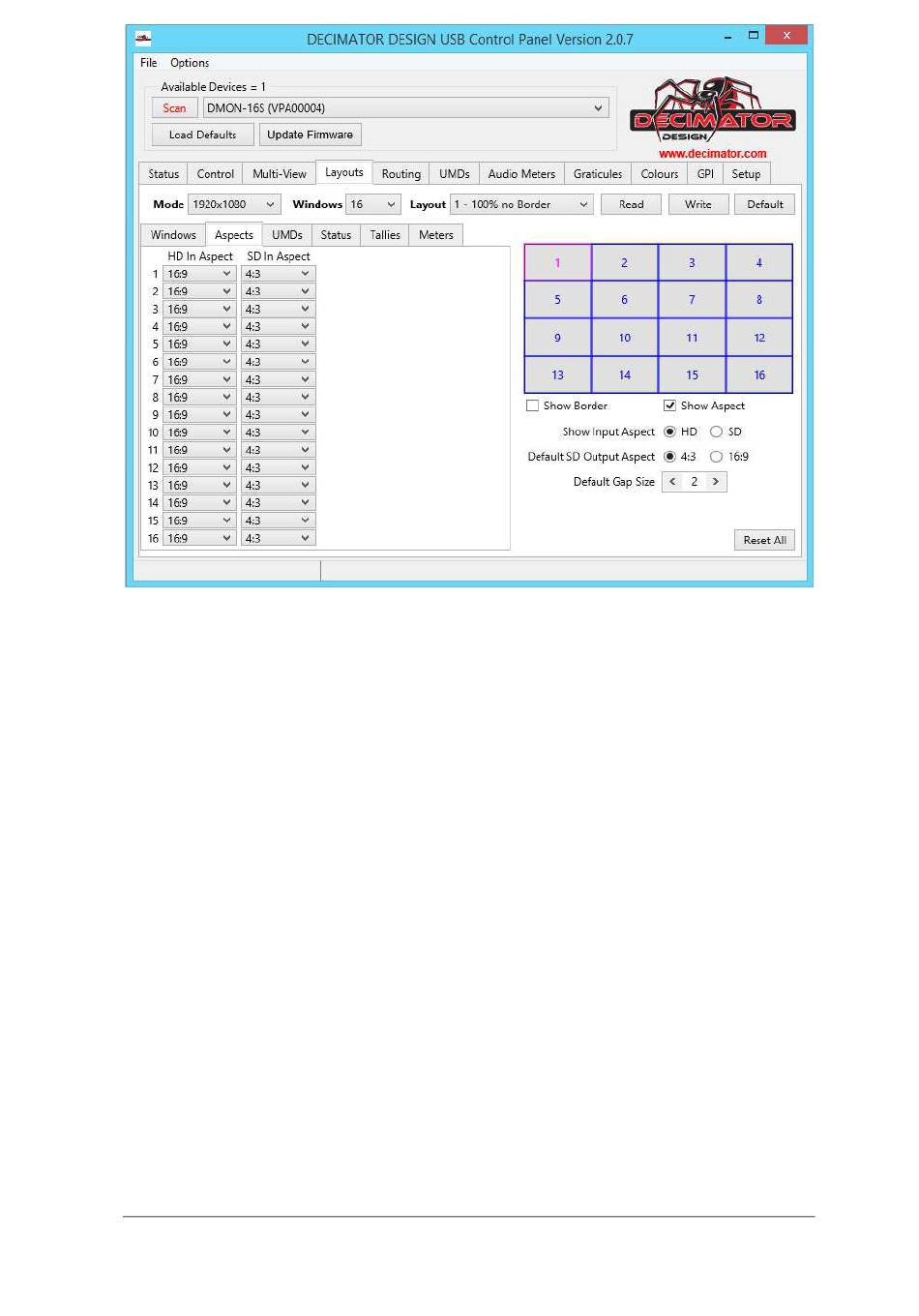

4.2 Layout Aspects tab
The Aspects tab allows the user to set the aspect ratio of any of the inputs and allows the user to set the
aspect ratio of the input when the signal is SD or HD.
If the input is a HD signal the available options are:
FL; fill the entire window with the input image.
16:9; the Input image will be displayed as 16:9 in the window.
If the input is a SD signal the available options are:
FL; fill the entire window with the input image
16:9; the Input image will be displayed as 16:9 in the window.
4:3; the Input image will be displayed as 4:3 in the window.
DMON‐16S USB CONTROL PANEL MANUAL V2.0.7 with Firmware V1.3
17
Copyright © 2017 Decimator Design Pty Ltd, Sydney, Australia E&OE
