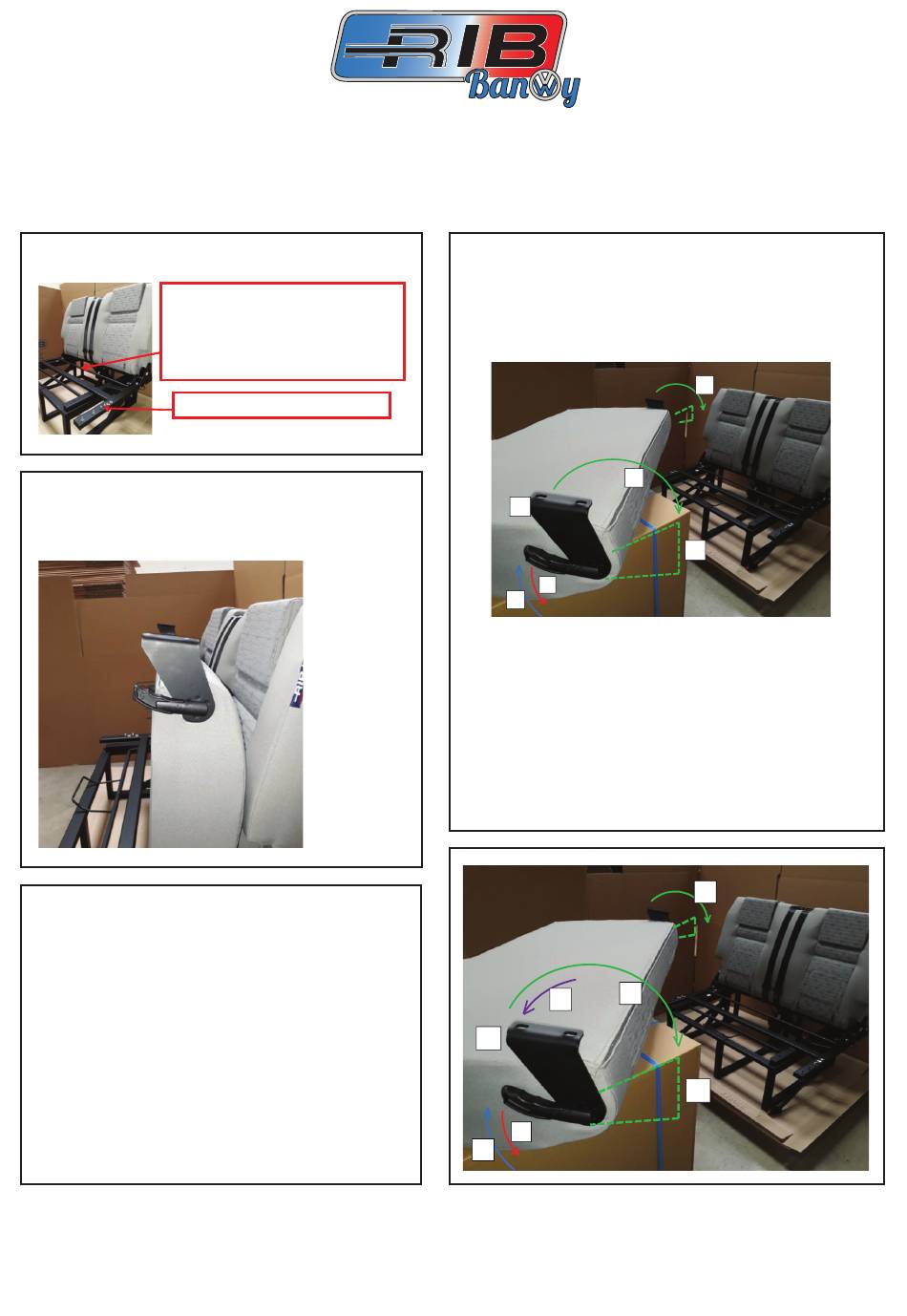

Assembly of ALTAIR 3P / NEPTUNE 3P Handle on axle
(Left Hand Side handle version)

1: Raise the Backrest

Backrest in sleeping position
- Pull up the bar
- Initiate The Rotation Forward
- Release the bar
Remove the nuts and washers
3: Approximate alignment of the triangular
plates in position "B"

4: WHAT TO DO IN CASE OF BLOCKED PLATE

1 – Press the release lever and hold it in position
2 – Bring back the hinge on handle side to the
position "A"
3 – Rotate the triangular plate of the handle
simultaneously with the opposite plate, up to
position "B"
USE TWO PEOPLE IF NECESSARY
4 – Release the handle when the 2 triangular
plates are well aligned in position "B"
FR O M

2: Assembly of the seat cushion

- Remove the cover and the protection-cardboard
around articulation.
- Rotate the hinge plates of the seat.
A
1
3
ATTENTION: NEVER FORCE THE MECHANISM!
1 – Press the release lever and hold it in position
2 – Rotate the triangular plate of the handle
simultaneously with the opposite plate, up to
position "B".
3 – Release the handle when the 2 triangular
plates are well aligned in position "B"
2
A
1
4
2
2
B
3
3
B
PAGE 1 - 2
