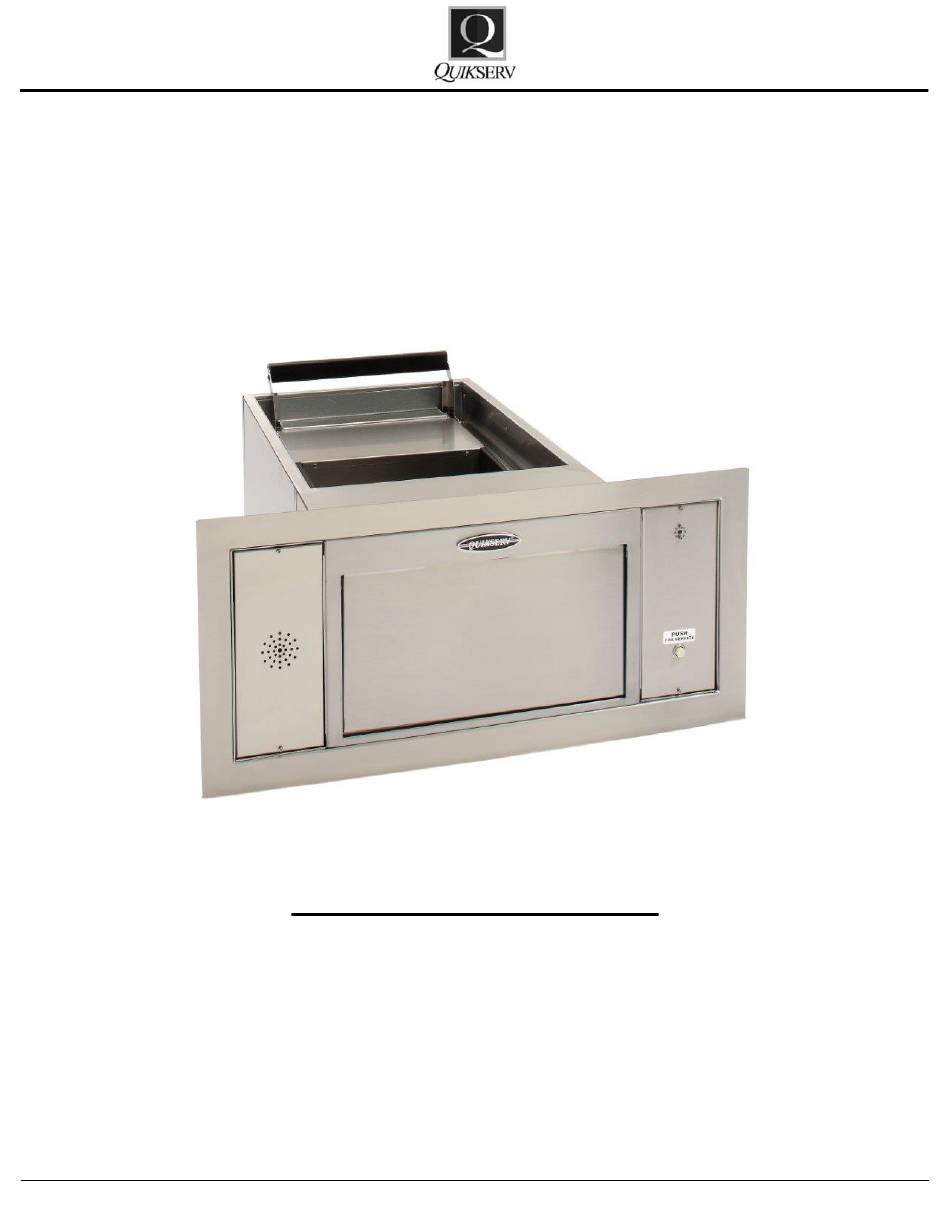

- Page 1 Serial Number 4210 & Up QSP-713S Service Manual Serial Number 4210 & Up Click the Procedure to View Operation and Maintenance Procedures Disassembly Procedures for QSP-713S Replacement Parts Warranty Service Policy Quikserv Corp. quikserv.com • -800-388-8307 • Fax (73) 849-5708...
- Page 2 QSP-713S Service Manual Serial Number 4210 & Up QSP-713S Operation and Maintenance Procedures Operation and Maintenance Procedures QSP-713S Operation Procedures • Unlock all locking mechanisms and ensure that drawer is free of obstructions. • Operate the drawer and return to closed position.
- Page 3 QSP-713S Service Manual Serial Number 4210 & Up Disassembly Procedures for QSP-713S Remove four screws holding back panel of Pull liner back through the back of drawer and drawer. Remove back panel. remove from unit. Push drawer to the open position. Remove the Special Note: Ensure the handle clip is under four screws that hold the liner to the slide rails.
- Page 4 QSP-713S Service Manual Serial Number 4210 & Up Parts Break Down Key No. Part No Description 8007 Speaker 8024 Microphone 8026 Call Button 8001 Slide Rails 8307 Handle 8052 Latch Catch Quikserv Corp. quikserv.com • -800-388-8307 • Fax (73) 849-5708...
- Page 5 Warranty Service Policy . Quikserv Corp. MUST be notified of a war- 7. Quikserv Corp. needs to be notified of any ex- ranty situation before any work is performed. tra parts - either to be sent back or to be kept Otherwise, Quikserv Corp.
