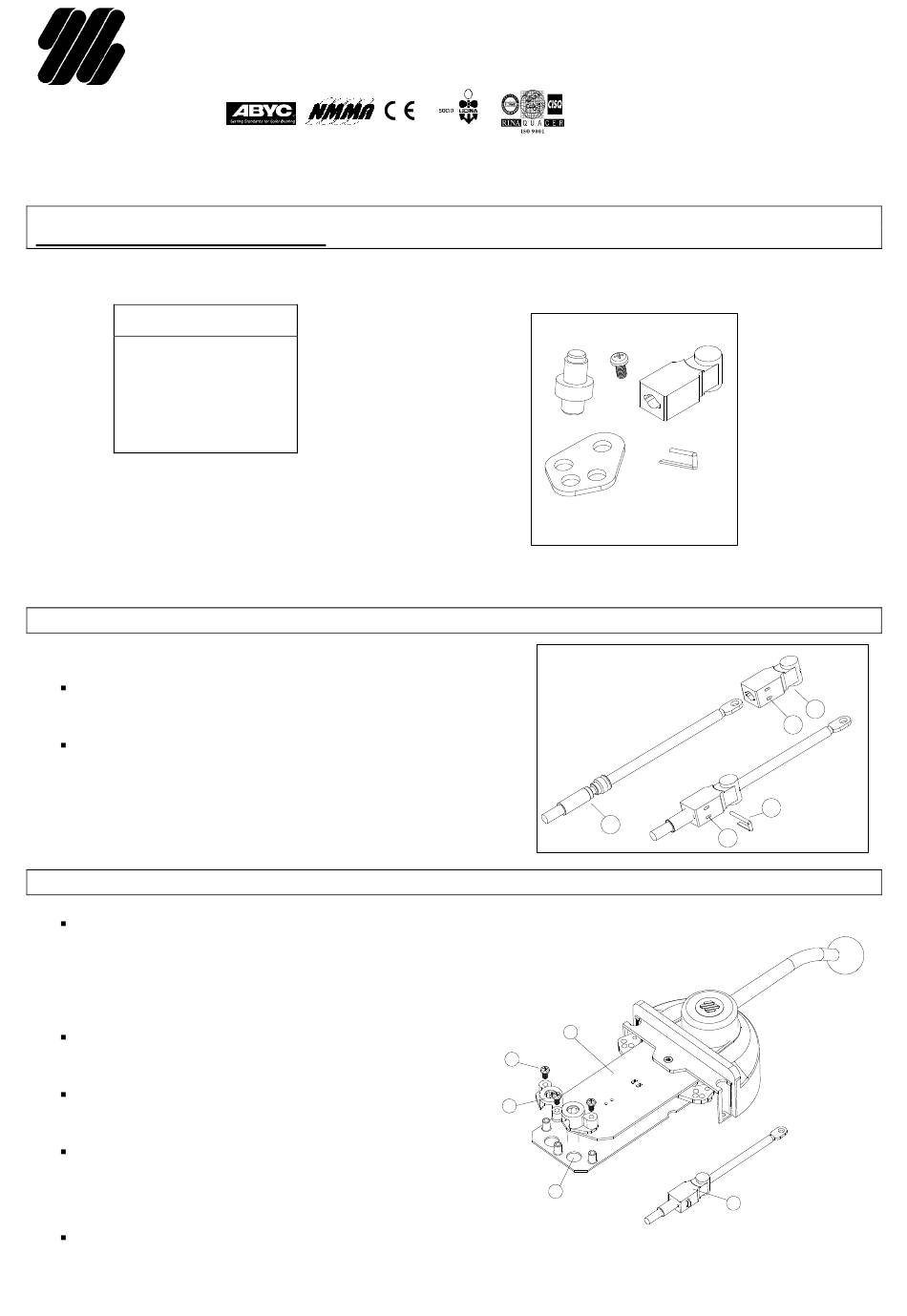

Ultraflex K65 Installation Instructions

ULTRAFLEX
INSTALLATION INSTRUCTIONS
NOTICE TO BOAT MANUFACTURER OR INSTALLER: THE FOLLOWING INSTRUCTIONS CONTAIN
IMPORTANT SAFETY INFORMATION AND MUST BE FORWARDED TO THE OWNER OF THE VESSEL
kit K65
A pin (2x);
B screw M5x12 (2x);
connector (
C
D retain plate (2x);
F split pin (2x);
Kit K65 for Ultraflex cables C36 and MACH 36 to use with the Two Lever B322-B324.
STEP 1 Connector Installation on the Cable.
Insert the connector (C) on the end fitting (1) and align
the slot (X) with the groove of the end fitting.
Insert the split pin (F) in the slot (X) of the connector and
fold its end.
STEP 2 Control Lever Shift And Throttle Cable Connection
After separating the two boxes, install the shift and
throttle cable: connect the shift cable to the box of
the black lever knob, the throttle one to the box of the
red lever knob.
Remove the cable clamp (4) from the plate (6)
loosing the screws (3).
Mount the cable making sure the cylinder of the
connector (C) will be placed inside the plate hole (5).
Re-mount the cable clamp (4) on the plate (6)
aligning the cylinder of the connector (C) with the
hole of the cable clamp.
Fix the cable clamp (4) to the plate (6) with the screws (3).

Content of the kit:

2x);
A B
D
1
6
3
4
4
1
K65
C
F
C
X
F
X
C
Drw.22652 22/2/2006
