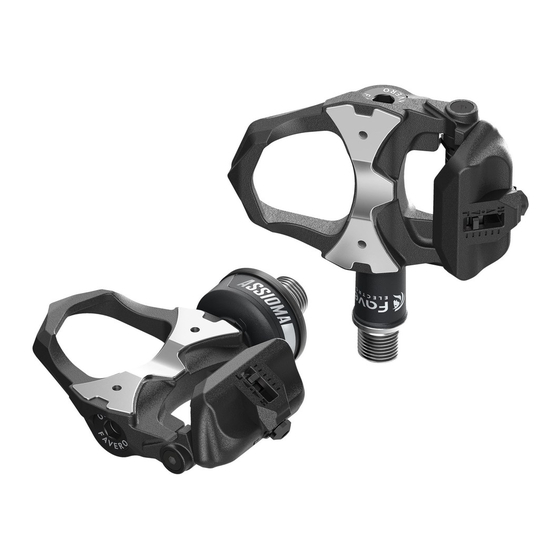

Summary of Contents for Favero Electronics ASSIOMA UNO
Page 1

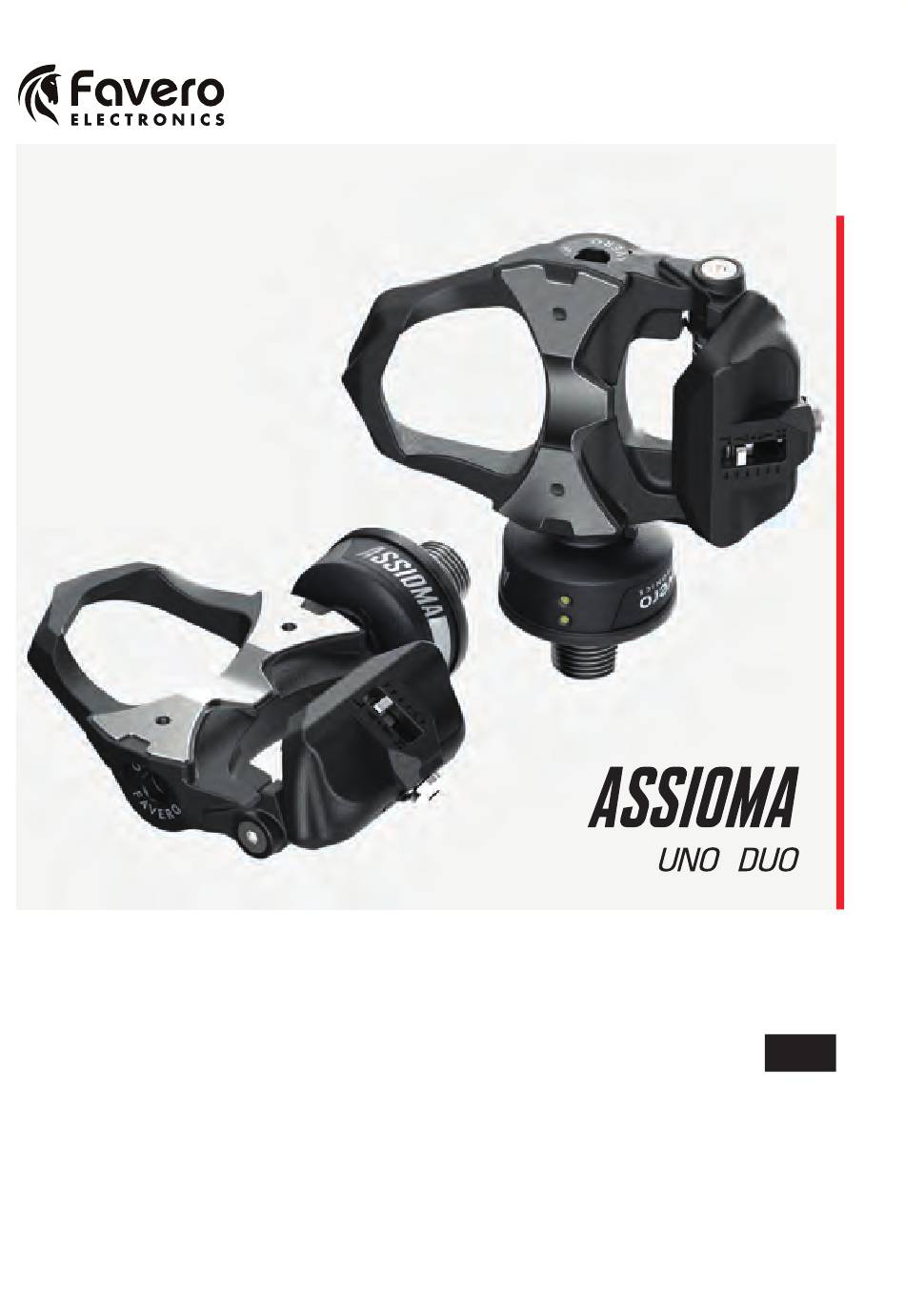

Art. 772-01 ASSIOMA UNO cycling power meter Art. 772-02 ASSIOMA DUO cycling power meter User manual Manuale d’uso Bedienungsanleitung...
Page 2
7. Using assioma for the first time on road or rollers (Chap. 11). Manual calibration is required at first installation and any time assioma is moved between bikes otherwise data may not be displayed correctly. FAVERO Electronics - 0259-0902A Assioma user manual _Rev21 - EN-IT-DE...
10. Manual and automatic calibration (zero-offset) 11. Using Assioma for the first time on road or rollers 12. Battery charge 13. Transforming Assioma UNO into Assioma DUO 14. removing the pedals 15. Reinstalling the pedals (on another bicycle) 16. Compatible bike computers 17.
E N G L IS H 2. Package content • assioma pair of pedals with sensor (1 sensor for Assioma UNO, 2 sensors for Assioma DUO). EU, US, UK, AU • battery charger with plug adaptors ( IEC Types C, A, G ,I ).
If assioma does not appear in the search section, make sure that it is not already connected via Bluetooth to another device (e.g. bike computer). For more information, read the FAQs on the website: cycling.favero.com. FAVERO Electronics - 0259-0902A Assioma user manual _Rev21 - EN-IT-DE...
Tighten the pedal to the crank-arm using the supplied 8 mm hexagonal wrench at a tightening torque of about 35-40 Nm (25-30 ft lb), a standard torque for the tightening of many pedals. If the crank-arm producer specifies a different tightening torque, apply it. FAVERO Electronics - 0259-0902A Assioma user manual _Rev21 - EN-IT-DE...
4÷6 Nm (3÷4.5 ft lb), as for most of the cleats on the market. Fixing screws Washers Cleat Tightening torque: 4÷6 Nm (3÷4.5 ft lb) Black cleats are also available for separate purchase (float 0°), Art. 771-40. FAVERO Electronics - 0259-0902A Assioma user manual _Rev21 - EN-IT-DE...
Page 8
If the distance between the sensor and the shoe is less than 2 mm, move the cleat to the most appropriate position or insert spacer Art.771-45 between the cleat and the shoe sole. ≥ 2 mm Shoe Cleat Assioma FAVERO Electronics - 0259-0902A Assioma user manual _Rev21 - EN-IT-DE...
Bluetooth bike computers and other devices with Cycling Power Profile (CPP), the left pedal can be recognized by an L that follows the identification number. FAVERO Electronics - 0259-0902A Assioma user manual _Rev21 - EN-IT-DE...
Assioma app or bike computers/third-party-apps. By doing so, the values registered by the last automatic calibration will be overwritten by those of the manual one. FAVERO Electronics - 0259-0902A Assioma user manual _Rev21 - EN-IT-DE...
50-hour life span. The capacity of each battery is tested during the manufacturing process. The battery life is very long thanks to the low number of battery charges required. FAVERO Electronics - 0259-0902A Assioma user manual _Rev21 - EN-IT-DE...
Page 12
LEDS will blink every 0.5 seconds. Recharging a completely discharged battery takes about 6 hours. Recharge at a temperature ranging between 5°C and 40°C. Beyond this range, recharging is blocked to protect battery functionality. FAVERO Electronics - 0259-0902A Assioma user manual _Rev21 - EN-IT-DE...
13. Transforming Assioma UNO into Assioma DUO Assioma UNO measures the power only on the left pedal. It is possible to buy the right pedal with the sensor (art. 772-51) at a later date and therefore pass to a system equal to Assioma DUO.
Do not attempt to open or disassemble the sensor as you may damage it and invalidate the warranty. Assistance must be carried out only by a specialized FAVERO Electronics - 0259-0902A Assioma user manual _Rev21 - EN-IT-DE...
E N G L IS H technician, authorized by Favero Electronics. 20. Spare parts For more information on spare parts, visit the website cycling.favero.com. 21. Product troubleshooting Over- or underrated power • Perform manual calibration (Chap. 10). • Check if there is any contact between the shoe, or shoe cover, and the sensor (Chap.
The manufacturer reserves the right to improve or modify the product and this manual without any obligation of prior notice to private users or organizations. assioma® is a registered trademark of Favero Electronics. LOOK and Kéo trademarks belong to LOOK Cycle International. All other trademarks and registered trademarks are the property of their corresponding owners.
Page 17
A person exceeding the weight limit herein specified will use this product at his/her own risk. This product is ANT+ certified and complies with the ANT+ specifications: www.thisisant.com/directory This product is certified to be a Bluetooth low energy technology product. FAVERO Electronics - 0259-0902A Assioma user manual _Rev21 - EN-IT-DE...
