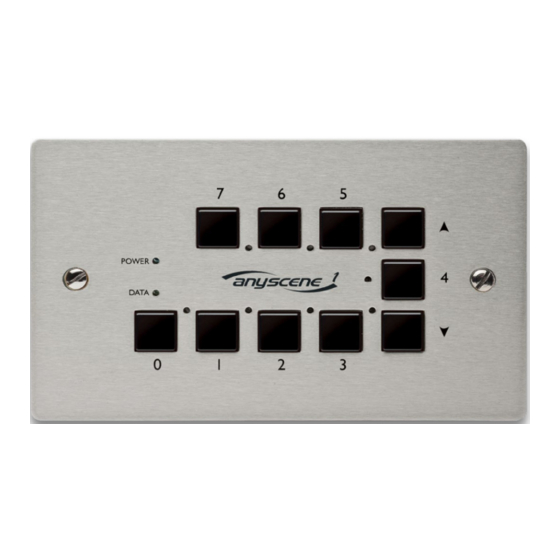

Installation and Operation Guide for the Anytronics Anyscene 1 Memory Unit
This equipment should only be installed by competent electricians, the responsibility for safe
and correct installation of the system rests with the installer and these notes are intended only
for guidance.
1. Overview and Operation ................................................................................................ 2
2. Unit Mounting ................................................................................................................. 2
3. Electrical Connections ................................................................................................... 3
4. Data Connections .......................................................................................................... 4
5. DMX Requirements ....................................................................................................... 4
5.1. DMX Loading ........................................................................................................................ 4
5.2. DMX Wiring .......................................................................................................................... 4
6. Unit Configuration .......................................................................................................... 5
7. Programming ................................................................................................................. 5
8. Specification .................................................................................................................. 6
Units 5 & 6 Hillside Industrial Estate
London Road, Horndean,
Hampshire, PO8 0BL
Tel +44 (0)23 9259 9410
Fax +44(0)23 9259 8723
Contents
Page 1 of 6
AT1042 Issue 1
Anyscene 1 Operating
Instructions
Advertisement
Table of Contents
Related Manuals for anytronics Anyscene 1
Summary of Contents for anytronics Anyscene 1
- Page 1 Installation and Operation Guide for the Anytronics Anyscene 1 Memory Unit This equipment should only be installed by competent electricians, the responsibility for safe and correct installation of the system rests with the installer and these notes are intended only for guidance.
- Page 2 ‘Blackout’ function in a double pattress housing suitable for use in architectural applications. Only a single Anyscene 1 can be used within an installation and if control at multiple locations is required the installer should use the Anyscene 512 range.
- Page 3 3. Electrical Connections The Anyscene requires a +5V DC supply capable of suppling up to 50 mA. If used with other Anytronics equipment the required supply will be supplied through the Cat5 cable and the system should be connected as follows, If used with other equipment an AS180 PSU should be used to supply power to the ...
- Page 4 5.1. DMX Backup With the power applied, the Anyscene 1 will power up and, if no input DMX data is detected within 2 seconds, it will start to output DMX data from the last used scene. If another...
- Page 5 Power the Anyscene 1, the power and yellow data LED should be lit e) Use the DMX programming source to adjust the required channels f) Press and hold the button on the Anyscene 1 where the current scene should be saved g) The Anyscene 1 data LED will flash twice to show the data has been saved.
- Page 6 8. Specification Supply: +5V DC 50mA via Category 5 DMX cable from AS180 ot Anytronics Dimmer Connections: o DMX output via RJ45 connectors (Internal) o Data received from DMX addresses 1 - 32 o Data output to DMX addresses 1 - 32 ...
